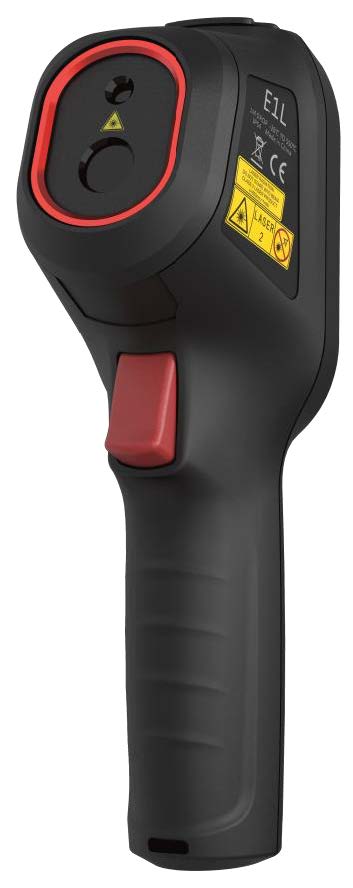

The E1L thermal imager has been replaced by the new Eco and Eco-V models with improved performance.

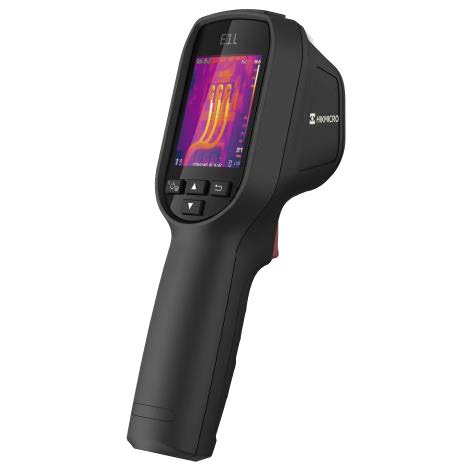

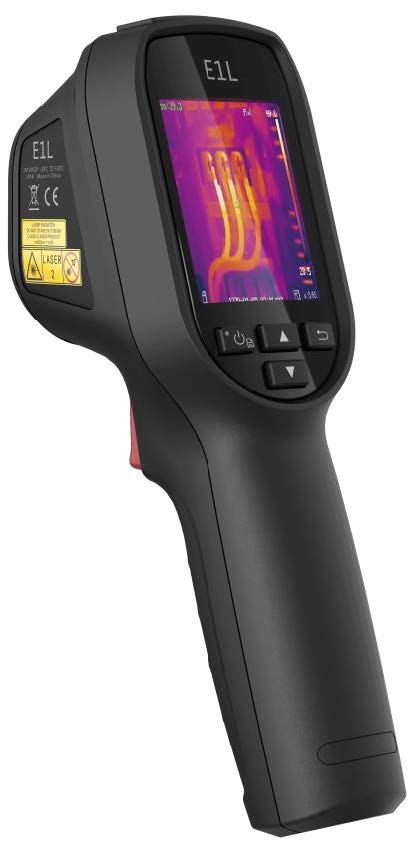

The handheld thermography camera is based on the thermal technology, specially designed for the needs of temperature measuring applications. People can quickly troubleshoot faults on-site.
Key Feature

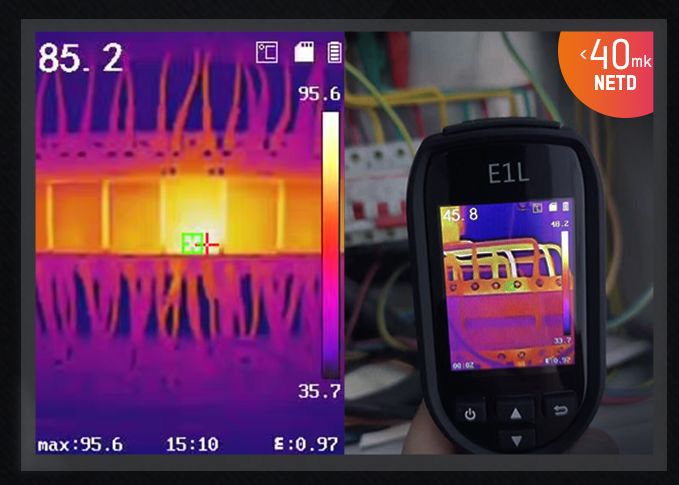

High Image Quality – A highly sensitive VOx detector (NETD < 40 mK) provides a distinct thermal vision of the target.
Rugged & Durable Design – IP54 rated for protection against water and dust. Featuring 2-meter (6.6ft) drop protection, suitable for industrial use.
Light Weight Easy To Carry – Compact design, easy to carry.

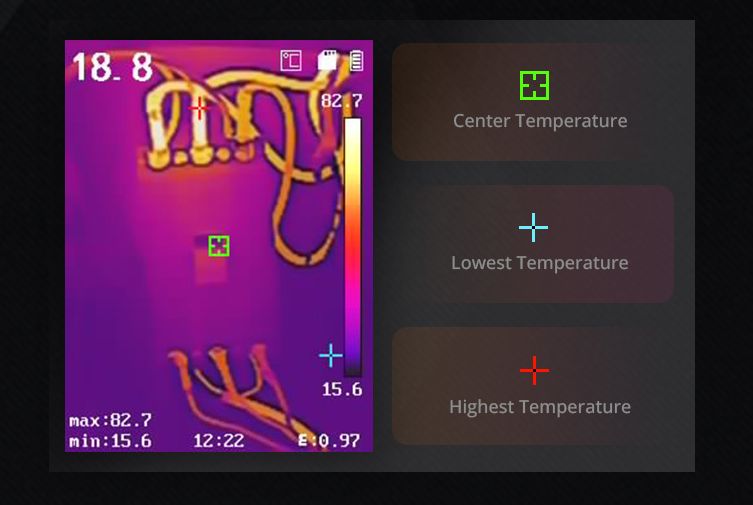

Quick Temperature Measurement – Full screen measurement in virtue of different presets checks everywhere at the very first sight. Measurement Presets: Center Spot, Hot Spot, Cold Spot, Off.
Laser Pointer – The Laser Pointer helps show the position of the center point on the actual object.
Long Battery Life – Reliable 8 hours continuous running.

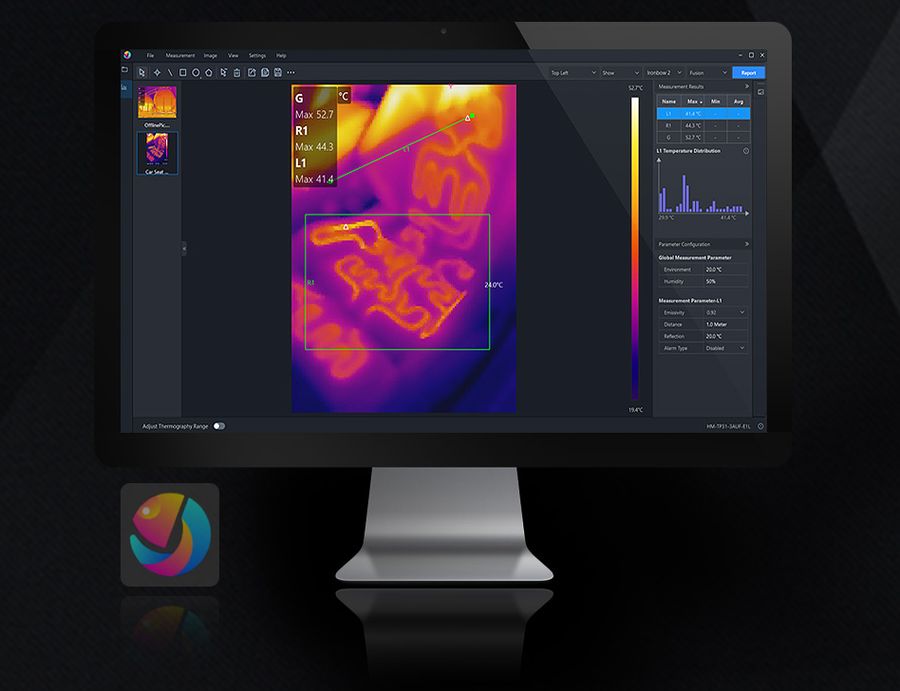

Temperature Analysis Software – HIKMICRO Analyzer is a free software offering flexible ways, including points, lines, rectangles, circles, polygons to analyze thermographic information of captured pictures, and generate reports.
| Infrared Image | |
| IR Resolution | 160×120 (19,200 pixels) |
| NETD | < 40 mK (@ 25°C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 17 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 3.1 mm |
| F-number | F1.1 |
| Field of View (FOV) | 37.2° × 50.0° |
| Spatial Resolution (IFOV) | 5.48 mrad |
| Min. Focus Distance | 0.15 m (0.49 ft) |
| Focus Mode | Focus Free |
| Image Display | |
| Display | 240 × 320 Resolution, 2.4″ LCD Screen |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
| Accuracy | Max (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot |
| Level and Span Mode | Auto |
| Data Storage and Communication | |
| Storage Media | Removable 8 GB Micro SD Card |
| Image Storage Capacity | Approx. 120,000 Images |
| General | |
| USB Interface | Micro USB |
| Laser | Yes, Class II |
| Battery Type | Rechargeable Li-ion battery |
| Battery Charging Time | Approx. 4 hours fully charged |
| Battery Operating Time | Approx. 8 hours |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft) |
| Working Temperature Range | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 350 g (0.77 lb) |

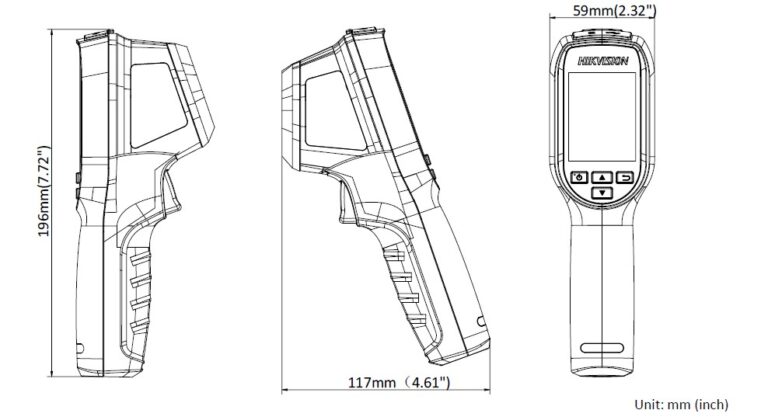

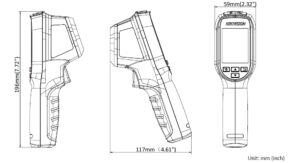

| Dimension | 196 × 117 × 59 mm (7.7 × 4.6 × 2.3 in) |
| Tripod Mounting | UNC ¼”-20 |
Model Number: HM-TP31-3AUF-E1L
The warranty for the HIKMICRO E1L thermal imager is:
The warranty for additionally purchased accessories is:
Extended Warranty Service
The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.
HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.
You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.
The extended warranty does not included the thermal detector and battery.
More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».
| Photo | Model | Description |
|---|---|---|
|
HM-2925ZJ-TM01-BRACKET | Tripod Mounting Bracket |
|
HM-B01-POUCH | POUCH |
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO E1L using the special form.
