The Thermographic Network Auto-Focus Box Camera with small size, low power consumption and simple integration realizes real-time high-accuracy object temperature measurement.
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 640×512 |
| Pixel Pitch | 17 μm |
| NETD | ≤ 35 mK (@25° C,F# = 1) |
| Focal Length | 25 mm |
| Focus Mode | Semi-auto & Manual |
| IFOV | 0.68 mrad |
| Aperture | F 1.0 |
| Field of View | 25° x 20° (H x V) |
| Min. Focusing Distance | 0.5 m |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 150°C, 0°C to 650 °C |
| Temperature Accuracy | Max. (± 2°C, ± 2%) |
| Measurement Presets | 3 temperature measurement rule types, 10 rules (max. 10 points, max.10 regions, and max. 1 line). *The total No. of rules enabled at the same time can’t exceed 10. |
| Video and Image | |
| Main Stream | 50 fps(640 x 512) |
| Video Compression | H.265/H.264/MJPEG |
| Color Palettes | 15 options: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Speia, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue |
| Digital Zoom | 2x, 4x, 8x |
| Radiometric Capture | Yes |
| Radiometric Infrared-Video Streaming (Compressed) | Over RJ45, 640 x 512@50 fps |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, SFTP, SRTP |
| Network Storage | NAS (NFS, SMB/CIFS) |
| API | MODBUS, ISAPI, Network SDK, Open Network Video Interface (Profile S, Profile G) |
| Simultaneous Live View | Up to 20 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security | User authentication (ID and PW), MAC address Binding, HTTPS Encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), Access Control, IP Address Filtering, Illegal Login, HDD Full, HDD Error, Network Disconnected |
| Client | HIKMICRO Studio |
| Interface | |
| Alarm Input | 1, alarm input (0-3.3 VDC) |
| Alarm Output | 1, alarm output; NC, level quantity |
| Alarm Action | Preset/patrol scan/alarm record/relay output/smart capture/FTP upload/email linkage |
| Communication Interface | 1, RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface 1, RS-485 interface (ModBus available) |
| Analog Output | 1, CVBS output |
| General | |
| Menu Language | English |
| Power Supply | 10-30 VDC |
| Power Consumption | 4.8W Max |
| Working Temperature/Humidity | -20 °C to 50 °C 90% or less |
| Protection Level | IP40 |

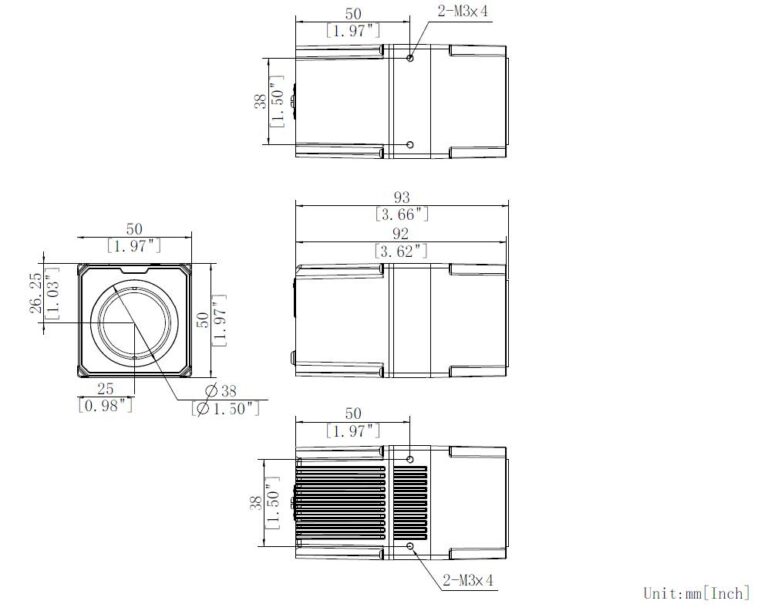

| Dimensions | 93 mm x 50 mm x 50 mm ( 3.66″ x 1.97″ x 1.97″) |
| Mount | M3 |
| Material | Aluminum alloy |
| Weight | Approx. 344 g (0.76 lb.) |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| HM-TD2A67T-25/Q | 640x512, 25 mm, autofocus, 25°×20°, 50fps, -20~550℃, ±2℃/±2%, Modbus TCP/RS485, Alarm I/O, Power in DC 12V | В наличии | from 5 500$ |
-
+
|
