Made in China. brand HIKMICRO, model HM-TD3118T-1/Q
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
In stock
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

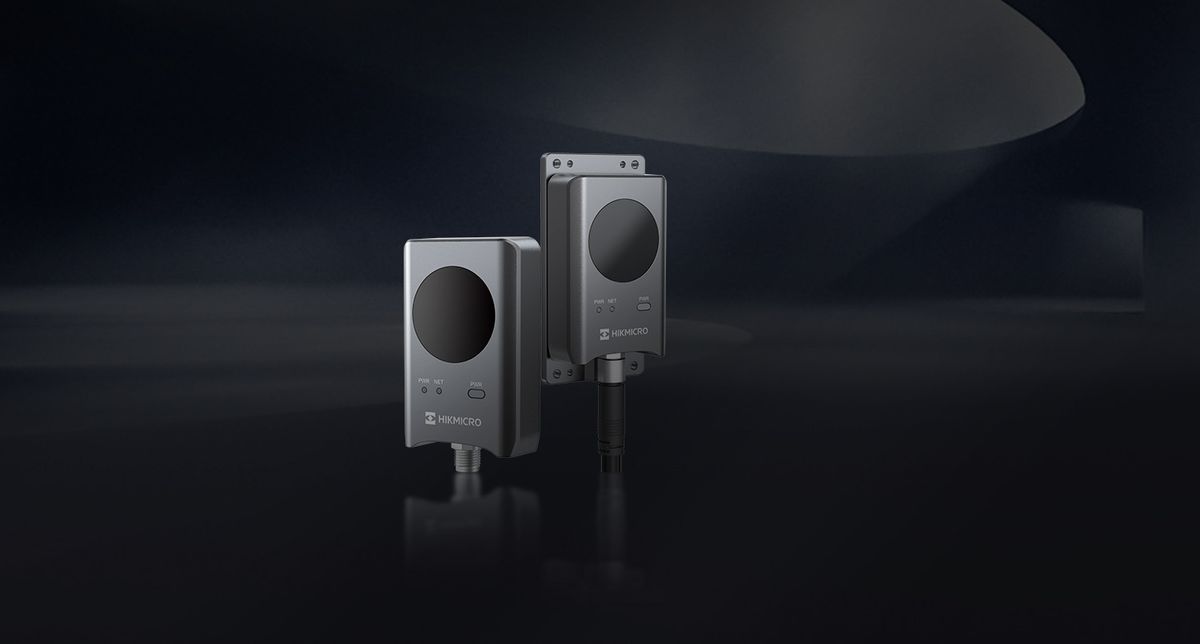

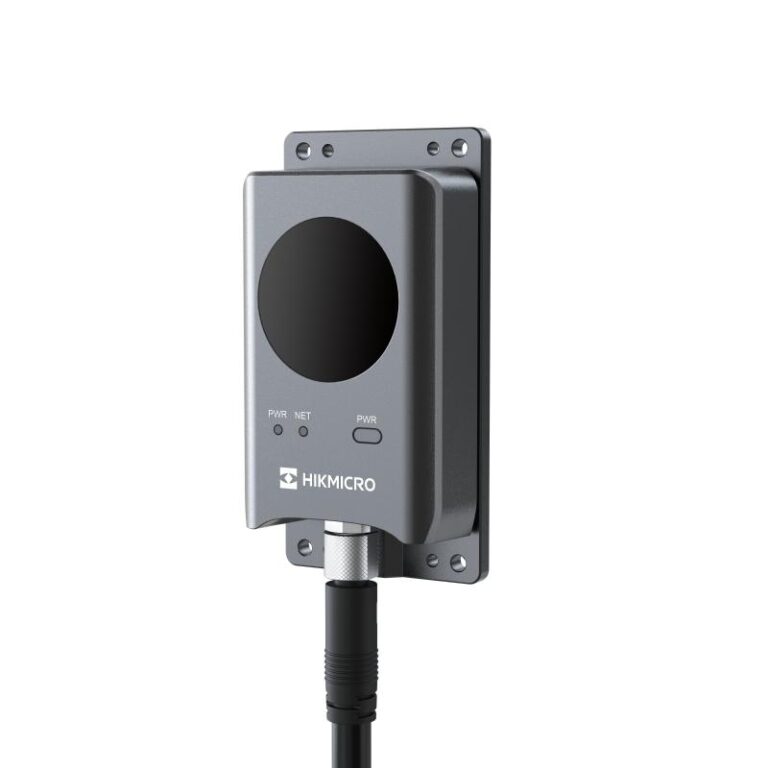

The Thermographic Cube Camera is a temperature measurement device which is equipped with a thermal lens.
It is equipped with high-sensitivity IR detector and high-performance sensor. The device is able to measure object’s temperature at a high accuracy in real time. It is applied to electric system, and industrial automation, etc, for fire prevention. The pre-alarm system helps you discover unexpected events immediately and protects your property.
Temperature Measurement – Device detects the real-time temperature all the day, and display it on live view.
Temperature Exception Alarm – Device outputs alarm when the temperature is higher than the setting alarm threshold value.
Image Adjustment – Device can correct the nonuniformity of the image and improve the image quality.
Application
Thermographic Cube Camera supports 433MHz wireless transmission, which makes it more friendly to use in the application scenarios where cable routing is inconvenient. The device receives temperature data and alarm from external temperature detectors with 433MHz wireless transmission and uploads the data to the center. When sending data to the center client (iVMS-4200), the device supports a wireless way (with the help of a gateway that supports 433MHz transmission) and a wired way.
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Pixel Interval | 12 µm |
| Response Waveband | 8 µm to 14 µm |
| NETD | Less than 40 mK (@ 25 °C.F#=1.1) |
| IFOV | 13.08 mrad |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, DHCP, Email, ISUP, PPPOE, NAS |
| API | ISAPI SDK |
| Simultaneous Live View | Up to 20 channels |
| Security | User authentication (ID and PW), HTTPS encryption, access control. IP address filtering |
| Video and Audio | |
| Main Stream | Thermal: 25 fps (1280 x 720, 704 x 576, 640 x 480, 352 x 288, 320 x 240) |
| Video Compression | Main stream: H.265/ H.264 Sub-stream: H.265/H.264/MJPEG |
| Sub Stream | Thermal: 25 fps (704 x 576, 352 x 288, 320 x 240) |
| General | |
| Protection Level | IP67 Standard TVS 6000 V lightning protection, surge protection, voltage transient protection |
| Weight | Approx. 180 g (0.39 lb) |
| Dimension | 102 mm x 51.2 mm x 27.5 mm (4.0″ x 2.0″ x 1.1″) |
| Video and Image | |
| Color Palettes | 15 options: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Spela, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue |
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO HM-TD3118T-1/Q using the special form.
You can buy HIKMICRO HM-TD3118T-1/Q in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. HIKMICRO HM-TD3118T-1/Q price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
