ULM-200C is a non-contact ultrasonic water level meter with an integrated sensor and controller design. The user-centered design makes it easy to operate and requires less installation time.
Made in South Korea. brand ISTEC, model ULM-200C
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

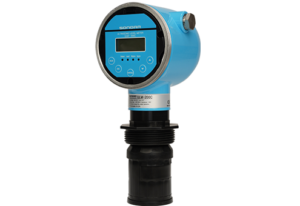

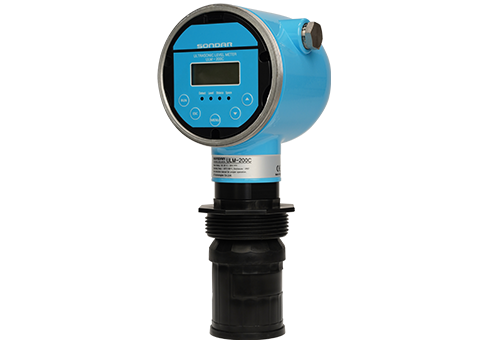

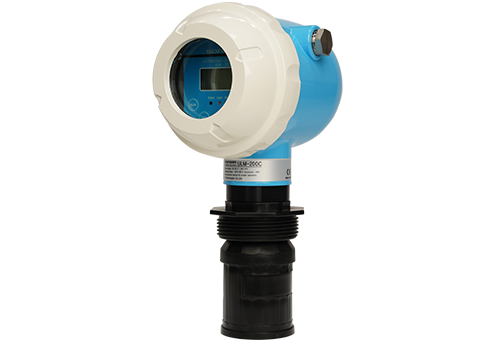

The ULM-200C is a non-contact ultrasonic level meter with an integrated sensor and controller design. It has a measuring range of 8 meters and operates on a 2-wire DC 24V loop system. The ULM-200C is designed with explosion-proof construction, featuring an aluminum die-cast housing. Its user-centered design ensures easy operation and reduced installation time. Equipped with advanced signal processing technology, the ULM-200C provides reliable level information and is an optimal solution for various industrial applications.
Product Features

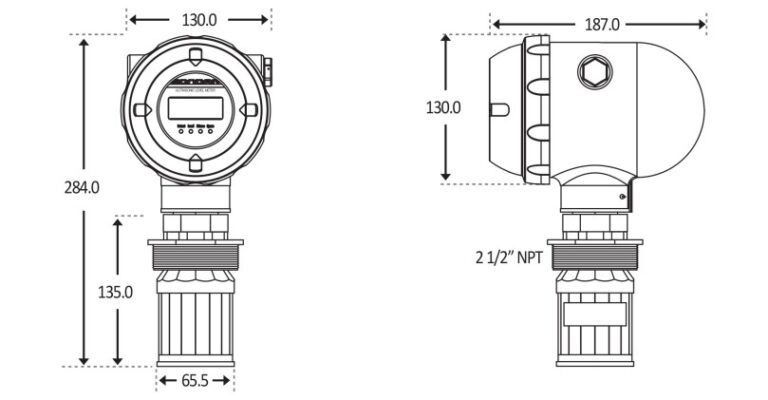

| Dimension | 117(D)×209(H) mm |
| Mounting Specification | 2-1/2″ NPT |
| Weight | Approx 3.5 kg |
| Housing Material | Aluminum Die Casting |
| Protection Rating | IP67 |
| Operating Temperature | -20℃ to 70℃ |
| Measuring Range | 0.3~8 m |
| Accuracy | 0.2% of measured range |
| Resolution | 1 mm |
| Beam Angle | 8° |
| Response Speed | 0.1 m/min – 100 m/min, Adjustable |
| Temperature Compensation | Built-in temperature sensor |
| Analog Output Display | 4~20mA, 550Ω at DC24V, 5 Digit Numeric LCD |
| Power Supply | DC20~30V |
| Current Consumption | 0.022A max |
| Certification | CE |
| * Product specifications are subject to change without notice | |
| ULM-200C Ordering Code | |
| Measuring Distance | |
| 1 | 8 meters |
| Power Supply | |
| B | DC 20 to 30V (Standard) |
| Communication Type | |
| N | None (Standard) |
| Flange | |
| 0 | none |
| 1 | 80A |
| 2 | 100A |
| 3 | 150A |
| 4 | 200A |
| T* | Custom value |
| Flange Standard | |
| D | DIN |
| A | ANSI |
| J | JIS |
| Extension Pipe Standard | |
| N | none |
| T* | Custom value |
| ULM20C- | |
You can request the necessary certificates, documentation, instructions and user guide for ISTEC ULM-200C using the special form.
