Apex Remote with pump models are available with either 0.1 CFM or 1.0 CFM airflow rates. The self contained vacuum pump includes HEPA filtered exhaust and will not contaminate the surrounding environment. Apex provides real time continuous data collection at a cost effective price per point offering.
Apex represents everything that is important in a world class Environmental Monitoring System. It is the Best-In-Class sensor and meets all the industry standards.
Apex represents everything important in a world-class Environmental Monitoring System. It is the Best-In-Class sensor and meets all the industry standards. The Risk Mitigation features of Self-Diagnostics virtually eliminate data errors.
Apex Remote with pump models are available with either 0.1 CFM or 1.0 CFM airflow rates. The
self-contained vacuum pump includes HEPA-filtered exhaust and will not contaminate the surrounding environment.
FEATURES

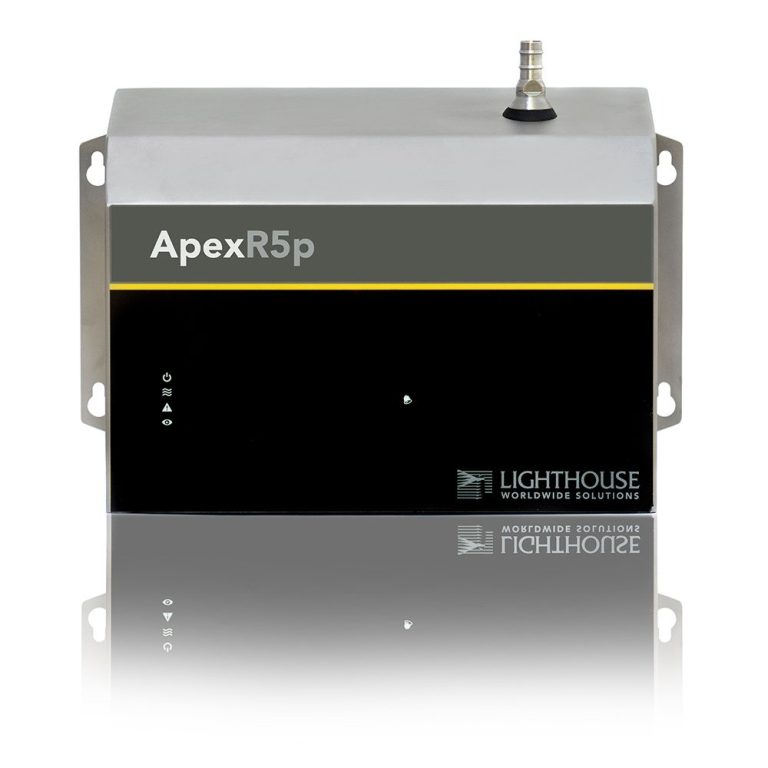

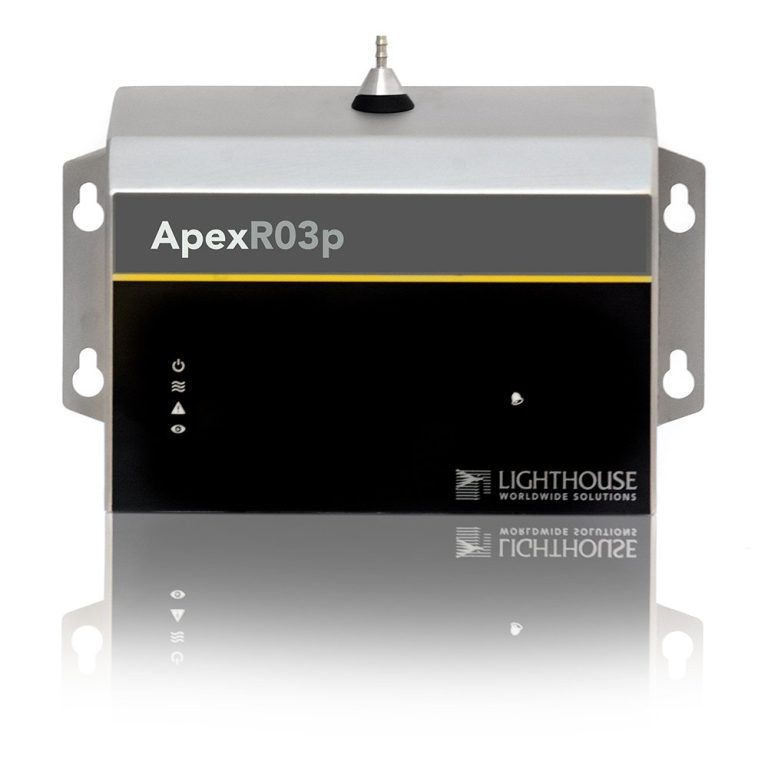

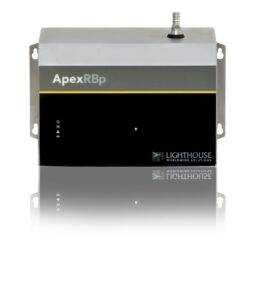

| Features / Models | ApexR3p | ApexR5p | ApexRBp | ApexR02p | ApexR03p | ApexR05p |
| Minimum Size Detection | 0.3 μm | 0.5 μm | 5.0 μm | 0.2 μm | 0.3 μm | 0.5 μm |
| Standard 2 channel sizes | 0.3, 0.5 μm | 0.5, 5.0 μm | N/A | 0.2, 0.3 μm | 0.3, 0.5 μm | 0.5, 5.0 μm |
| Optional 4 channel sizes | 0.3, 0.5, 1.0, 5.0 μm | 0.5, 1.0, 5.0, 10.0 μm | 5.0, 10.0, 50.0, 100.0 μm | 0.2, 0.3, 0.5, 1.0 μm | 0.3, 0.5, 1.0, 5.0 μm | 0.5, 1.0, 5.0, 10.0 μm |
| Additional Available sizes | 0.7, 3.0 μm | 0.7, 3.0 μm | 20.0, 25.0, 30.0 , 40.0 μm | 0.7, 2.0 μm | 0.7, 3.0 μm | 0.7, 3.0 μm |
| Flow Rate / Nozzle Size | 1 CFM (28.3 LPM), 3/8” inlet | 0.1 CFM (2.83 LPM), 1/8” inlet | ||||
| Weight | 6.3 lbs (2.9 kg) | 3.1 lbs (1.4 kg) | ||||
| Concentration Limits | 1,000,000 Particles/ft3@10% coincidence loss suitable for ISO classes 1-8 cleanrooms | 4,000,000 Particles/ft3@10% (137,200,000/m3) Coincidence loss suitable for ISO classes 1-8 cleanrooms |
||||
| Dimensions | 6.65”(h) x 9.13”(w) x 4.75”(d) [16.89 x 23.19 x 12.06 cm] | 4.87”(h) x 6.50”(w) x 3.26”(d) [12.37 x 16.51 x 8.28 cm] | ||||
| Communication | Ethernet or Serial. | |||||
| Modbus Protocols | TCP or RTU or ASCII | |||||
| Data Storage Records | 3 | |||||
| Self Diagnostics | Laser power supply, laser current, laser power, photo detector power supply, background voltage, photo detector health. | |||||
| Web Server | Remote access via web browser | |||||
| Validation Mode | Yes | |||||
| Alarm Light | Yes | |||||
| Enclosure | 316L Stainless Steel | |||||
| Power | 24 VDC 120W (ApexR3p, ApexR5p, ApexRBp), 24 VDC 25W (ApexR02p, ApexR03p, ApexR05p) | |||||
| Internal Vacuum Pump | 1.0 CFM (ApexR3p, ApexR5p ApexRBp), 0.1 CFM (ApexR02p, ApexR03p, ApexR05p) with HEPA Filtered Exhaust | |||||
| Light Source | Extreme Life Laser Diode | |||||
| Calibration | ISO 21501-4 Compliant and Accredited ISO 17025 | |||||
| Zero Count Level | < 1 Count / 5 minutes (meets specifications of JIS B 9921 and reporting requirements of ISO 21501-4 Annex C) | |||||
| Software | LMS Pro or LMS Xchange | |||||
You can request the necessary certificates, documentation, instructions and user guide for LIGHTHOUSE ApexR with Pump using the special form.
