Lighthouse’s Liquid Batch Samplers are designed to be user-friendly and intuitive for utilization. Most importantly, it is designed to be compliant to industry standards. For regulated applications to parts cleaning applications, the Lighthouse Batch Sampler will be the ideal choice for your liquid particle counting needs.

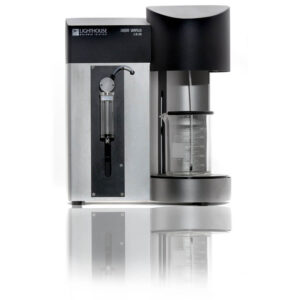

Made in USA. brand LIGHTHOUSE, model Batch Sampler
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Designed with functionality in mind, Lighthouse Liquid Samplers are integrated syringe samplers and optical particle counting systems with an easy-to-use Windows-based software interface. Following a quality standard of reliability and dependability, Lighthouse Worldwide Solutions developed the Liquid Samplers using the latest in laser optical particle counter technology.
Our Batch Samplers use a high accuracy syringe pump flow control system and a high sample volume sensor. It is a perfect tool for multiple batch sampling applications. The graphical user interface it easy to configure and operate. Data is automatically recorded and easily available in graph and tabular form in real-time. Reports can be preconfigured and printed at the touch of a key.
FEATURES
| Features / Models | LS20 | LS60 |
| Minimum Size Detection | 1.0 μm | 0.1 μm |
| Standard 8 channel sizes | 1.0, 2.0, 3.0, 5.0, 10.0, 15.0, 25.0, 50.0 µm | 0.1, 0.15, 0.2, 0.25, 0.3, 0.35, 0.4, 0.5 µm |
| Size Ranges | User definable 1.0 – 50.0 µm | 0.1 – 0.5 µm; 0.2 – 2.0 µm; 0.3 – 3.0 µm; 0.5 – 100.0 µm |
| Flow Rate | 20 ml/minute | 60 ml/min |
| Reports | Current USP, EP, JP, KP, CP and custom recipes | Current USP, EP, JP, KP, CP and custom recipes |
| Laser Source | Laser Diode | |
| Calibration | NIST Traceable | |
| Syringe Sizes | 10 ml, 25 ml | |
| Maximum Sample | 1 Liter | |
| Communication Mode | RS-485 MODBUS | |
| Wetted Components | Teflon (PFA), Quartz, Kalrez, Kel F, Polypropylene | |
| Stirrer | Magnetic with adjustable speed | |
| Connectors | RJ-45 | |
| Supporting Software | LS20 Software/ LS60 Software | |
| Enclosure | Stainless Steel | |
| Power | 100-240 VAC, 24 VDC | |
| Dimensions | 12.875”(l) x 8.75”(w) x 14.75”(h) [32.7 x 22.2 x 37.5 cm] | |
| Weight | 20.5 lbs (9.3 kg) | |
| Environmental Conditions | Operating: 50°F to 104°F (10°C to 40°C) / 20% to 95% non-condensing Storage: 14°F to 122°F (-10°C to 50°C) / up to 98% non-condensing |
|
| Minimum System Requirement | Windows 7TM or Windows 10TM compatible computer. | |
You can request the necessary certificates, documentation, instructions and user guide for LIGHTHOUSE Batch Sampler using the special form.
You can buy LIGHTHOUSE Batch Sampler in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. LIGHTHOUSE Batch Sampler price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
