LR-Cal 2911: pressure up to +7 bar / LR-Cal 2941: Vacuum up to -0,9 bar
Made in Germany. brand Leitenberger, model 2911 + 2941
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $453
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

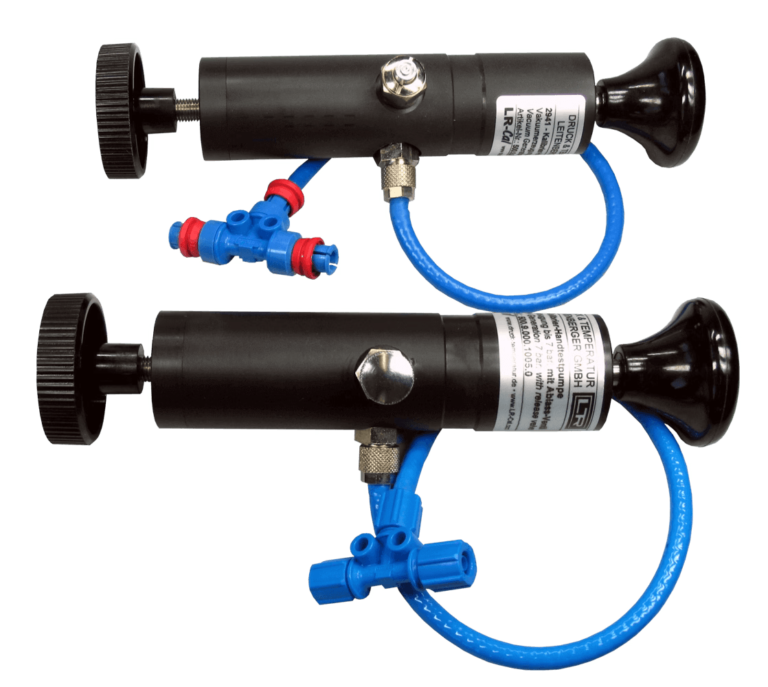

The calibration hand test pumps LR-Cal 2911 is used for pressure generation and the LR-Cal 2941 is used for negative pressure/vacuum generation for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments by comparison measurement. These tests can be carried out on a mobile basis, on site at the measuring point, or stationary in the laboratory or workshop.
If the measuring instrument to be tested and a sufficiently accurate reference measuring instrument are connected to the LR-Cal 2911 or LR-Cal 2941 calibration hand test pump via the T-piece supplied, the same pressure or vacuum acts on both measuring instruments when the pump is actuated. By comparing the two measured values at any pressure or vacuum values, it is possible to check the accuracy or adjust the vacuum gauge to be tested.
Despite their very compact dimensions, the LR-Cal 2911 and LR-Cal 2941 calibration hand test pumps enable simple and accurate pressure or vacuum generation. For precise adjustment for accurate comparison testing, the LR-Cal 2911 and LR-Cal 2941 have a fine adjustment valve. The reference pressure gauge and test item are connected via hose connection for hose with 4 mm internal diameter (6 mm external diameter). A piece of hose and a T-piece are included in the scope of delivery.
| Pressure generation: | only type LR-Cal 2911: 0 to 7 bar (100 psi) |
| Vacuum generation: | only typ LR-Cal 2941: 0 to -0,9 bar (-25 inHg) |
| Pressure port: | For hose with 4 mm inner diameter and 6 mm outer diameter |
| Medium: | Ambient air |
| Pressure- resp. vacuum generation via: | Hand knob |
| Test pressure fine adjustment: | Volume variator (very sensitive fine adjustment valve) |
| Dimension: | approx. 200 mm long, pump body approx. 35 mm diameter |
| Materials: | Aluminum, brass, H-PVC, NBR |
| Weight: | approx. 400 g |
| Order-Code: | LR-Cal 2911 (pressure generation): 500.9.000.1005.0 LR-Cal 2941 (vacuum generation): 500.9.000.9800.0 |
| Photo | Model | Description |
|---|---|---|
|
2950-KOFFER | Rigid transport and storage case with molded foam insert. |
|
500.9.000.0002.0 | Quick coupling T-piece for LR-Cal Serie 3000 T-piece with quick couplings for hose with 1 x 6 mm outer diameter 2 x 4 mm outer diameter |
|
500.0.000.9999.9 | PVC hose by the meter Outer diameter 6 mm (inner diameter 4 mm) |
|
500.9.000.0001.0 | Hydrophobic filter (max. 2 bar!) gas permeable, blocks liquids/moisture, for hose with 6 mm outer diameter (4 mm inner diameter) |
|
500.9.000.0002.0 | T-piece with quick couplings for hose with 6 mm outer diameter (4 mm inner diameter) Note: 1 pc. is included in scope of delivery of the pump. |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| 500.9.000.1005.0 | Pneumatic test pump for generating pressure up to 5 (7) bar, acc. Datasheet "2911/2941", incl. T-piece and appr. 300 mm hose | Delivery time from 12 weeks | from 453$ |
-
+
|
|
| 500.9.000.9800.0 | Pneumatic hand test pump for generating vaccum up to -900 mbar | Delivery time from 12 weeks | from 453$ |
-
+
|
|
| 2950-KOFFER | Transit Case with space for 1 digital handheld manometer and 2 calibration handpumps LR-Cal 2911 / 2941 | Delivery time from 12 weeks | from 64$ |
-
+
|
|
| T-STUECK-4-6-4 | Adapter T-Piece (needed if used with LR-Cal Serie 300 handheld) Pneumatic connection 1: for hose with 6 mm outer diameter Pneumatic connection 2: for hose with 4 mm outer diameter Pneumatic connection 3: for hose with 4 mm outer diameter Push-Pull-Principle | Delivery time from 12 weeks | from 8$ |
-
+
|
|
| 500.0.000.9999.9 | PVC tube 6 mm, per meter | Delivery time from 12 weeks | from 10$ |
-
+
|
|
| 500.9.000.0001.0 | Hydrophobe filter for 6 mm tube | Delivery time from 12 weeks | from 24$ |
-
+
|
|
| 999.0.000.0023.0 | Bleeding valve | Delivery time from 12 weeks | from 90$ |
-
+
|
|
| 500.9.000.0002.0 | Quick fit T-piece for hose with 6 mm outer diameter (1 pc. included in scope of delivery of the pump) | Delivery time from 12 weeks | from 18$ |
-
+
|
|
| 2911-2941-WARTUNG | Service kit for LR-Cal 2911/2941 | Delivery time from 12 weeks | from 29$ |
-
+
|
|
| HV-90 | Pressure and vacuum pump HV 90 for service and maintenance -0.95…+3 bar, incl. Accessories as per datahsheet. NOT for calibration purpose | Delivery time from 12 weeks | from 318$ |
-
+
|
|
| HV-90-2 | As type HV 90 but with 7/16-20 UNF (1/4" SAE) connection | Delivery time from 12 weeks | from 340$ |
-
+
|
|
| HVZ-02 | Drainage box 120 ml - necessrary if HV 90 shall be used with fluids | Delivery time from 12 weeks | from 47$ |
-
+
|
|
| HAP-02 | Hand pump for simultaneous suction and filling of fluids Volume 125 ml, with 2 hoses each 0.5 m | Delivery time from 12 weeks | from 182$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger 2911 + 2941 using the special form.
You can buy Leitenberger 2911 + 2941 in UAE at a price starting from 453 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Leitenberger 2911 + 2941 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
