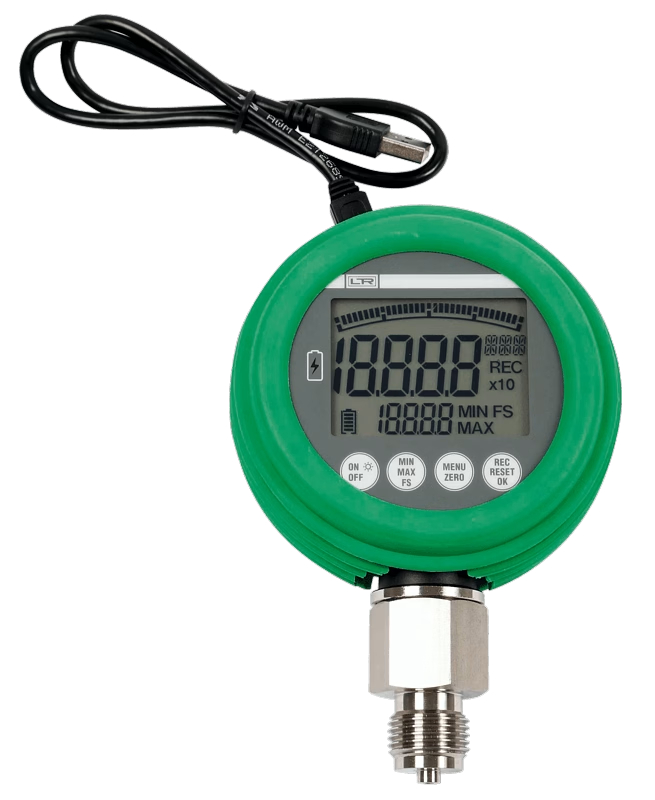

The Digital Manometer DM 80-UMS is very well suited for test and inspection tasks as well as for industrial applications.

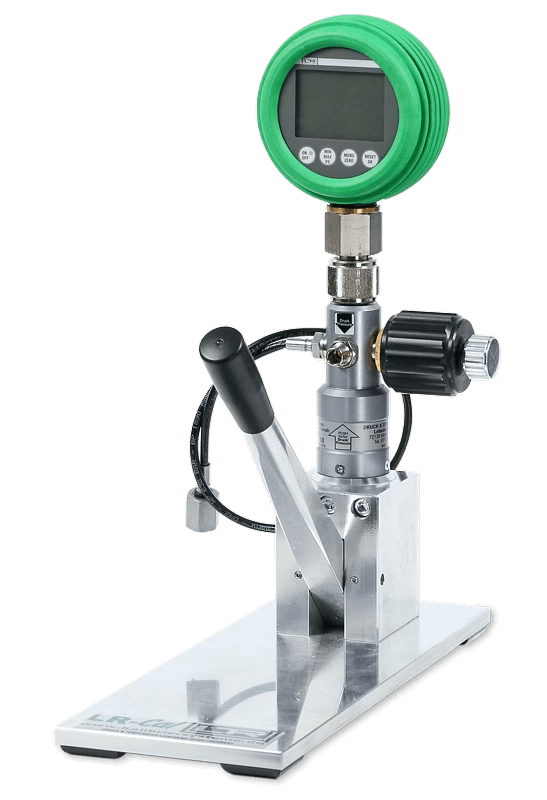

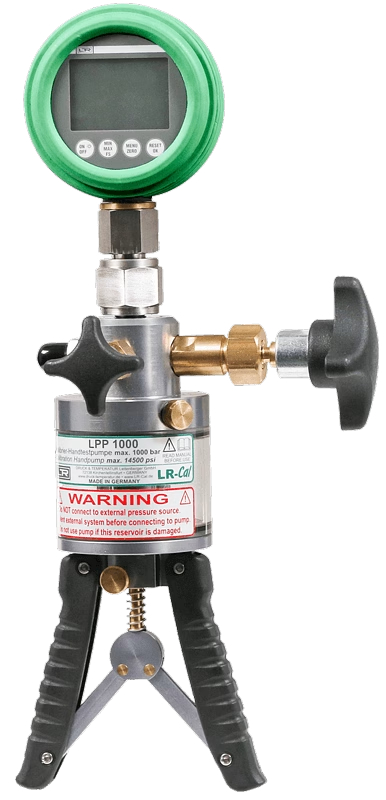

The DM 80-UMS digital manometer is excellently suited for on-site use together with our LR-Cal pressure test pumps. In combination with our LR-Cal pressure comparison test pumps (spindle pumps), it is also very well suited for operation in the laboratory and in the workshop.
The device is equipped with a micro USB socket.
The measured value storage rate can be set as follows: every 10 ms / every 100 ms / every 1 sec / every 10 sec.
Furthermore, a data record can be created by pressing a button (“REC” key). Because of the exceedingly large storage capacity, the logging duration is as follows:
The built-in data memory of the DM 80-UMS is recognized by the PC as external memory, like an USB stick. This allows extremely easy readout of the stored data (.csv files) without special software. The data transfer speed corresponds to the USB 2.0 standard.
The built-in rechargeable lithium-ion battery allows a self-sufficient continuous operation of about 10 hours. The charging time of an empty battery is about 3 hours.
| Accuracy | ±0.25% BFSL *) |
| Interface | USB |
| Data memory | 8 GB (CSV files) |
| Ambient temperature | -10…+50°C |
| Storage temperature | -20…+60°C |
| Medium temperature | -40…+125°C |
| Max. relative humidity | 85% r.h. |
| Material pressure connection | Stainless steel 1.4301 |
| Material membrane | Stainless steel 1.4548 (welded) |
| Material case | Metal (die-cast zinc) |
| Temperature compensated range | 0…50°C |
| Error in temperature compensated range | ≤0.035% FS / °C |
| Minimum load cycles | 100 x 106 |
| Supply | Lithium-Ion battery |
| Max. battery life time | 10 h continuous operation |
| Pressure units | switchable: bar, PSI, kPa, MPa (depending from measuring range) |
| Pressure connection | 1/2″ BSP male according to EN 837 |
| Display | LCD incl. bargraph |
| Peak values | Min + Max |
| Weight | approx. 610 g |
| Case diameter without rubber protection cap | approx. 80 mm |
| Case diameter with obligatory rubber protection cap | approx. 95-100 mm |
*) ±0.25% BFSL (maximum nonlinearity according to best fit straight line method) corresponds to ±0.5% FS according to IEC 60770 (limit point setting (nonlinearity, hysteresis and repeatability)).
| Photo | Model | Description |
|---|---|---|
|

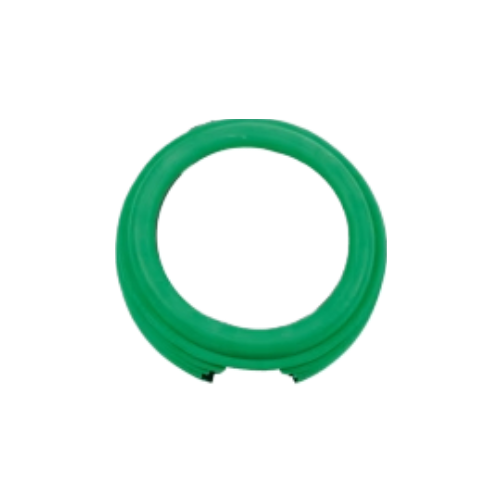

DM80-UMS-GK-G | Green rubber protection cap |
|

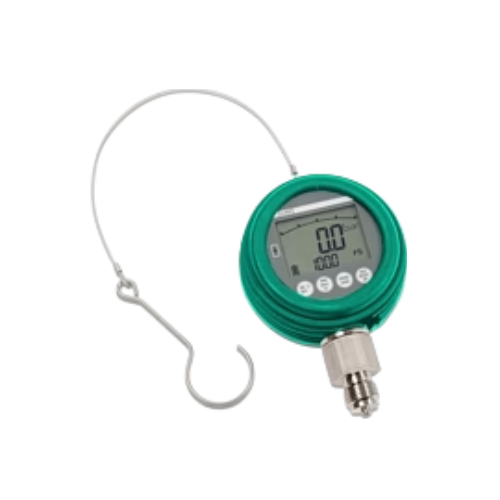

DM80-UMS-GK-G-HAKEN | Green rubber protection cap with hook for hanging and wire rope 340 mm long |
|
DM80-AD-M16-I-G12 | Thread adapter 1/2" BSP female x M 16 x 2 female |
|
DM80-AD-M16-A-G12 | Thread adapter 1/2" BSP female x M 16 x 2 male |
|
DM80-KOFFER | Storage and transport case with molded foam insert |
|
DM80-UMS-LG | Plug-in charger 110...230 VAC |
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger DM 80-UMS using the special form.
