Digital hand manometer for small pressures, vacuum, differential pressures and absolute pressure
Made in Germany. brand Leitenberger, model HMG 1
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $270
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

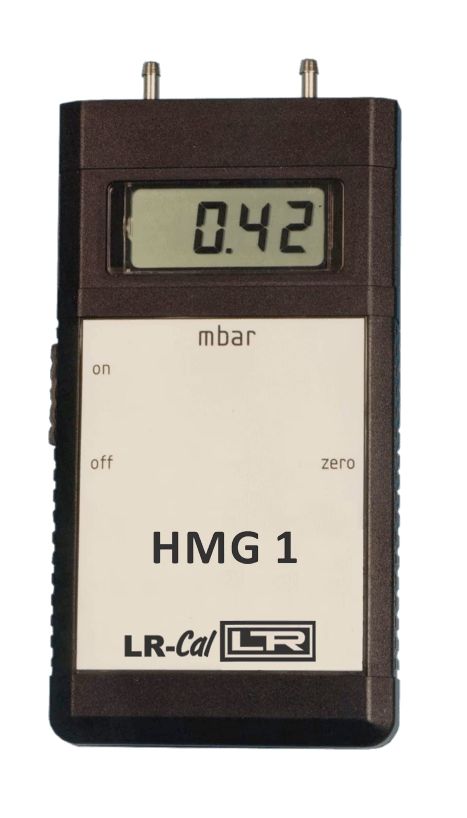

The LR-Cal HMG 1 digital handheld pressure gauges are suitable for measuring non-corrosive and non-ionic liquids and gases, e.g. air, dry gases, hydraulic fluids. In addition to differential pressure, they also measure positive and negative overpressure and optionally volume flow. These process variables are displayed on a 3 1/2-digit LCD with 12.7 mm digit height, and optionally supplied to a 0…1 V analog output.
High reliability and accuracy is achieved by using piezoresistive measuring elements. The power supply is provided by a 9V block battery (type 6F22). If the minimum permissible operating voltage is not reached, “low Bat” is indicated on the LC display. Each unit is supplied with a measurement protocol.
Typical applications:
Available versions:
| Operating temperature | 0…+50°C |
| Hysteresis | 0.1% |
| Measurements per second | 2.5 |
| Medium | Air, non-corrosive and non-ionic gases, hydraulic fluids |
| Pressure ports | 2 x for hose with 4 mm inner diameter (Absolute pressure: just 1 port) |
| Weight | approx. 190 g (incl. batterie) |
| Protection degree | IP 54 |
| Dimension | 85 x 160 x 31 mm |
| Optional analogue output | 0…1 V, RL >= 2 KOhm Electr. connection: 3.5 mm jack plug, 2-pole |
| ZERO point adjustment | via potentiometer at the side of the handheld housing |
| Photo | Model | Description |
|---|---|---|
|
500.9.000.0001.0 | Hydrophobic filter (max. 2 bar!) gas permeable, blocks liquids/moisture, for hose with 4 mm inner diameter and 6 mm outer diameter |
|
2950-KOFFER | Storage and transport case with molded foam insert |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| HMG1-0001 | Digital handheld manometer LR-Cal HMG 1. Range: 0...1 mbar pressure, vacuum and differential pressure | Delivery time from 12 weeks | from 320$ |
-
+
|
|
| HMG1-0002 | Digital handheld manometer LR-Cal HMG 1. Range: 0...2,5 mbar pressure, vacuum and differential pressure | Delivery time from 12 weeks | from 267$ |
-
+
|
|
| HMG1-0005 | Digital handheld manometer LR-Cal HMG 1. Range: 0...5 mbar pressure, vacuum and differential pressure | Delivery time from 12 weeks | from 267$ |
-
+
|
|
| HMG1-0010 | Digital handheld manometer LR-Cal HMG 1. Range: 0...10 mbar pressure, vacuum and differential pressure | Delivery time from 12 weeks | from 267$ |
-
+
|
|
| HMG1-0025 | Digital handheld manometer LR-Cal HMG 1. Range: 0...25 mbar pressure, vacuum and differential pressure | Delivery time from 12 weeks | from 267$ |
-
+
|
|
| HMG1-0050 | Digital handheld manometer LR-Cal HMG 1. Range: 0...50 mbar pressure, vacuum and differential pressure | Delivery time from 12 weeks | from 267$ |
-
+
|
|
| HMG1-0100 | Digital handheld manometer LR-Cal HMG 1. Range: 0...100 mbar pressure, vacuum and differential pressure | Delivery time from 12 weeks | from 267$ |
-
+
|
|
| HMG1-0250 | Digital handheld manometer LR-Cal HMG 1. Range: 0…250 mbar pressure, vacuum and differential pressure | Delivery time from 12 weeks | from 267$ |
-
+
|
|
| HMG1-0500 | Digital handheld manometer LR-Cal HMG 1. Range: 0…500 mbar pressure, vacuum and differential pressure | Delivery time from 12 weeks | from 267$ |
-
+
|
|
| HMG1-1000 | Digital handheld manometer LR-Cal HMG 1. Range: 0...1000 mbar pressure, vacuum and differential pressure | Delivery time from 12 weeks | from 267$ |
-
+
|
|
| HMG1-1999 | Digital handheld manometer LR-Cal HMG 1. Range: 0...1999 mbar pressure, vacuum and differential pressure | Delivery time from 12 weeks | from 336$ |
-
+
|
|
| HMG1-1010 | Digital handheld manometer LR-Cal HMG 1. Range: 0...10 bar pressure, vacuum and differential pressure | Delivery time from 12 weeks | from 381$ |
-
+
|
|
| HMG1-1100-ABS | Digital handheld manometer LR-Cal HMG 1. Range: 700...1100 mbar Absolute pressure | Delivery time from 12 weeks | from 318$ |
-
+
|
|
| 500.0.000.9999.9 | PVC tube 4x6 mm, per meter | Delivery time from 12 weeks | from 8$ |
-
+
|
|
| 500.9.000.0002.0 | T-piece for hose 4 x 6 mm | Delivery time from 12 weeks | from 14$ |
-
+
|
|
| 500.9.000.0001.0 | Hydrophobe filter for tube 4x6 mm Feuchtigkeit hydrophobe filter for tube 4x6 mm | Delivery time from 12 weeks | from 19$ |
-
+
|
|
| 2950-KOFFER | Cases with foam inserts: for 1 x device + 1 x LR-Cal 2911 + 1 x LR-Cal 2941 pressure test pumps | Delivery time from 12 weeks | from 64$ |
-
+
|
|
| LPP-KOFFER | Cases with foam inserts: for 1 x device + 1 x LR-Cal LPP 10 pressure test pump | Delivery time from 12 weeks | from 119$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger HMG 1 using the special form.
