Made in Germany. brand Leitenberger, model TLDMM-3.0
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $1 000
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

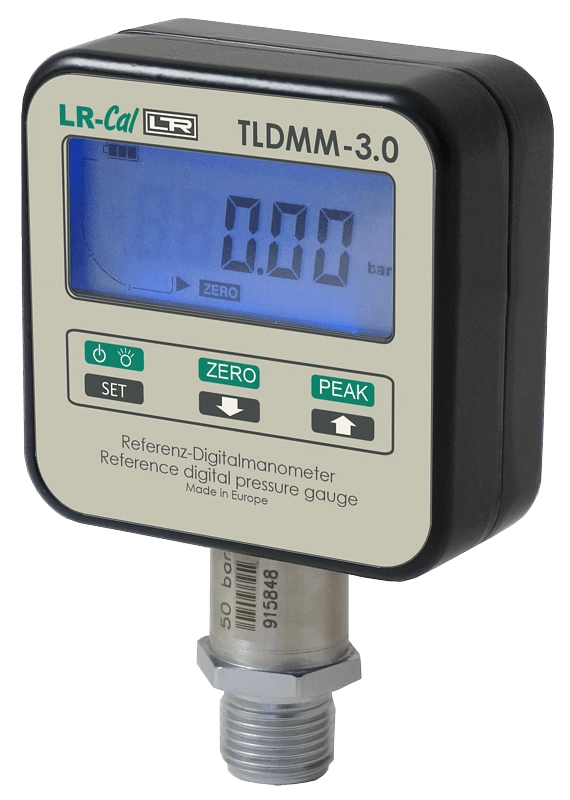

The LR-Cal TLDMM-3.0 is a professional digital pressure pressure meter manufactured with the most modern technologies to ensure a high degree of reliability, versatility and practicality. A monolithic sensor made of stainless steel, which can also withstand very dynamic pressures and a robust housing made of painted, reinforced technopolymer guarantee great robustness and high long-term stability.
The device was developed for use in metrological laboratories,calibration systems, in automation technology in general and in process control, where it is also necessary, for example, to monitor, record andmonitor, record and transmit data.

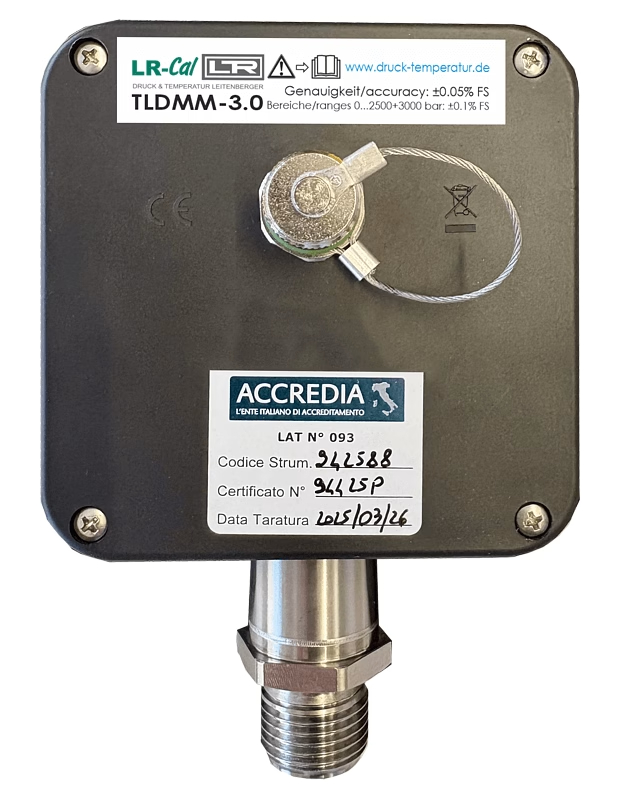

During the production cycle, the LR-Cal TLDMM-3.0 is calibrated and supplied with a DAkkS-approved ACCREDIA certificate to guarantee a measurement uncertainty of better than 0.025% or 0.05% in 30 different pressure ranges, gauge pressure, including manovacuum ranges, and absolute pressure.
With the LR-Cal TLDMM-3.0 it is possible to simultaneously measure the pressure generated by air, gas, oil, water or any other type of non-corrosive liquid and the temperature of the pressurized medium.
The LR-Cal TLDMM-3.0 is powered by an internal, rechargeable lithium-ion battery with up to 50 hours of continuous operation (without backlight). To charge the battery, you can use the USB port with the 5 VDC power supply or connect the device directly to the USB port of a PC.
For continuous operation, the pressure gauge can be supplied with power via the USB port. For industrial applications, it is optionally possible to use an external power supply from 12 to 24 VDC (device then without built-in battery).
In the programming menu, which is accessible via the keypad, the behavior of the device can be adapted by setting various functions, such as DIGITAL FILTER, which makes it possible to keep the measured value display stable even with discontinuous pressures, resolution, unit of measurement, automatic switch-off, etc. …
A positive and negative PEAK function (peak value) can be set via the keypad in order to record the maximum and minimum pressures determined during a test.
There is a bar graph on the display, which is also always active in the programming menu.

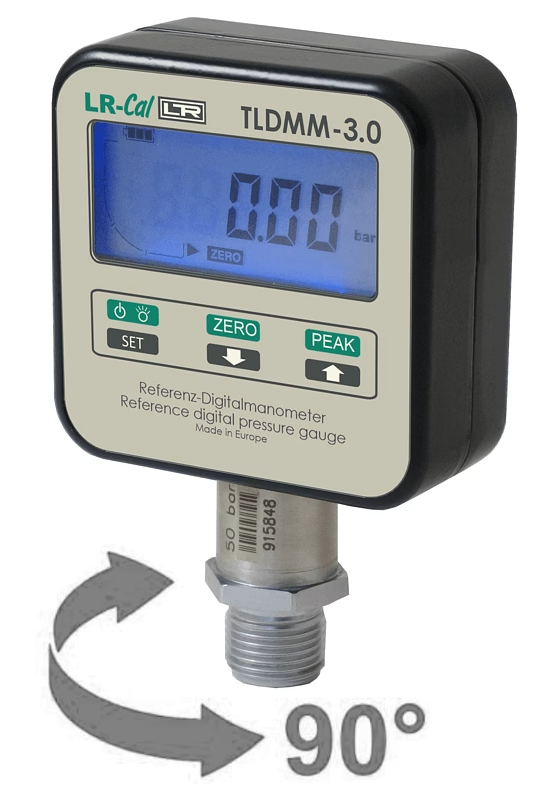

For easier installation and better readability, the display can be aligned by up to 90°. The optional WIRELESS function is used for wireless transmission of measured values in a network of up to 32 devices. A communication protocol for the user’s own PC software is available on request.
For continuous operation, the pressure gauge can be supplied with power via the USB port. For industrial applications, it is optionally possible to use an external power supply from 12 to 24 VDC (device then without built-in battery).
In the programming menu, which is accessible via the keypad, the behavior of the device can be adapted by setting various functions, such as DIGITAL FILTER, which makes it possible to keep the measured value display stable even with discontinuous pressures, resolution, unit of measurement, automatic switch-off, etc. …
A positive and negative PEAK function (peak value) can be set via the keypad in order to record the maximum and minimum pressures determined during a test.
There is a bar graph on the display, which is also always active in the programming menu.
For easier installation and better readability, the display can be aligned by up to 90°. The optional WIRELESS function is used for wireless transmission of measured values in a network of up to 32 devices. A communication protocol for the user’s own PC software is available on request.
| Specification | Data |
|---|---|
| Permitted ambient air humidity: | <90% non-condensing |
| Pressure units | bar, mbar, psi, MPa, kPa, kg/cm², mHg, mmHg, mmH2O, mH2O |
| Temperature measurement (medium temperature) |
Resolution: 0,1°C Accuracy: ±1°C |
| Temperature units: | °C, °F |
| Temperature effect (1°C): | at zero point ≤±0,002%; sensitivity ≤±0,002% |
| Internal resolution | 24 bit |
| Respons time: | 100 ms (10 measurements per second) |
| Display: | 7-segment LCD |
| Digit height: | 13 mm |
| Resolution: | 1, 2, 5, 10 |
| Digital filter function: | from 0 to 5 settable |
| ZERO function: | settable from 0…100% of full scale value |
| PEAK function: | Positive and negative |
| Indication change function: | Automatic switch between pressure value and temperature value indication |
| Key lock function: | Protection of parameters |
| Interface: | USB 2.0 (cable lenth max. 5 m) |
| Power supply: | 1 Li-Ion battery 3.7 V, 2000 mA/h |
| Autonomy when fully charged: | 50 hours continuous operation (LCD backlight switched off) |
| Battery charging: | via USB interface, 5 VDC |
| External power supply: | via USB interface, 5 VDC |
| Pressure port: | 1/2″ BSP male (other as option) |
| Sealing: | up to 1,000 bar USIT A 63-18, from 1,500 bar sealing cone (supplied) |
| Pressure connection mounting: | Open wrench 27 mm needed |
| Torque: | 28 Nm |
| Protection degree (EN 60529): | IP 65 with connected supplied USB cable or with screwed protection cap on the 5-pole M12 port |
| Material pressure sensor: | Stainless steel 17-4 PH (INOX) |
| Material housing: | Glassfiber reinforced technopolymer |
| OPTION accuracy ±0.025% FS: | Additional order-code TLDMM-3.0-KL002 For all gauge pressure ranges 0…5 to 0…2,000 bar and compound ranges -1…+5 to -1…+60 bar available |
| OPTION Data logger function: | Additional order-code TLDMM-3.0-DL With real-time clock, max. 130,000 pressure values or 65,000 pressure + 65,000 temperature values Settable storing rate and duration |
| OPTION Wireless data transmission: | Additional order-code TLDMM-3.0-WF WIRELESS data transmission via internal antenna, at PC side receiver required |
| OPTION Panel mounting version: | Additional order-code TLDMM-3.0-EB Axial back connection of the pressure port, protection IP 40, standard USB port, housing not rotatable |
| OPTION Version for external power supply: | Additional order-code TLDMM-3.0-ES No internal battery, supply 12…24 VDC needed |
| Photo | Model | Description |
|---|---|---|
|
TLDMM-3.0-NT | Mains power adapter 220 VAC für LR-Cal TLDMM-3.0 with option Art.Nr. TLDMM-3.0-ES (version for external power supply) |
|
TLDMM-3.0-GK | Rubber protection cap (yellow) Protects the device from damage and shocks |
|

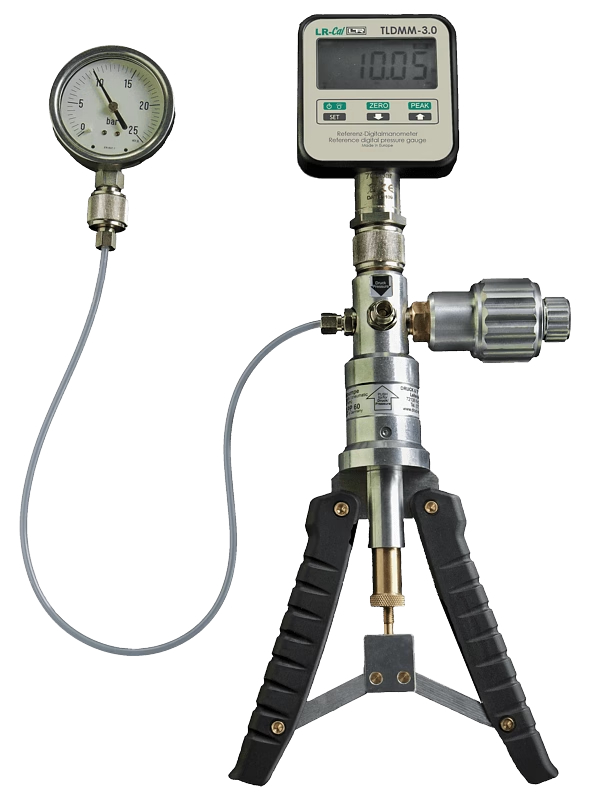

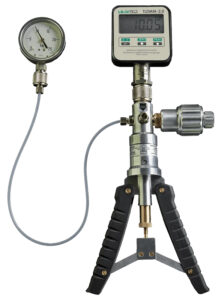

VRS-G12 | Volume reducer Reduces the internal volume of the pressure port, only required when used with pneumatic LR-Cal pressure test pumps |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| TLDMM-3.0-8010 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…100 mbar | Delivery time from 12 weeks | from 1 130$ |
-
+
|
|
| TLDMM-3.0-8025 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…250 mbar | Delivery time from 12 weeks | from 1 130$ |
-
+
|
|
| TLDMM-3.0-8050 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…500 mbar | Delivery time from 12 weeks | from 1 130$ |
-
+
|
|
| TLDMM-3.0-0001 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…1 bar | Delivery time from 12 weeks | from 1 000$ |
-
+
|
|
| TLDMM-3.0-0002 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…2,5 bar | Delivery time from 12 weeks | from 1 000$ |
-
+
|
|
| TLDMM-3.0-0005 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…5 bar | Delivery time from 12 weeks | from 1 000$ |
-
+
|
|
| TLDMM-3.0-0010 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…10 bar | Delivery time from 12 weeks | from 1 000$ |
-
+
|
|
| TLDMM-3.0-0020 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…20 bar | Delivery time from 12 weeks | from 1 000$ |
-
+
|
|
| TLDMM-3.0-0050 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…50 bar | Delivery time from 12 weeks | from 1 000$ |
-
+
|
|
| TLDMM-3.0-0100 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…100 bar | Delivery time from 12 weeks | from 1 000$ |
-
+
|
|
| TLDMM-3.0-0250 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…250 bar | Delivery time from 12 weeks | from 1 000$ |
-
+
|
|
| TLDMM-3.0-0350 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…350 bar | Delivery time from 12 weeks | from 1 000$ |
-
+
|
|
| TLDMM-3.0-0500 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…500 bar | Delivery time from 12 weeks | from 1 000$ |
-
+
|
|
| TLDMM-3.0-0700 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…700 bar | Delivery time from 12 weeks | from 1 000$ |
-
+
|
|
| TLDMM-3.0-1000 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…1000 bar (including 2 pcs. sealing cone 60°) | Delivery time from 12 weeks | from 1 200$ |
-
+
|
|
| TLDMM-3.0-1500 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…1500 bar (including 2 pcs. sealing cone 60°) | Delivery time from 12 weeks | from 1 200$ |
-
+
|
|
| TLDMM-3.0-2000 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…2000 bar (including 2 pcs. sealing cone 60°) | Delivery time from 12 weeks | from 1 200$ |
-
+
|
|
| TLDMM-3.0-2500 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0...2500 (including 2 pcs. sealing cone 60°) | Delivery time from 12 weeks | from 1 500$ |
-
+
|
|
| TLDMM-3.0-3000 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0...3000 (including 2 pcs. sealing cone 60°) | Delivery time from 12 weeks | from 1 800$ |
-
+
|
|
| TLDMM-3.0-1001 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: -1…+1 bar | Delivery time from 12 weeks | from 1 100$ |
-
+
|
|
| TLDMM-3.0-1002 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: -1…+2,5 bar | Delivery time from 12 weeks | from 1 100$ |
-
+
|
|
| TLDMM-3.0-1005 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: -1…+5 bar | Delivery time from 12 weeks | from 1 100$ |
-
+
|
|
| TLDMM-3.0-1010 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: -1...+10 bar | Delivery time from 12 weeks | from 1 100$ |
-
+
|
|
| TLDMM-3.0-1020 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: -1…+20 bar | Delivery time from 12 weeks | from 1 100$ |
-
+
|
|
| TLDMM-3.0-1040 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: -1...+40 bar | Delivery time from 12 weeks | from 1 200$ |
-
+
|
|
| TLDMM-3.0-1060 | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: -1...+60 bar | Delivery time from 12 weeks | from 1 200$ |
-
+
|
|
| TLDMM-3.0-001A | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…1 bar abs. | Delivery time from 12 weeks | from 1 400$ |
-
+
|
|
| TLDMM-3.0-002A | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…2,5 bar abs. | Delivery time from 12 weeks | from 1 400$ |
-
+
|
|
| TLDMM-3.0-005A | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…5 bar abs. | Delivery time from 12 weeks | from 1 400$ |
-
+
|
|
| TLDMM-3.0-010A | Digital Reference Pressure Gauges LR-Cal TLDMM-3.0, range: 0…10 bar abs. | Delivery time from 12 weeks | from 1 400$ |
-
+
|
|
| VRS-G12 | Volume reducer, to be used with test pump LR-Cal LPP 40 | Delivery time from 12 weeks | from 40$ |
-
+
|
|
| TLDMM-3.0-GK | Rubber cup, yellow, for LR-Cal TLDMM-3.0 | Delivery time from 12 weeks | from 22$ |
-
+
|
|
| PC-WIRELESS | WIRELESS receiver (USB) for PC | Delivery time from 12 weeks | from 320$ |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger TLDMM-3.0 using the special form.
You can buy Leitenberger TLDMM-3.0 in UAE at a price starting from 1000 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Leitenberger TLDMM-3.0 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
