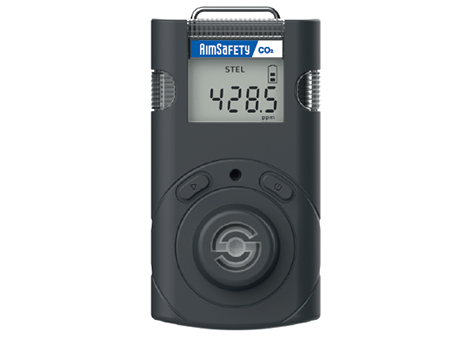

Advanced portable single-gas, personal monitor for Carbon Dioxide
Made in USA. brand MACURCO, model PM150-CO2
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

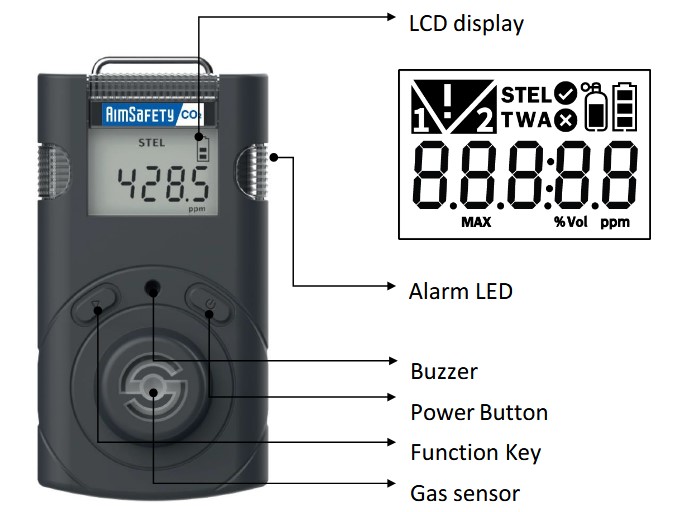

The PM150 is a low-maintenance, rechargeable single-gas monitor that protects workers by providing exposure detection for carbon dioxide in many different applications. The PM150 continuously monitors ambient air conditions and provides real-time gas concentrations on an easy-to-read LCD display. A three-tier alarm system warns the user of the presence of unsafe carbon dioxide levels with audible, visual, and vibrating alarms. The mini USB charger and software can adjust the unit’s low, high, STEL, and TWA alarms.
Key features
Applications
| Size | 1.6″(L) x 2.2″(W) x 3.6″(H) |
| Weight | 3.3 oz. (93 g.) |
| Sensor Type | NDIR |
| Battery | Rechargeable Li-ion |
| Operating Period | Sensor ~ 7 years Battery ~ 3-5 years |
| Event Logging | 30 most recent events |
| Data Logging | Data stored at 1 minute intervals and stores approximately 64,000 data logs |
| IP Rating | IP66/IP67 |
| Display | LCD display with backlight |
| Alarms | • Audible buzzer – 90 dB at 10cm • Vibration alarm • Flashing red LEDs • On-screen indication • Differentiating audible & visual high and low alarm indications |
| Charger | USB Type-C |
| Set points | User Selectable via PC Software |
| Temperature | -4°F to +122°F (-20°C to +50°C) |
| Humidity | 5% to 95% RH (Non-condensing) |
| Certifications | EMC directive(2004/108/EC), RoHS2 |
| Warranty | Two year limited warranty |
Range & Resolution
| Gas | Range | Resolution |
| Carbon Dioxide (CO2) | 0-50,000PPM or 0-5% v/v | 100PPM or 0.1% v/v |
Default Values
| PM150-CO2 | Values |
| Low Alarm | 5,000PPM (0.5% v/v) |
| High Alarm | 10,000PPM (1.0% v/v) |
| STEL | 30,000PPM (3.0% v/v) |
| TWA | 5,000PPM (0.5% v/v) |
| Photo | Model | Description |
|---|---|---|
| 70-2900-0531-1 | PM100/150 Bump/Calibration Hood | |
| 70-2900-0540-6 | PM150 Replacement Sensor (CO2) | |
| 70-2900-0532-0 | PM150 Replacement Battery | |
| 70-2900-0533-7 | PM150 Replacement Front Cover | |
| 70-2900-0533-8 | PM150 Mini USB Charger | |
| 70-2900-0530-5 | PM100/150 Sensor Filter with Gasket (Pack of 20) | |
| 70-2900-0532-1 | PM100/150/400 Monitor Clip with Screw |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO PM150-CO2 using the special form.
You can buy MACURCO PM150-CO2 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MACURCO PM150-CO2 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
