Vecsafe monitors oxygen and pressure levels in the Vapour Emission Control Systems (VECS). Each vapour line is monitored during loading operations for any over or under-pressurisation or an increase in oxygen levels approaching 8% volume in compliance with USCG and IMO legislation.
Made in United Kingdom. brand Martek Marine, model VECSAFE
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

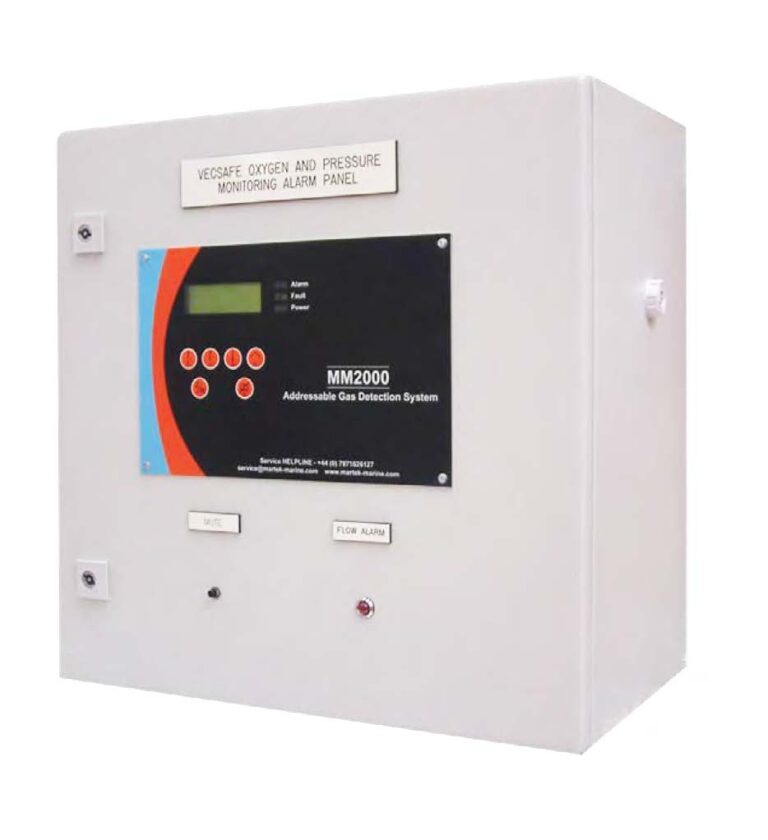

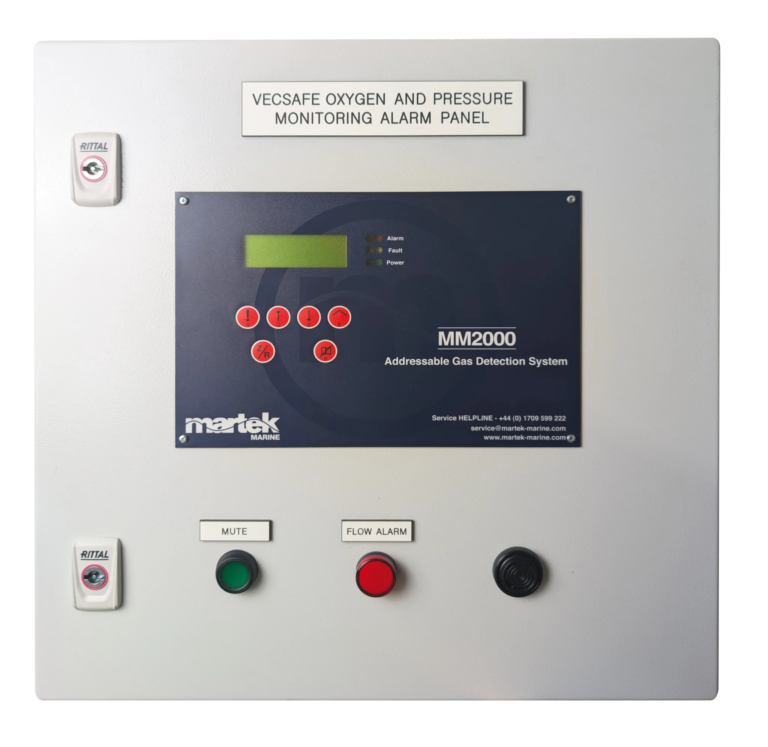

The system comprises of a deck-mounted enclosure containing an intrinsically safe oxygen sensor and pressure sensor with associated sample pipework, selector switches, and signal communications.The control and alarm panel is normally mounted in the cargo control room (CCR) and provides an alphanumeric display of the oxygen level and pressure reading at each point. Local audio and visual alarms can be initiated from the control panel, and repeater panels are optionally available for wheelhouse and engine control room annunciation.
Features:
MM2000 Control Panel
| Power Supply | 110/230V ac 50/60Hz |
| Sensor network operating voltage | |
| 24V dc supplied by the control unit | |
| Indicators | Power – Green LED |
| Alarm – Red LED | |
| Fault – Amber LED | |
| Display – Four line alpha numeric | |
| Sensor Type/Inputs | Electrochemical (Oxygen) |
| Outputs | 16 relays user selectable SPCO (zone selection for any sensor) |
| Relay 1 pre-set – Common low alarm | |
| Relay 2 pre-set – Common high alarm | |
| Relay 3 pre-set – Common over-range alarms | |
| Relay 17 pre-set – Common fault alarm, SPCO relay | |
| Relay 18 pre-set – Mains fail, SPCO relay normally energized | |
| All volt-free relay contacts rated 230V ac @ 5A |
MM1000 Oxygen Sensor
| Sensor Cable | 4-core 1.5mm² (min) screened and armoured |
| Contains: 2 x 24V dc power 2 x RS485 serial communications | |
| Cable Type | Marine approved, internal screen and overall braiding |
| Sensor cables terminating at control unit | |
| Environmental | Metal control unit (standard) – IP65 |
| Operating temperature -40 to +50ºC | |
| Humidity 0 to 95% RH | |
| Miscellaneous | Enclosure cable entry – typically bottom via M20 glands |
| Alarm relays – automatic inhibit during service periods |
MM2000 Pressure Sensor
| Pressure Range | -1000 to +3000 mmWg |
| Material | Stainless Steel |
| Connection Thread | 1/2 inch BSP parallel |
| Power Supply | 10 to 30V dc |
| Signal Output | 4~20mA, 2 wire system |
| Accuracy | ≥ 0.5% of span |
| Operating Temperature | -30 to +150ºC |
| Ex Protection | ATEX categories M1, M2, 1G, 1D, 1/2G, 1/2D, 2G, 2D |
