Reliable Analysis of Dew-Point or Moisture Content in Gases and Liquids
Made in United Kingdom. brand Michell, model Easidew PRO XP
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

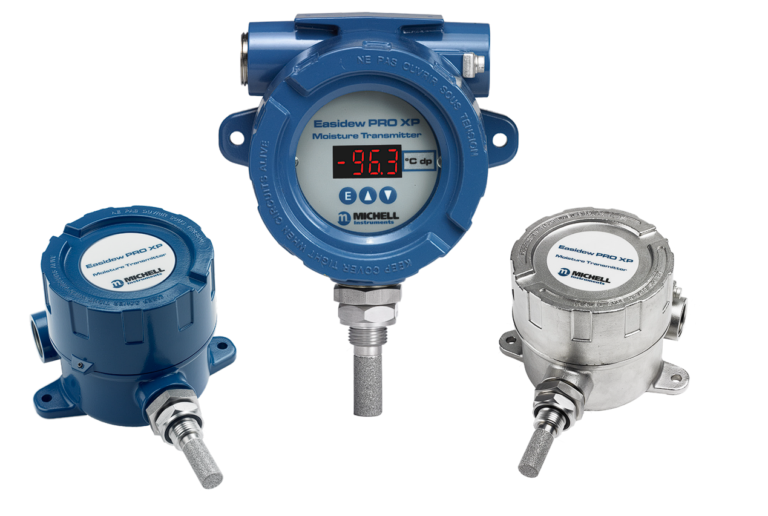

The Easidew PRO XP moisture transmitter is an explosion-proof dew-point transmitter for trace moisture measurements in gases or liquids in hazardous areas. It is certified by ATEX, UKCA, cQPSus, IECEx, and GOST for use in any North American, European or Asian zone.
The transmitter has a wide dew-point measurement range of –110 to +20 °Cdp (-166 to 68 °Fdp) with industry-standard process and electrical connections, ensuring low installation costs. The Easidew PRO XP incorporates the latest Michell Ceramic Metal-Oxide Moisture Sensor providing stable and reliable measurements for all new and replacement moisture applications. The unit can also be supplied with an integral 4-digit LED display, displaying the configured moisture output signal.
Applications
| Performance Specifications | Easidew PRO XP for Gases | Easidew PRO XP LQ for Liquids | ||
| Measurement Range | -110…+20 °C (-166…+68 °F) dew point; -100…+20 °C (-148…+68 °F) dew point | 0…1000 ppmW capability – factory configured to customer-required range and application | ||
| Accuracy | ±1 °C (±1.8 °F) dew point (+20…-60 °C / +68…-76 °F); ±2 °C (±3.6 °F) dew point (-60…-110 °C / -76…-166 °F) | |||
| Response Time | 5 mins to T95 (dry to wet) | |||
| Repeatability | 0.5 °C (32.9 °F) dew point | |||
| Calibration | Traceable 13-point calibration and certificate | |||
| Electrical Specifications | ||||
| Output Signal | 4…20 mA (2-wire connection, current source); User configurable over range | |||
| Output | Dew point or moisture content | Moisture content | ||
| Analog Output Scaled Range | Dew point: -110…+20 °C (-166…+68 °F); Moisture content in gas: 0–3000 ppmV; Non-standard: mg/m3, lbs/MMSCF natural gas |
Moisture content in liquid: 0…1000 ppmW capability – factory configured to customer-required range and application | ||
| Supply Voltage | 14…28 V DC | |||
| Load Resistance | Max 250 Ω @ 14 V (500 Ω @ 24 V) | |||
| Current Consumption | 23 mA max, depending on output signal | |||
| Saturation Constants (for moisture in liquids measurements only) | 6-point look-up table for saturation constants up to 1000 ppmW over the temperature range 0…+50 °C (+32…+122 °F); saturation constants for 8 common liquids can be programmed into the Easidew PRO XP LQ via the application software; alternatively the user can program saturation constants manually |
|||
| Compliances | CE & UKCA | |||
| Operating Specifications | ||||
| Operating Temperature | -40…+60 °C (-40…140 °F) | |||
| Compensated Temperature Range | -20…+50 °C (-4…+122 °F) NOTE: The transmitter accuracy statement is only valid for the temperature range -20/+50 °C (-4/+122 °F) | |||
| Storage Temperature | -40…+60 °C (-40…+140 °F) | |||
| Operating Pressure | 45 MPa (450 barg/6527 psig) maximum | |||
| Flow Rate | 1…5 Nl/min mounted in standard sampling block; 0…10 m/sec direct insertion | 0.1. 0.3L/min through Easidew sample block 0.1. 1m/s direct insertion | ||
| Mechanical Specifications | ||||
| Ingress Protection | IP66 in accordance with standard BS EN 60529:1992; NEMA 4 protection in accordance with standard NEMA 250–2003 | |||
| Explosion and Flameproof Area Certificates * | ATEX/UKCA: | IECEx: | cQPSus: | |
| Standard: Aluminium | II 2 GD Ex db ia IIC T6 Gb EX tb IIIC T80°C Db IP66 Tamb -20 °C…+70 °C | Ex db ia IIC T6 Gb Ex tb IIIC T80 °C Db IP66 Tamb -20 °C…+70 °C | Class I, Division 1, Groups ABCD T6 Class II & III, Division 1, Groups EFG Class I, Zone 1, AEx/Ex db ia IIC T6 Gb Zone 21, AEx/Ex tb IIIC T6 Db Tamb -20 °C…+70 °C | |
| Optional: 316 stainless steel | II 2 GD Ex db ia IIC T6 Gb EX tb IIIC T80 °C Db IP66 Tamb -20 °C…+70 °C | Ex db ia IIC T6 Gb Ex tb IIIC T80 °C Db IP66 Tamb -20 °C…+70 °C | Class I, Division 1, Groups ABCD T6 Class II & III, Division 1, Groups EFG Tamb -20 °C…+70 °C | |
| Pattern Approval | Kazakhstan (GOST-K) | |||
| Additional Approvals | TRCU 012 (EAC), Japan Ex, PESO (India), NEPSI (China), KCS (Korea) | |||
| Canadian Pressure Vessel Cert | C.R.N. – all Canadian provinces | |||
| Oxygen Service | Optional: Cleaned for enriched oxygen | |||
| Housing Material | Standard: Aluminium (copper free), epoxy and polyurethane powder coated, blue RAL 5009 Optional: 316 stainless steel (supplied with BS EN 10204 3.1 material certificate if option F2 requested) |
|||
| Housing Moisture Protection | Optional: Electronics Conformal Coating | |||
| Filter (sensor protection) | Standard: Stainless steel sintered guard (for protection against fine particulate >80µm) Optional: HDPE guard (for protection against fine particulate >10µm) |
|||
| Process Connection and Material | 3/4” – 16 UNF with recessed Viton® O-ring; 316 stainless steel; Optional O-ring: Kalrez ** | |||
| Weight | Aluminium: 1.6kg (3lb 8oz); 316 stainless steel: 2.4kg (5lb 5oz) |
|||
| Electrical Connections | Dual 3/4” NPT gland | |||
| Programmable Display Meter Range | Optional: -1999…+9999 | |||
| Programmable Display Decimal Point | Optional: 0…3 decimal places | |||
| Display Meter Overload Limits | Optional: 3.6 mA and 20.4 mA | |||
| Programmable Display Meter Scales | Optional: °C, °F, %, No Scale | |||
| Stainless Steel Tags | Optional: 316 stainless steel tags (70 x 25mm / 2.76 x 1in) | |||
| Diagnostic Conditions (factory programmed) | Conditions: Sensor fault, Under-range dew point, Over-range dew point | Output: 23 mA, 4 mA, 20 mA | ||
* The end user has a responsibility to ensure that when installed in the Hazardous Area, the system is compliant with relevant local and international installation Standards for the use of
equipment in explosive atmospheres.
** Kalrez O-ring is non standard and available at an additional cost detailed on the price list
You can request the necessary certificates, documentation, instructions and user guide for Michell Easidew PRO XP using the special form.
You can buy Michell Easidew PRO XP in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Michell Easidew PRO XP price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Hydrocarbon liquid moisture analyzers
