For Moisture Measurement in Process Liquids
Made in United Kingdom. brand Michell, model Liquidew I.S.
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Intrinsically safe moisture in liquids analyzer for fast, reliable on-line measurements. Continuous online measurement allows monitoring and control of processes to maximise efficiency for production and maintenance.
Based on the Michell Ceramic Metal-Oxide Moisture Sensor, Liquidew I.S. measures trace moisture in a wide variety of non-polar liquids. It is fully certified for use in hazardous areas and typical applications include control of moisture for petroleum refineries and petrochemical processing. Optional Oxygen Electrochemical sensors offer additional capability for percentage and ppmV O2 measurements.
The control unit in the multi-channel format can also include a moisture in gas analysis or oxygen measurement function by combining with the Promet I.S. Moisture in Gas Analyzer or the Minox-i O2 transmitter.
Applications
| Sensors | |
| Sensor Technology | Michell Ceramic Metal-Oxide Moisture Sensor |
| Sensor Version | Easidew PRO I.S. |
| Measurement Range | 0.001…1000 ppmW; Higher range on request, actual range dependent on solubility of sample fluid |
| Calibration Range | -100…+20 °Cdp (-148…+68 °Fdp) |
| Accuracy | Dew point: ±1 °C between -59.9 and +20 °Cdp (±1.8 °F between -75.9 and +68 °Fdp) ±2 °C between -60 and -100 °Cdp (±3.6 °F between -76 and -148 °Fdp) Moisture content: ±10% of reading ±20% of reading |
| Resolution | 0.1 °C (0.18 °F) between +20 and -100 °Cdp (+68 and -148 °Fdp) |
| Temperature Measurement | Pt100 |
| Temperature Measurement Range | -20…+70 °C (-4…+158 °F) |
| Temperature Measurement Accuracy | ±0.2 °C (±0.36 °F) |
| Analysis Pressure | Up to 5 MPa (50 barg / 725 psig) |
| Analysis Temperature | 0…+50 °C (32…+122 °F) |
| Sample Flow Rate | Min 0.01 l/min, max 10 l/min 0.1 to 0.3 l/min recommended |
| Calibration | Traceable to British (NPL) and American (NIST) National Humidity Standards |
| Certifications | |
| Hazardous Area Certification | ATEX/UKCA: II 1 G Ex ia IIC T4 Ga (-20 °C…+70 °C) IECEx: Ex ia IIC T4 Ga (-20 °C…+70 °C) TR CU: 0Ex ia IIC T4 Ga (-20 °C…+70 °C) cQPSus: IS, Class I, Division 1, Groups A, B, C & D, T4 Class I, Zone 0, AEx ia IIC T4 Ga, Ex ia IIC T4 Ga Tamb +70 °C |
| Pattern Approval | GOST-R, GOST-K |
Control Unit
| Display | 2.8” color touch screen LCD, displaying moisture content / dew point or O2 and analysis temperature |
| Analog Output | Three 4…20 mA (max. load 500 Ω) user-definable outputs |
| Digital Output | RS485 Modbus RTU |
| Display Mode | Moisture content (ppmW) Dew point (°C or °F) Temperature (°C or °F) % or ppmV O2 |
| Display Resolution | 0.1 °Cdp, 0.1 °Fdp, 0.001 ppmW, 0.1 °C temp., 0.01 %/0.5 ppmV O2 |
| Alarms | Four alarm relays. Control action and setpoint are user programmable Two Form C contacts rated 30 V DC, 5 A. Non-inductive load Two Form A contacts rated 30 V DC, 5 A. Non-inductive load |
| I.S. Barriers | Galvanic isolation type, integrated to Control Unit |
| Power Supply | 85…265 V AC 50/60 Hz or 20…28 V DC 30 VA max. power consumption |
| Enclosure | 19” sub rack unit Dimensions: 132 x 483 x 375 mm (5.2 x 19.01 x 14.76”) (h x w x d) (100 mm/4” min. clearance depth for cables and vents) |
| Operating Environment | Indoor, safe area, 0…+50 °C (32…+122 °F), < 90 %rh |

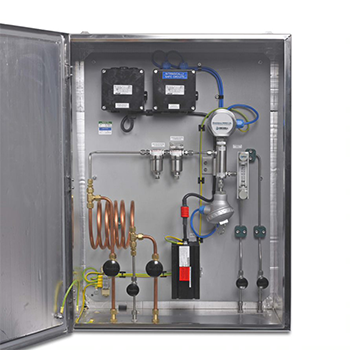

| Premium Sampling Systems | |
| Enclosure | 304 stainless steel (EN1.4301) enclosure. Option for complete enclosure in 316 stainless steel (EN1.4401); All fixtures stainless steel; Galvanized steel internal mounting plate; Open panel version available for indoor installation Dimensions: 800 x 600 x 300 mm (31.5 x 23.62 x 11.81”) (h x w x d) |
| Enclosure Mounting | Stainless steel wall mounting brackets |
| Enclosure Ingress Protection | IP66 |
| Enclosure Temperature Control | Heater/thermostat options for fixed set-point +20 °C (+68 °F) or adjustable set-point range 0 to control 50 °C (32 to control 122 °F) |
| Heater Power Supply | 110/120 or 220/240/255 V AC, 50/60 Hz Power consumption 100 W max. |
| Operating Environment | Shaded position, on or off shore, -20…+40 °C (-4…+104 °F) (-40…+60 °C/-40…+140 °F max. transient) Enclosure cooling option recommended for climatic ambient > +45 °C (113 °F) |
| Sample Cooling Option | Recommended for process fluid temperatures > +40 °C (+104 °F) Plant water supply required, ≤ +30 °C (+86 °F) |
You can request the necessary certificates, documentation, instructions and user guide for Michell Liquidew I.S. using the special form.
You can buy Michell Liquidew I.S. in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Michell Liquidew I.S. price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
