Thermocouples type B, S, R, W. Operating temperature range 1500-1700°C, maximum temperature 1800°C. Permissible error ±5°C/±3°C, response time 4-6 sec.
Disposable and reusable thermocouples are available for order, including for continuous temperature measurement of melted metal. Analogue of immersion thermocouples Heraeus Positherm and Supertemp.
Made in Russia. brand MIRKIP, model 602/604
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $2
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The company manufactures a wide range of immersion thermocouples platinum-platinum/rhodium (Pt-Pt/Rh) and WRe3/25, used for measuring the full temperature range of melted metal in metallurgy and foundry applications. The immersion thermocouples are produced in accordance with YB/T163-2008 and IPTS 68 and ITS 90 standards.
Example of use with portable lance WK-100.
Immersion thermocouples for melting furnaces are manufactured in accordance with the quality standard ISO 9001:2000. They are compatible and interchangeable with the most common connection and instrumentation systems on the market.
We recommend connecting disposable immersion thermocouples to a compatible portable temperature indicator WK-100 for accurate temperature measurement of liquid steel, melted iron, and copper.
To order disposable liquid metal thermocouples, select the thermocouple type (S, B, R, W), tip (aluminum or steel) and tube length (up to 1000 mm).
The MIRKIP 604 disposable immersion thermocouple is compatible with the WK-100 portable liquid metal temperature measuring rod.
Model 602 can be used with other manufacturers’ rods (please send a photo of the contact block when ordering)
Head selection depends on what metals/melts you will be working with. Fe – steel head, AL – aluminum, Cu – copper.
 |
 |
 |

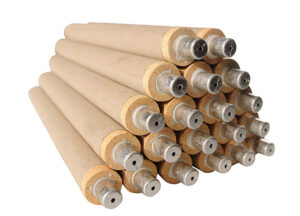

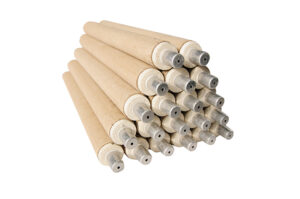

| Thermocouple 602 | Thermocouple 604 | Thermocouple with splash protection |
| Type | Permissible Deviation | Temperature range | Maximum temperature | Response time |
| B-602/604 | ±5℃/±3℃ | 1500-1700℃ | 1800℃ | 4-6 s |
| S-602/604 | ±5℃/±3℃ | 1500-1700℃ | 1800℃ | 4-6 s |
| R-602/604 | ±5℃/±3℃ | 1500-1700℃ | 1800℃ | 4-6 s |
| W-602 | ±5℃/±3℃ | 1500-1700℃ | 1800℃ | 4-6 s |
 |
 |
 |

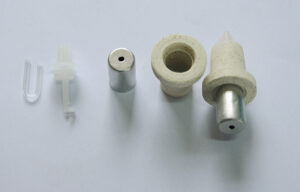

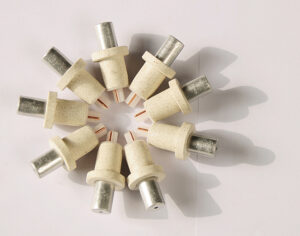

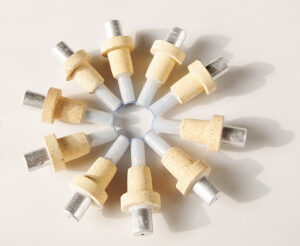

| Thermocouple head 602 | Thermocouple head 604 | Thermocouple tip with triangular base |
 |
 |
 |

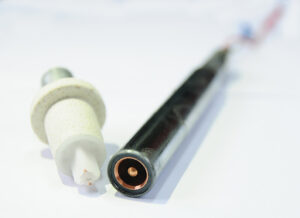

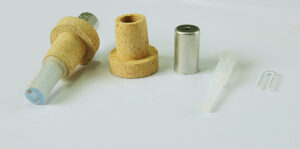

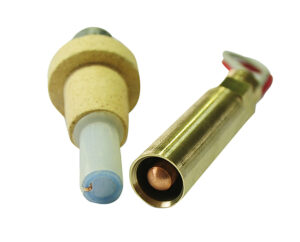

| Thermocouple tip with round base | Thermocouple head and contact block 602 | Thermocouple head and contact block 604 |
 |
 |
 |

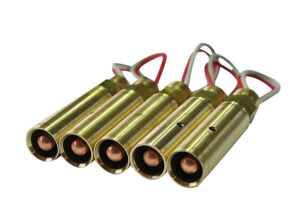

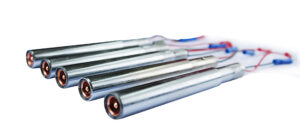

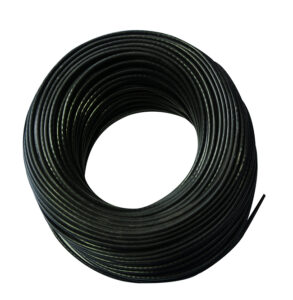

| Contact block 602 | Contact block 604 | External compensation cable |
 |
 |
|

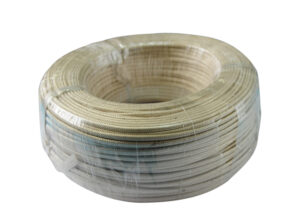

| Internal compensation cable | Temperature measurement lance |
| Photo | Model | Description |
|---|---|---|
|

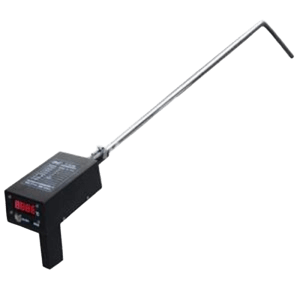

MIRKIP WK-100 | The rod is compatible with five kinds of thermocouples: S (0 - 1750℃), R (0 - 1750℃), B (5 - 1800℃), WRe3/25 (0 - 2000℃), K (0 - 1000℃) . Accuracy ≤±0.2％±1℃. Temperature resolution (℃): 1. Response time (s): 1. Power supply: rechargeable batteries |
|

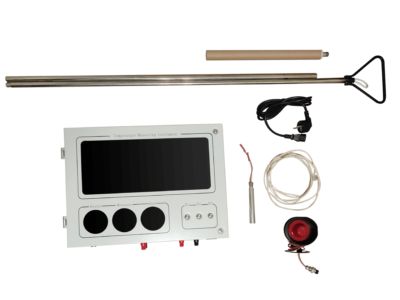

MIRKIP WK-220A | Temperature indicator. Wall mounting in any convenient place away from the object of temperature measurement. Includes a 2 meter long lancet. Cable 20 meters from the indicator device to the lancet, which allows you to approach the object at a distance of 15-20 meters, measure, and get the measurement result on the indicator |
|
MIRKIP CW-1 | Wireless temperature indicator. Wall mounting, supplied with starter unit |
You can request the necessary certificates, documentation, instructions and user guide for MIRKIP 602/604 using the special form.
You can buy MIRKIP 602/604 in UAE at a price starting from 2 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MIRKIP 602/604 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
