Paddle Flow Switch is a very low cost Ex-proof flow switch, specially designed for the Flow Monitoring of Water Source, Water-Loop Heat Pump Air Conditioning Systems and Heat Pump Water Heater
Made in Russia. brand MIRKIP, model MFSGE-316
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $349
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Much lower price.This paddle water flow switches is produced as the ExiaIICT6 ExiaIIIC T85C Explosion Proof standard, could be used in the anti explosion environment. International Protection could be IP68 (Optional). ATEX certificate for the flow switch, UL certificate for micro switch.
Features:
| Substance Temperature | от -45°C до 125°C |
| Operation Voltage | 12 V-24 V DC |
| Max Voltage | 350V DC; 300V AC |
| Max Switch Current: | 0.1A for Ex type; 1.0A for Non-Ex type |
| Max Carry Current | 2.5A |
| Contact Rating | 70VA |
| Average Pressure Loss | 0.01bar at Qmax. |
| Hysteresis depending on switch value | Minimum 0.7 l/min. |
| Applications | Oil, Water, Gas, Air (If special substances, please declare) |
| Max Pressure | 25 bar (40 bar could be custom-made) |
| Pipe Size | DN10~DN80 |
| Materials | Brass or Stainless Steel |
TR CU 012/2011 certificate specifies ambient temperature range -20°C ~ 80°C

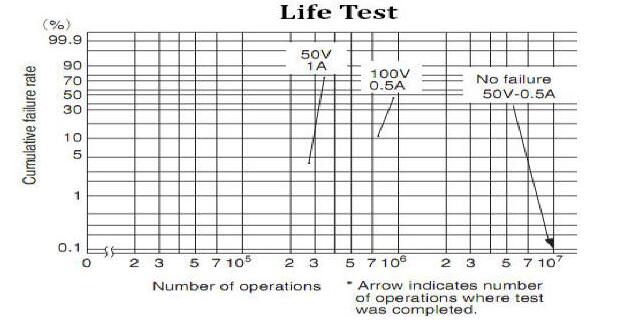

Life Time:
You can request the necessary certificates, documentation, instructions and user guide for MIRKIP MFSGE-316 using the special form.
You can buy MIRKIP MFSGE-316 in UAE at a price starting from 349 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MIRKIP MFSGE-316 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
