The samplers of our company have a wide range of applications, for sampling from hot metal liquid which need deoxidation or not. It is suitable for the quick analysis of carbon, manganese, sulfur, phosphorus and other chemical ingredients, and hydrogen, oxygen and other gases.
Made in Russia. brand MIRKIP, model SP
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $2
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

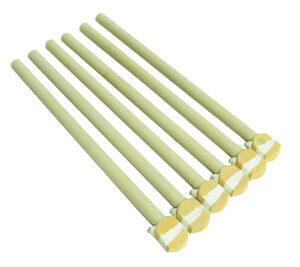

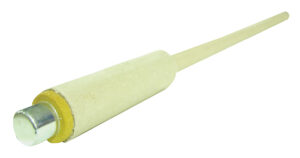

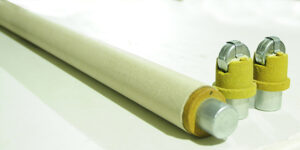

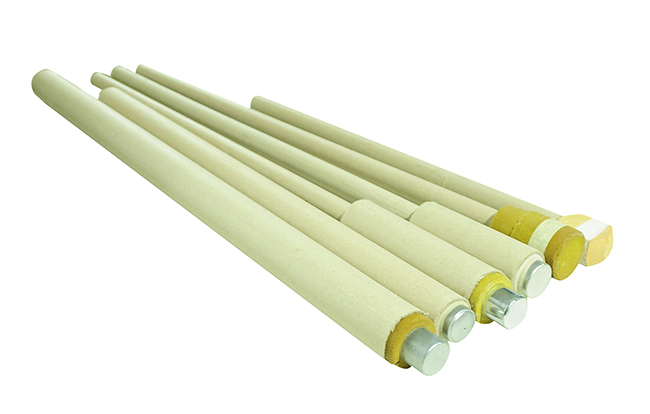

Samplers are designed for quick, safe and economical sampling of melted metal. Various design options are available, allowing selection of the most suitable and straightforward sampling and metal analysis procedure for any application. They provide the user with a representative sample of the molten bath, which after rapid surface cleaning is ready for chemical analysis. Due to the special design of these samplers, laboratory preparation time is minimized.
When a sampler was inserted into the hot metal liquid, under the static pressure, the hot metal liquid breaks the slag protective layer, through the sampler inlet, into the sampling chamber automatically. Then the alloying element content in the steel can be analyzed by spectral analysis.
Features
| Materials | |
| Paper tube : | Length can be 800/900/1000/1200/1500mm or customized |
| Slag Cap : | Steel/Aluminum |
| Size of sample:
Round. Single thickness |
For iron 34*12mm (Outer diameter*Thickness) |
| For steel a)34*12mm (Outer diameter*Thickness) b) 30*15mm(Outer diameter*Thickness) |
|
| Killing Agent : | Zirconium/Aluminum/No Killing |
| Using | |
| Sampling time : | From 3 to 5 seconds |
| Max dipping : | 6 seconds |
| Humidity of carton : | 12% max at shipment |
| WARNING | If tubes are humid, there is the risk of light projections during the immersion. It is suggested the use of personal body protections. |
| Storage | |
| Conditions : | Stock the samplers in a dry, covered place. |
| Pieces per box : | 30 |
| Pieces per pallet : | 960/720/840 |

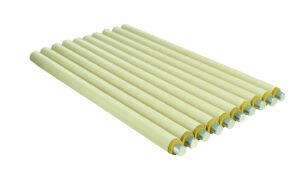

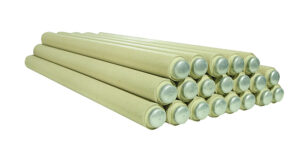

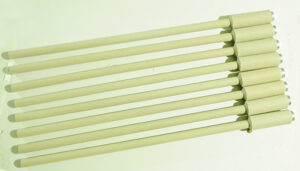

Sampler Melted Steel

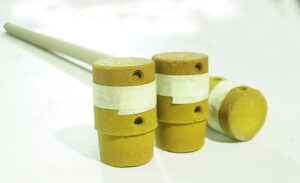

Sampler Melted Iron
You can request the necessary certificates, documentation, instructions and user guide for MIRKIP SP using the special form.
You can buy MIRKIP SP in UAE at a price starting from 2 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MIRKIP SP price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
