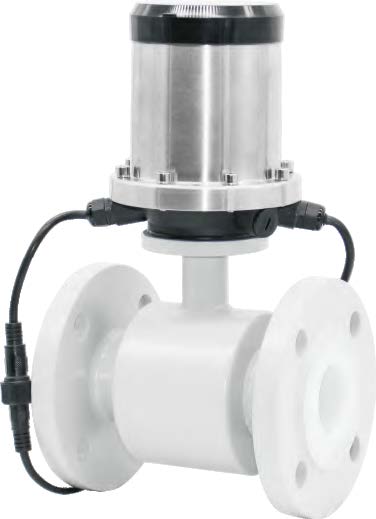

QTLD/D battery-powered electromagnetic flow meter is an ideal flow measurement device for water and wastewater systems located at remote sites.
Made in China. brand Q&T Instrument, model QTLD/D
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
QTLD/D has got various signal and communication like, pulse, RS485, all real-time flow data can be monitored on computer or mobile phone by GPRS. Beside flow, it also can measure temperature or pressure. With 5 pcs of 3.6V lithium battery, lifespan is up to 8 years, and battery can be changed when it’s used up. The transmitter shell is SS304 and the protection grade is IP68, which is available to be buried or submerged in the water.
Applications:
Features
| Size | DN10-DN2000 (3/8″~80″) |
| Accuracy | ±0.5% of reading at flow velocity≥0.5m/s |
| Velocity | 0.1~15 m/s |
| Repeatability | ≤0.17% |
| Structure | Compact / remote, cable length 10m standard, 100m max |
| Conductivity | > 5 μS/cm, demineralized water > 20 μS/cm |
| Protection Grade | Transmitter: IP65 standard, IP68 optional |
| Sensor: IP65 standard, IP68 (submersible, only available for remote type) | |
| Electrode | SS316L, Hastelloy C, Hastelloy B, Titanium,Tantalum, Platinum-iridium |
| Power Supply | 3.6V lithium Battery |
| Power Consumption | <20W |
| Signal Output | 4～20 mA， Pluse |
| Communication | RS485 MODBUS standard, HART, GPRS, PROFIBUS optional |
| Display | LCD Display,128X128mm, three lines, 4 buttons |
| Ambient Temperature | -20℃~60℃ |
| Fluid Temperature | Compact: -20℃~80℃ Remote: -20℃~120℃ |
| Liner Material | PTFE (-20℃~150℃, DN15-DN1600) |
| FEP (-20℃~120℃, DN3-DN1800) | |
| PFA (-20℃~160℃, DN3-DN800) | |
| Polyurethane (-10℃~60℃, DN40-DN1600) | |
| Neoprene (-10°C-80°C, DN4O-DN3000) | |
| Hard Rubber (-10°C~80°C, DN 40-DN3000) | |
| Ceramic (-20℃~180℃, DN15-DN200) | |
| Process connection | Flange, tri-clamp, wafer, thread, insertion |
| Sensor Material | Measuring tube: SS304 |
| Flange & housing: carbon steel (standard), SS304 / SS316 optional | |
| Transmitter Material | SS304 |
| Nominal Pressure | Flange DIN JIS ANSI PN10 / PN16 / PN25 / PN40 10K / 20K / 30 K 150# / 300# / 600# |
| Insertion, tri-clamp, wafer, thread – PN16 | |
| Display | Instantaneous flow, total flow, flow velocity |
| Function | High and low alarm, empty pipe alarm, exciting alarm, self-diagnosis |
| Totalizer | Three built-in totalizers: forward flow, reverse flow and net flow |
| Display Unit | L/s, L/m, L/h, m3/s, m3/m, m3/h, UKG, USG, gal/s, gal/m, gal/h, kg/s, kg/m, kg/h, t/s, t/m, t/h |
