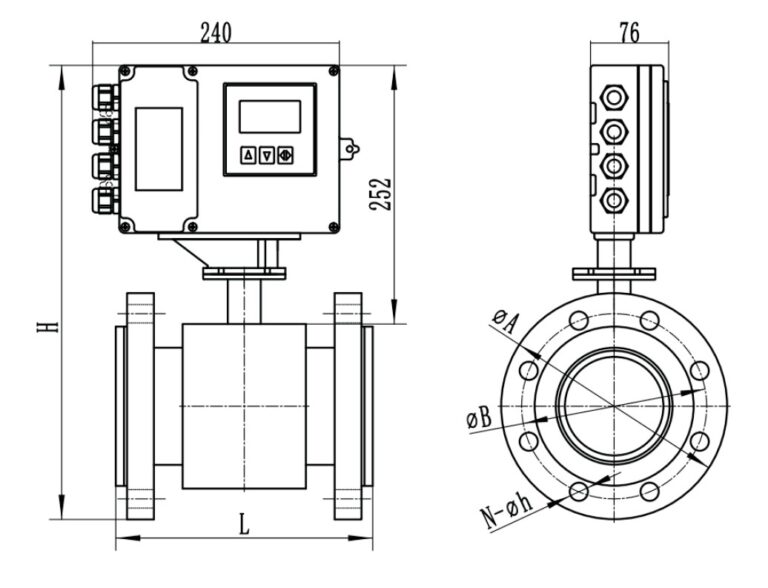

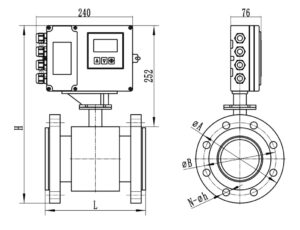

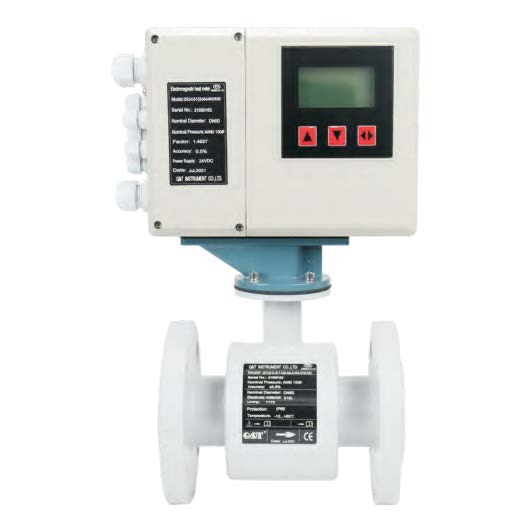

Electromagnetic BTU meter meter is composed by magnetic flow meter and two PT1000 temperature sensors for heating measurement as well as cooling applications. Widely used in single-family houses, apartment buildings, and commercial buildings.
Made in China. brand Q&T Instrument, model QTLD/H
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Features
Application
| Size | DN15-DN1000 (1/2″-40″) |
| Accuracy | ±2% of reading at flow rate ≥0.5m/s |
| Temperature sensor | PT1000 with 3m cable, max 15m available |
| Velocity | 0.1~15 m/s |
| Repeatability | ±0.17% of reading |

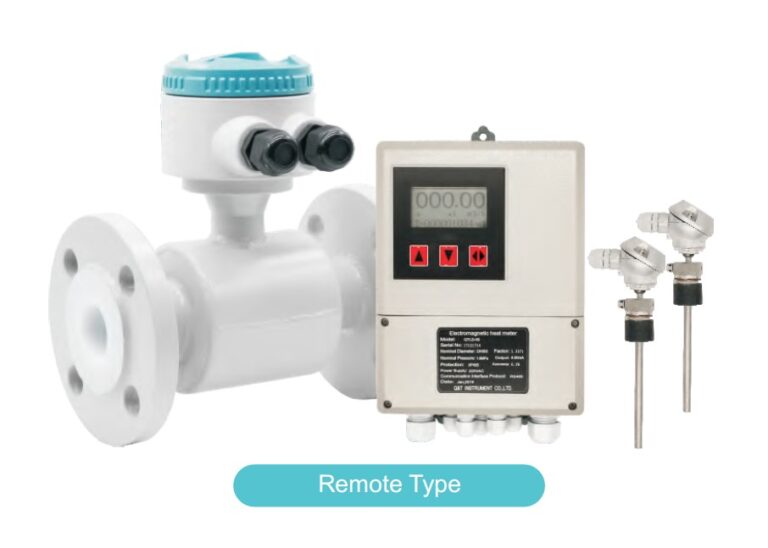

| Structure | Compact / remote, cable: 10m (standard), max 100m available |
| Conductivity | ≥20μS/cm. 5 μS/cm is optional |
| Protection Grade | Convertor: IP65 std, IP67 optional |
| Sensor: IP65 std, IP68 (submersible, only available for remote type) | |
| Electrode | SS316L, Hastelloy C, Hastelloy B, Titanium,Tantalum, Platinoiridium |
| Power Supply | 8~36 VDC, 85~265 VAC, 3.6V lithium battery |
| Power Consumption | <20W |
| Signal Output and Communication |
4~20 mA, Pulse, RS485 |
| Ambient Temperature | -20℃~60℃ |
| Fluid Temperature | Compact: -20℃~80℃ Remote: -20℃~120℃ |
| Liner Material | PTFE (-20℃~120℃, DN15-DN1600) |
| FEP (-20℃~120℃, DN25-DN1800) | |
| PFA (-20℃~120℃, DN3-DN800) | |
| Polyurethane (-10℃~60℃, DN40-DN1600) | |
| Ceramic (-20℃~180℃, DN15-DN200) | |
| Process connection | Flange, tri-clamp, wafer, thread, insertion |
| Sensor Material | Measuring tube: SS304 |
| Flange & housing: carbon steel (std), SS304 / SS316 optional | |
| Transmitter Material | Aluminium alloy with epoxy painting |
| Function | High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis |
| Totalizer | Three built-in totalizers: forward flow, reverse flow and net flow |
| Display Unit | MJ, GJ, KWh, Mwh |

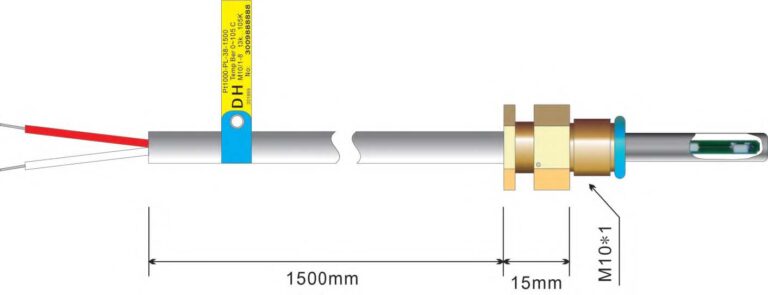

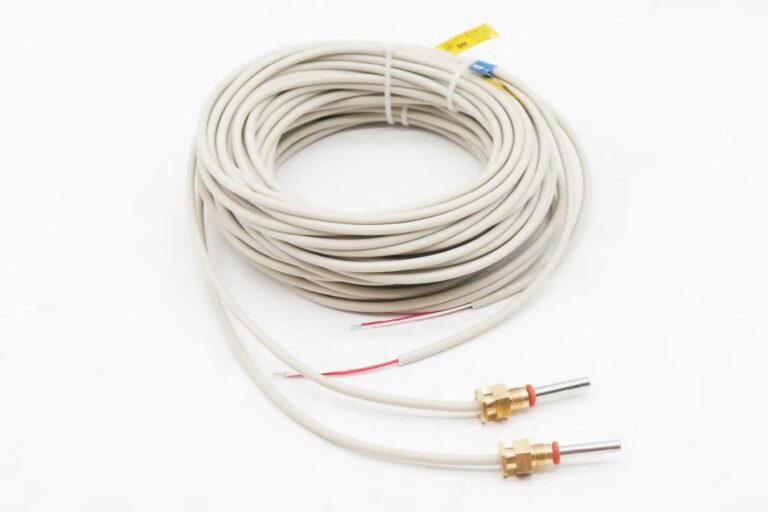

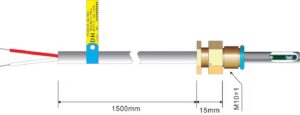

Technical specifications of PT1000 Temperature Sensor
| Standard | IEC751 and CJ128-2007 |
| Tolerant Temperature range | 0~105℃ |
| Accuracy | IEC class B |
| Test point | 0℃, 60℃, 95℃ |
| Sensor diameter | 5 mm |
| Sensor length | 45 mm |
| Cable length | 1.5 m standard, optional |
| Application pipe size | DN15, DN25, DN32 |
| Material | SS304 |
You can request the necessary certificates, documentation, instructions and user guide for Q&T Instrument QTLD/H using the special form.
