QTLD/S magnetic flow meter, also known as electromagnetic flow meter or mag meter, is widely used because less obstruction, cost-effective and accurate measurement. Electromagnetic flow meter don’t have any moving parts to wear down, reducing the need for maintenance or replacement. We offer flowmeters with a range of liners, electrodes, and sizes, which can meet various conductive liquids.
Made in China. brand Q&T Instrument, model QTLD/S
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
QTLD/S magnetic flow meter has functions of SD card and bluetooth, yellow or green OLED is available, protection grade of compact type is IP67. PT1000 temperature can be connected as BTU meter.
Applications:
Features
| Size | DN3-DN3000 mm (1/8″-120 ) |
| Accuracy | ±0.5% of reading at flow velocity ≥ 0.5m/s ±0.2% optional at flow velocity ≥ 0.5m/s |
| Velocity | 0.1~15 m/s |
| Repeatability | ≤0.17% |
| Structure | Compact / remote, cable length 10m standard, 100m max |
| Conductivity | > 5 μS/cm, demineralized water > 20 μS/cm |
| Protection Grade | Compact: lP65 standard,IP67 transmitter +lP65 sensor |
| Remote: Sensor: IP65 standard, IP65 transmitter +lP68 sensor | |
| Electrode | SS316L, Hastelloy C, Hastelloy B, Titanium,Tantalum, Platinum-iridium |
| Power Supply | 85～250 VAC (50/60 Hz), 20～36 VDC |
| Power Consumption | <20W |
| Signal Output | Analog: 4~20mA ( load resistor 0~750Ω) |
| Frequency: Forward & reverse flow output with a frequency range of 1~5000Hz | |
| Alarm: Two isolated open collector transistor (OCT) outputs for alarm signals | |
| Communication | RS485 MODBUS RTU standard, HART, GPRS, PROFIBUS Bluetooth optional |
| Display | LCD Display,128X128mm, three lines, 4 buttons |
| Ambient Temperature | -20℃~60℃ |
| Fluid Temperature | Compact: -20℃~80℃ Remote: -20℃~120℃ |
| Liner Material | PTFE (-20°C~150°C, DN15-DN1600) |
| FEP (-20°C~120°C, DN3-DN1800) | |
| PFA (-20°C~160°C, DN3-DN800) | |
| Polyurethane (-10°C~60°C, DN40-DN1600) | |
| Neoprene (-10°C~80°C, DN40-DN3000) | |
| Hard Rubber （-10°C~80°C, DN 40-DN3000） | |
| Ceramic (-20°C~180°C, DN15-DN200) | |
| Sensor Material | Measuring tube: SS304 |
| Flange & housing: carbon steel (standard), SS304 / SS316 optional | |

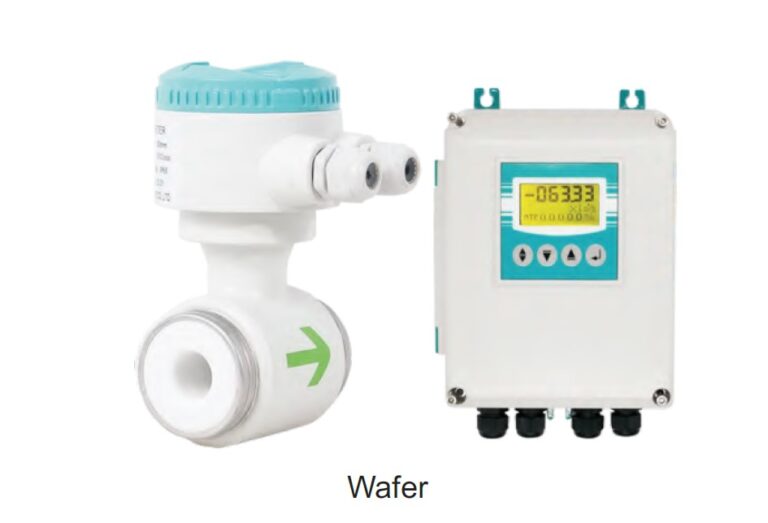

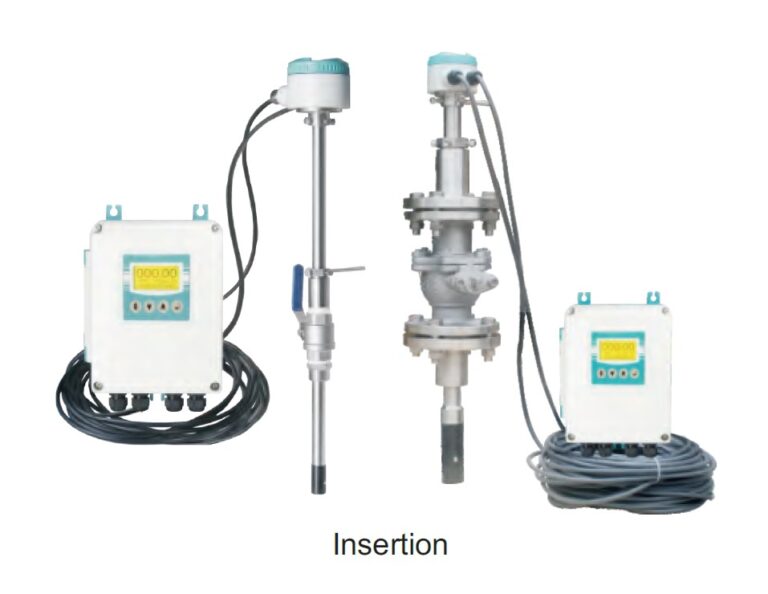

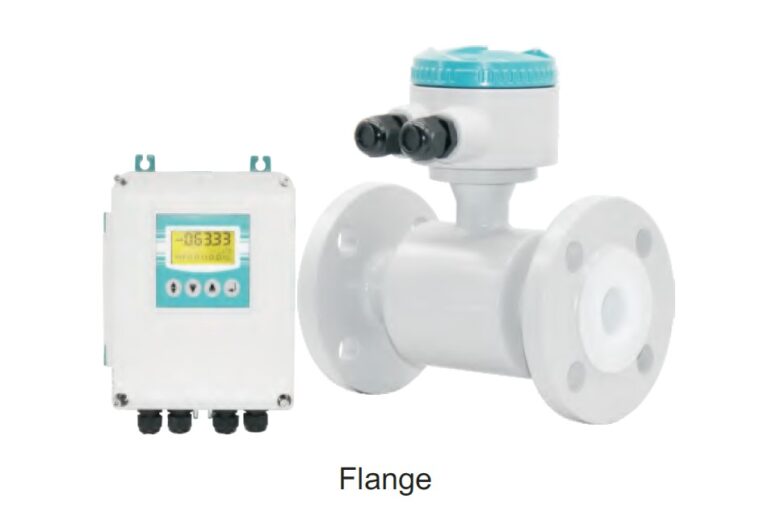

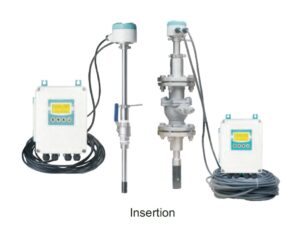

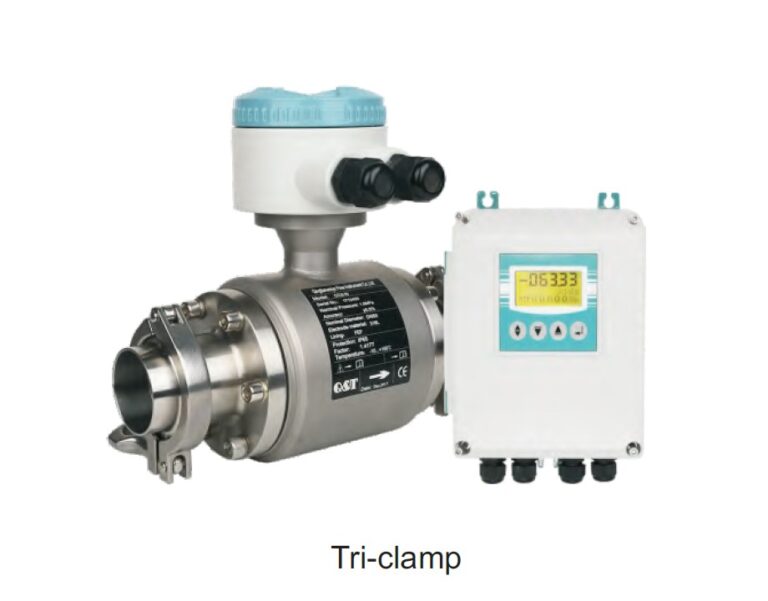

| Process Connection | Flange, tri-clamp, thread, wafer, insertion |
| Transmitter Material | Aluminium alloy with epoxy painting |
| Data Logger | SD Card |
| Display | Instantaneous flow, total flow, flow velocity LCD, green OLED, yellow OLED |
| Function | High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis |
| Totalizer | Three built-in totalizers: forward flow, reverse flow and net flow |
| Display Unit | L/s, L/m, L/h, m3/s, m3/m, m3/h, UKG, USG gal/s gal/m gal/h kg/s kg/m kg/h t/s t/m t/h |
| Language | English, Chinese, Italian, Portuguese, French, Spanish, Korean |
Main Performance of Electrode Material
| Electrode Material | Application |
| SS316L | Applicable to industrial and municipal water, wastewater and low corrosive mediums. Widely used in petroleum, chemical industries. |
| Hastelloy B | Strong resistance to hydrochloric acids below the boiling point. Resist against oxidable acids, alkali and non-oxidable salts, like vitriol,phosphate, hydrofluoric acids and organic acids. |
| Hastelloy C | Exceptional resistance to strong solutions of oxidizing salts and acids, like Fe+++, Cu++, Nitric acids, mixed acids. |
| Titanium | Titanium can withstand corrosive mediums such as seawater, chloride salt solutions, hypochlorite salts, oxidable acids (including fuming nitric acids), organic acids, and alkali. Not resistant to high purity reducing acids such as sulphuric acids, hydrochloric acids. |
| Tantalum | Highly resistant to corrosive mediums.Applicable to all chemical mediums except Hydrofluoric Acids, Oleum and Alkali. |
| Platinum-iridium | Applicable to all chemical mediums except for Ammonium salts and Fortis. |
Main Performance of Liner Material
| PTFE | Best chemical resistance, withstand boling hydrochloric acid, sulfuric acid,nitric acid, alkali and a variety of organic solvents. Poor wear resistance and poor adhesion. |
| PFA | Highly resistant to chemicals Performance well under vacuum pressure condition. |
| Neoprene | Excellent elasticity, good abrasion resistance. Withstand the corrosion of low-concentration acid, alkali, salt and other media. Not resistant to corrosion by oxidizing medium. |
| Polyurethane | Strong abrasion resistant, applicable for slurries and muds. Poor corrosion resistance, can’t be used for corrosive medium. |
| Hard Rubber | Withstand the corrosion of hydrochloric acid, acetic acid, oxalic acid, ammonia water, phosphoric acid and 50% sulfuric acid, sodium hydroxide, potassium hydroxide. Use for general acid, alkali, and salt solutions, not resistant to the corrosion of strong oxidants. |
| Ceramic | Withstands high temperature, corrosion and wear smooth inner Totally vacuum resistant |
You can request the necessary certificates, documentation, instructions and user guide for Q&T Instrument QTLD/S using the special form.
You can buy Q&T Instrument QTLD/S in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Q&T Instrument QTLD/S price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
