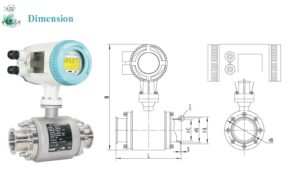

QTLD/T tri-clamp magnetic flow meter is designed for sanitary applications, size is DN15-DN200, the sensor is SS304 or SS316 and lined with PFA. With tri-clamp, the magnetic flow meter can be installed and torn down easily to clear, it meet the strict requirements of food-processing and pharmaceutical industries.
Made in China. brand Q&T Instrument, model QTLD/T
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Applications:
Features
| Size | DN15-DN200 (1/2″-8″) |
| Accuracy | ±0.5% of reading at flow rate ≥ 0.5m/s, ±0.2% optional at flow velocity ≥ 0.5m/s |
| Velocity | 0.1~15 m/s |
| Repeatability | ≤0.17% |

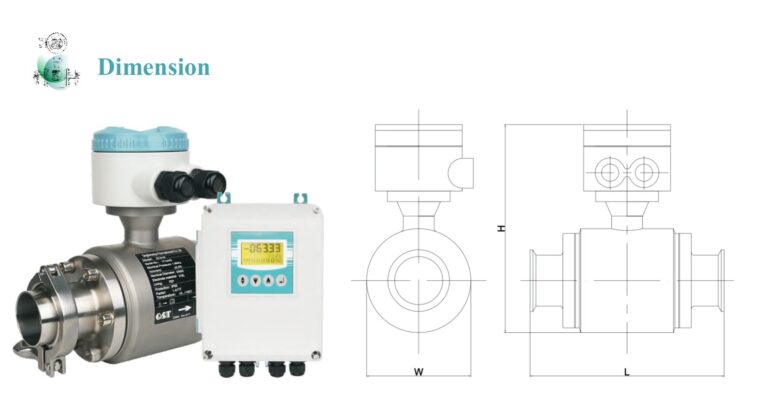

| Structure | Compact / remote, cable length 10m standard, 100m max |
| Conductivity | > 5 µS/cm, demineralized water > 20 µS/cm |
| Protection Grade | Transmitter: IP65 standard, IP67 optional |
| Sensor: IP65 standard, IP68 (submersible, remote type only) | |
| Electrode | SS316L |
| Power Supply | 85~250 VAC (50/60 HZ), 20~36 VDC |
| Power Consumption | <20W |
| Signal Output | Analog: 4~20 mA (load resistor 0~750 Ω) |
| Frequency: Forward & reverse flow output with a frequency range of 1~5000Hz | |
| Alarm: Two isolated open collector transistor (OCT) outputs for alarm signals | |
| Communication | RS485 MODBUS standard, HART, GPRS, PROFIBUS optional |
| Display | LCD Display, 128X128mm, three lines, 4 buttons |
| Ambient Temperature | -20℃~60℃ |
| Fluid Temperature | Compact: -20℃~80℃, Remote: -20℃~120℃ |
| Liner material | PFA |
| Sensor Material | Measuring tube: SS304 |
| Tri-clamp & housing: SS304 standard, SS316 optional | |
| Transmitter Material | Aluminium alloy with epoxy painting |
| Nominal Pressure | 1.6 Mpa |
| Display | Instantaneous flow, total flow,flow velocity |
| Function | High and low alarm, empty pipe alarm, exciting alarm, self-diagnosis |
| Totalizer | Three built-in totalizers: forward flow, reverse flow and net flow |
| Display Unit | L/s, L/m, L/h, m³/s, m³/m, m³/h, UKG, USG, gal/s, gal/m, gal/h, kg/s, kg/m, kg/h, t/s, t/m, t/h |
| Language | English, Chinese, Italian, Portuguese, French, Spanish, Korean |
You can request the necessary certificates, documentation, instructions and user guide for Q&T Instrument QTLD/T using the special form.
You can buy Q&T Instrument QTLD/T in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Q&T Instrument QTLD/T price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
