Rotronic HC2A Humidity Probes Filters and Filter Carriers

Description of Rotronic HC2A

Filter carriers protect the humidity and temperature sensors and probes against mechanical damage. Filters act as a protective barrier against contaminants/pollutants that can influence the sensor. When choosing the correct combination of filter carrier and filter there are many factors to consider. Specific conditions such as high air velocities, pollutants in the air, disinfection and cleaning routines, mechanical impacts, high bioactivity, condensation, airborne chemical contaminants and required response time are some of the many considerations.

Most common filters and filter inserts. Choose based on the Probe technology HC2 or HC2A.

Filter Carrier for HC2A-S/S3 Probes

• SPA-PCB-PE, Black Polycarbonate filter carrier, Polyethylene filter 40-50µm, -50…100 °C

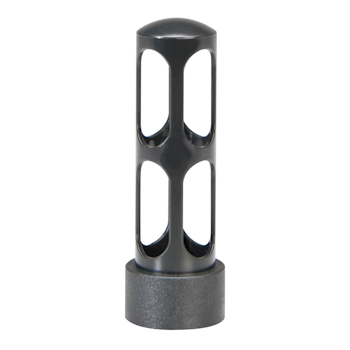

• SPA-PCB-WM, Black Polycarbonate filter carrier, wire mesh filter 10µm, -50…100 °C

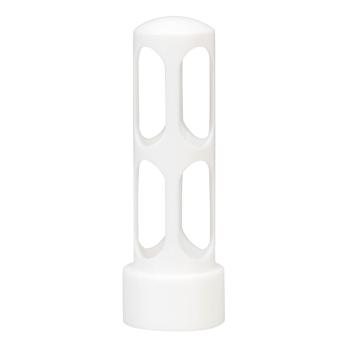

• SPA-PCW-WM, White Polycarbonate filter carrier, wire mesh filter 10µm, -50…100 °C

Filter Carrier for HC2A-IC Probes

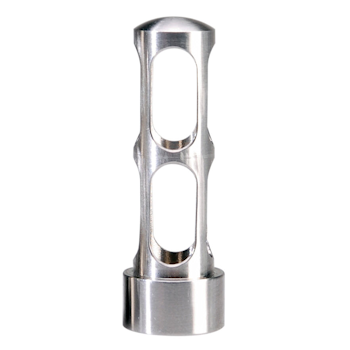

• SPA-SS-WM, Steel 1.4301 filter carrier, wire mesh filter, 10µ, -100…200 °C
• SPA-SSS, Filter and filter carrier, Sintered steel 25µm, -100…200 °C
• SPA-WM, filter insert no carrier, wire mesh 10µ, -100…200 °C

Filter Carrier for HC2A-SM/-IM/-IE Probes

• SPA-SS-WM-SM, Steel 1.4301 filter carrier, wire mesh filter, 10µ, -100…200 °C
• SPA-WM-SM, filter insert no carrier, wire mesh 10µ, -100…200 °C

HC2A-IC / Filter insert, no carrier

• SP-M15, Wire mesh, 20…25µm, -100…200 °C
• SP-S15, Sintered steel, 5µm, -100…200 °C
• SP-T15, Teflon, 10µm, -80…200 °C

Filter Carrier for HC2-S/S3 Probes

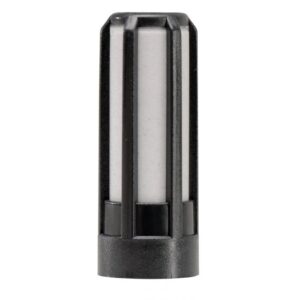

• NSP-PCB-PE, Black Polycarbonate filter carrier, Polyethylene filter 20µm, -50…100 °C
• NSP-PCW-PE40, White Polycarbonate filter carrier, Polyethylene filter 40µm, -50…100 °C

HC2-IC / Filter insert, no carrier

• SP-M15, Wire mesh, 20…25µm, -100…200 °C
• SP-S15, Sintered steel, 5µm, -100…200 °C
• SP-T15, Teflon, 10µm, -80…200 °C
