High Accuracy Humidity and Temperature Measurement
Made in Swiss. brand Rotronic, model HC2A-S3A
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $464
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

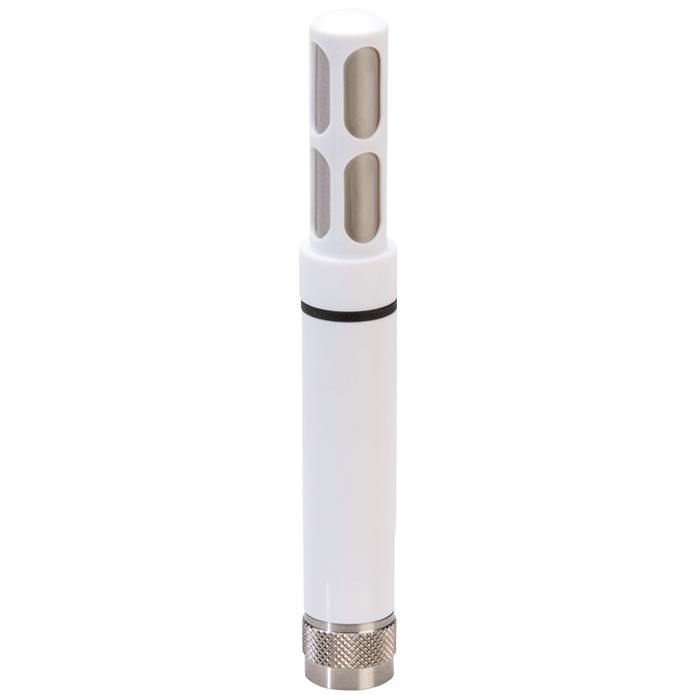

The meteorological Rotronic Humidity and Temperature probe can be used in all Rotronic Meteo applications with temperatures from -50…80 °C / 0…100 % RH. With an outstanding accuracy ± 0.8% RH ±0.1°C. The probe has a new humidity sensor with additional protection and is equipped with a 10 µm pore size wire-mesh filter for accurate measurement in high-humidity applications.
Applications
| Supply voltage | 3.3…5 VDC |
| Current consumption | Approx. 5 mA (adjusted at 3.3 VDC) |
| Load | > 10 kΩ |
| Protection rating | IP65 (except the sensor area) |
| Digital interface | UART (19200 baud fixed) |
| Protocols | • RoASCII (Default)
• MODBUS (setting with HW5) |
| Analog outputs | 2 x 0…1 V |
| Analog outputs Parameters | • Humidity (default)
• Temperature (default) • Dew point (setting with HW5) • Frost point (setting with HW5) |
| Analog output scaling | • Humidity (0…100 %rh = 0…1 V)
• Temperature (-40…60 °C = 0…1 V) • Freely settable with HW5 |
| Timing | 1st measurement after 1.5 s Measurement interval of 1 s |
Standard Precision
| Order code | Type | Accuracy @ 23 °C | Application range | Sensor element | Long-term stability |
| HC2A-S3A | High-End Meteo* | ±0.8 %rh ±0.1 K | -50…80 °C4 / 0…100 %rh | HYGROMER HM1-SK | <1 %rh per year with clean air |
* The housing is full white to avoid any heating from sun radiation.
Computer Connection
The cable AC3001 allows direct connection to a computer via USB and, with use of the HW5 software to adjust the HC2A-S3A probe’s parame- ters such as:
Possible Filters
The HC2A-S3A is tested together with the standard filter SPA-WM (wire-mesh). Standard: HC2A-S3A + SPA-PCW-WM with filter (wire-mesh)
| Order code | Filter carrier | Filter element | Pore size | Application range |
| SPA-PCW-PE |
Polycarbonate, white |
Polyethylene, white | 40-50 μm |
-50…80 °C |
| SPA-PCW-PTFE | PTFE, white | 10 μm | ||
| SPA-PCW-WM | Wire mesh 1.4401 | |||
| SPA-PE |
No filter carrier, only filter |
Polyethylene, white | 40-50 μm | |
| SPA-PTFE | PTFE, white | 10 μm | ||
| SPA-WM | Wire mesh 1.4401 |
You can request the necessary certificates, documentation, instructions and user guide for Rotronic HC2A-S3A using the special form.
