The Rotronic compact Data Loggers cover the most important measurement parameters and can measure climatic parameters such as humidity, temperature and ambient pressure. Small in size but accurate and fully compatible with the free evaluation and configuration Software HygroSoft.
Logging mode
Start/ Stop mode or endless mode with the possibility for changeable intervals. Also, the log mode can be started with the AutoStart function.

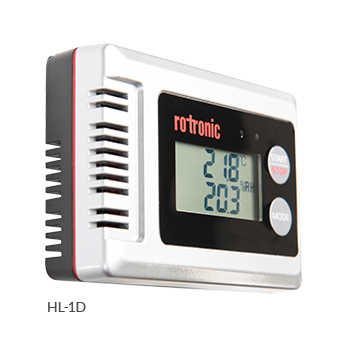

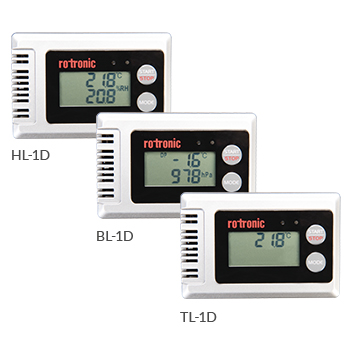

HL-1D Humidity and Temperature Data Logger
The HL-1D is Rotronic’s bestselling and smallest humidity logger available from Rotronic.
BL-1D Ambient Pressure and Dew Point Humidity Data Logger
In addition to humidity and temperature, the BL-1D also logs ambient pressure and dew point.
TL-1D Temperature Datalogger
The TL-1D temperature data logger: compact, accurate and inexpensive.
Applications
| Humidity Measurement | |
| Measurement Method | ROTRONIC HYGROMER® IN-1 |
| Accuracy | ±2% rh @ 23 °C ±5 K (10…90% rh) ±5% rh others |
| Resolution | 0.1% rh |
| Measurement Range | 0…100% rh (non-condensing) |
| Temperature | |
| Measurement Method | NTC |
| Accuracy | ±0.3 K @ -30…70 °C / ±0.5 K others |
| Resolution | 0.1 °C |
| Measurement Range | -30…70 °C |
| Pressure | |
| Measurement Method | Bosch BMP280 |
| Accuracy | ±3 hPa @ 0…65 °C / ±5 hPa others |
| Resolution | 1 hPa |
| Measurement Range | 300…1100 hPa |
| Dew Point | |
| Measurement Method | Calculation (from % rh and °C) |
| Calculation Method | WMO Standard |
| Logging Interval | Storage capacity reached after |
| 30 sec. | 11 days 2 hours |
| 5 min. | 111 days |
| 30 min. | 1 year 301 days |
| 45 min. | 2 years 270 days |
| 60 min. | > 3 years |
| Delivery Package | |
| • Battery, CR2 • Short instruction manual • Function and calibration certificate |
|
| General Specifications | |
| Logging Interval | 30 s..24 h |
| Storage Capacity | 32,000 lines |
| Function | MIN / MAX / AVG |
| Display | LCD, 2 lines |
| Display Refresh Rate | 5 sec. (standard) (in logging mode same as the logging interval) |
| LED Indicators | 2 LEDs Right LED flashes green when logging data, left LED flashes red when limits reached or low battery |
| Communication | USB-Mini port |
| Software | HW4 V3.4.1 or later (BL-1D: V3.9 or later) included |
| Application Range | -30…70 °C 0…100% rh (non-condensing) |
| Battery | 1 x CR2 |
| Battery Life | 1 year (1 h logging interval, room temperature) |
| IP Protection Class | IP67 |
| Weight | 85 g |
| Dimensions | 90 x 60 x 23 mm |
| FDA/GMP Compatibility | FDA 21 CFR Part 11 / GAMP 5-compliant HW4 software |
| Standards | EN 12830 |
| Accessories | Mini USB cable AC0003 (contained in xL-1D-SET) |
