Made in Swiss. brand Rotronic, model RMS-LOG-L-D
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $661
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

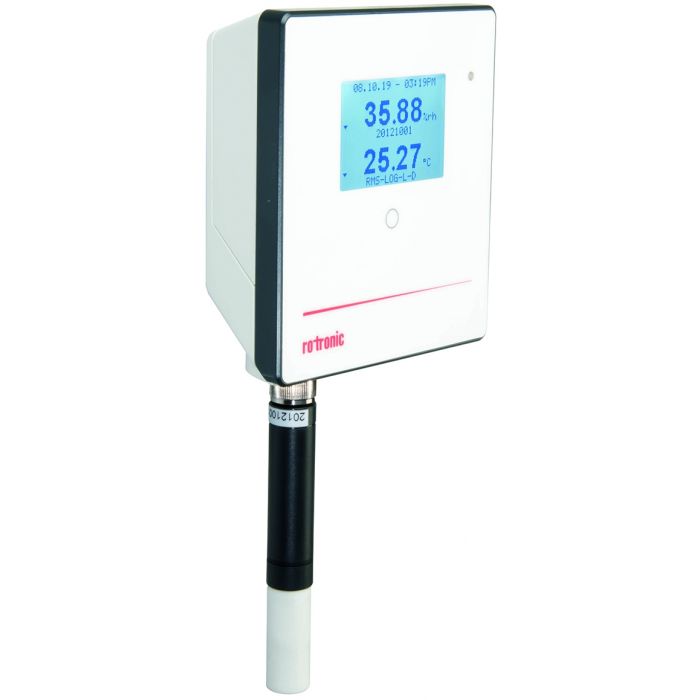

The RMS-LOG-L-D stores up to 44,000 pairs of measured values from the interchangeable CO2, differential pressure, humidity, temperature or low dew point probe, and transmits them to the RMS database via LAN link. Thanks to its autonomous operation, the logger can display current readings as well as visual and audible alarms even if the power supply and communication should fail temporarily.
Compatible with
Applications
| General specifications | |||
| Measured parameters | Humidity & temperature, CO2, differential pressure, LDP | ||
| Range of application | -40..70 °C / 0..100 %RH | ||
| Storage conditions | -40..30 °C / 0..95 %RH | ||
| Maximum altitude | 2000 m ASL | ||
| Power supply | 24 VDC ±10 % / <100 mA / Battery: RMS-BAT
(2xAA, LiSocl2) / PoE: 802.3af-2003, Class 1 |
||
| AC adapter requirements | 24 VDC ±10 % / 4 W nominal /
<15 W power-limited |
||
| Battery life | 3 years (at 23 °C, measurement interval 1 min., HCD-S probe) | ||
| Device data | |||
| Measurement interval | 10 s to 15 min. | ||
| Startup time | < 10 s | ||
| Order code | RMS-LOG-L | RMS-LOG-868 | RMS-LOG-915 |
| Interfaces | Ethernet | ISM 868 MHz | ISM 915 MHz |
| Indoor wireless range | – | 20..50 meters | 15..25 meters |
| Protocols | HTTP / MODBUS TCP | ||
| Ethernet cable requirement | Min. Cat. 5, SFTP, max. 30 m | ||
| Conformity with standards | |||
| FDA / GAMP directives | FDA CFR21 Part 11 / GAMP 5 | ||
| Housing / Mechanics | |||
| Housing material | ABS | ||
| Fire protection class | UL94 –V2 | ||
| Dimensions | 105 x 113 x 38 mm | ||
| IP protection class | IP65 | ||
| Weight | 200 g | ||
You can request the necessary certificates, documentation, instructions and user guide for Rotronic RMS-LOG-L-D using the special form.
You can buy Rotronic RMS-LOG-L-D in UAE at a price starting from 661 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic RMS-LOG-L-D price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Data Loggers, Rotronic Monitoring System RMS
