Data logger with two integrated analog-to-digital converters to which two sensors can be connected for high-precision analog measurement.
Made in Swiss. brand Rotronic, model RMS-ADC-L-R
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $603
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The RMS-ADC-L-R is a data logger with two integrated analog-to-digital converters to which two sensors can be connected for high-precision analog measurement. The data logger stores 44,000 pairs of measured values and sends them to the RMS database via LAN.
Compatible with:
Applications
| General specifications | |
| Measurement interval | 10 s to 15 min |
| Startup time | < 10 s |
| Software compatibility | ³ V1.3.0 |
| Protocols | HTTP / MODBUS TCP |
| Ethernet cable requirement | Min. Cat 5, SFTP, max. 30 m |
| Application range | -40…70 °C, non-condensing |
| Storage conditions | -20…30 °C, non-condensing |
| Sensor power supply (Vex) | 24 V / 80 mA max. |
| Current consumption | < 160 mA |
| AC adapter requirements | 24 VDC ±10 %, 4 W minimum,
> 5 W power-limited |
| PoE | 802.3af-2003, Class 1 |
| Conformity with standards | |
| Soldering material | Lead free / RoHS conformity |
| FDA/GAMP directives | FDA CFR21 Part 11 / GAMP 5 |
| Device data | |
| Accuracy | ± 0.03 % full-scale |
| Temperature accuracy | ± 0.02 % full-scale / °C |
| Measuring resistance / Load | 25 kW at voltage input 250 W at current input |
| Number of measuring points | 1 or 2 analog inputs |
| Measurement ranges | 0…1 V, 0…5 V, 0…10 V, 0…20 mA and
4…20 mA |
| Storage capacity | 44,000 data points |
| Sensor quality | • Detection of sensor interruption (open loop)
• Detection of overload • Detection of underload at 4…20 mA |
| Housing / Mechanics | |
| Housing material | PC. ABS |

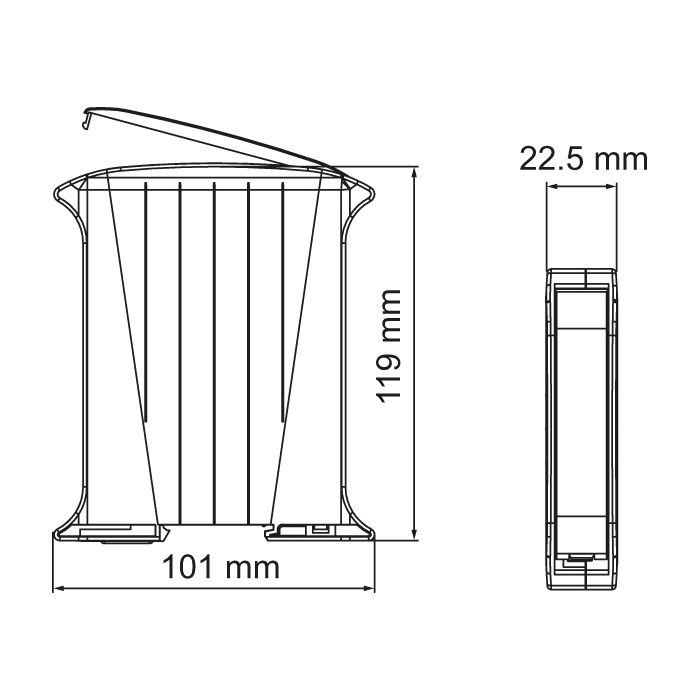

| Dimensions | 110 x 119 x 22.5 mm |
| IP protection class | IP20 |
| Fire protection class | UL94-V0 |
| Weight | 125 g |
You can request the necessary certificates, documentation, instructions and user guide for Rotronic RMS-ADC-L-R using the special form.
You can buy Rotronic RMS-ADC-L-R in UAE at a price starting from 603 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic RMS-ADC-L-R price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Data Loggers, Rotronic Monitoring System RMS
