High-precision measurement and long-term stability
Made in Swiss. brand Rotronic, model RMS PCD-S
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

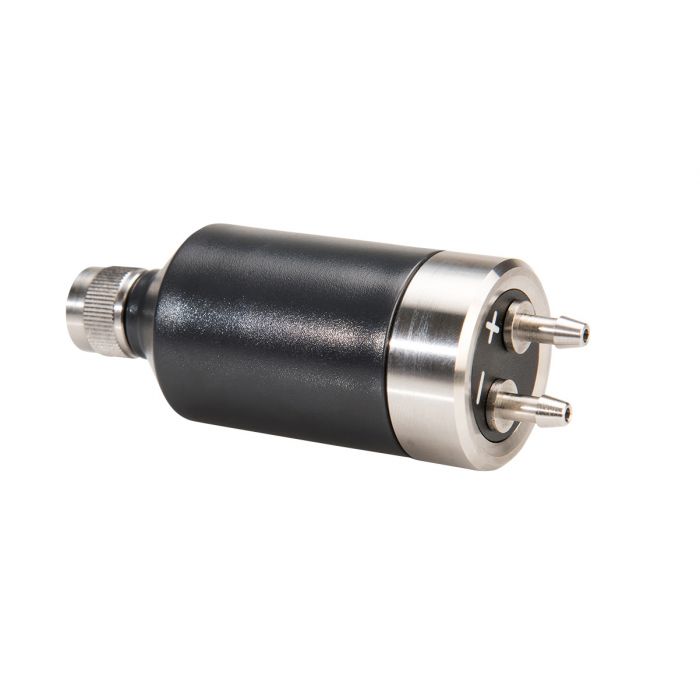

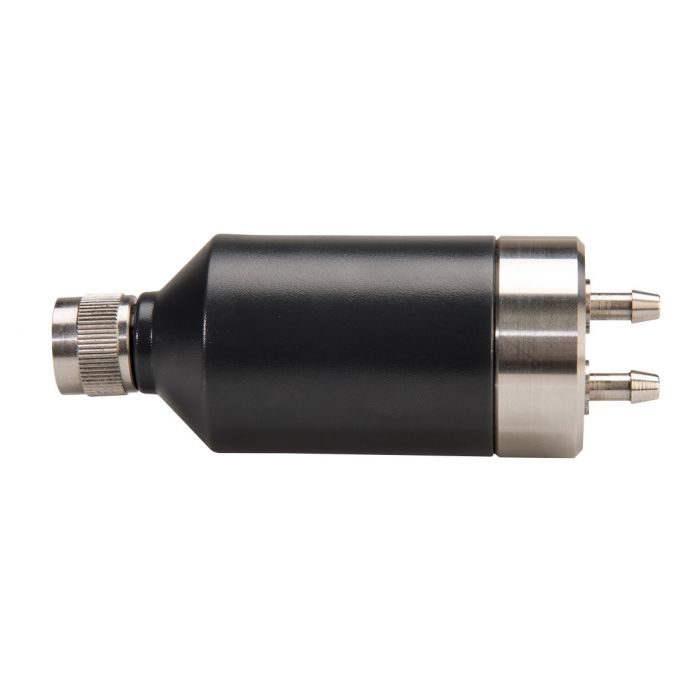

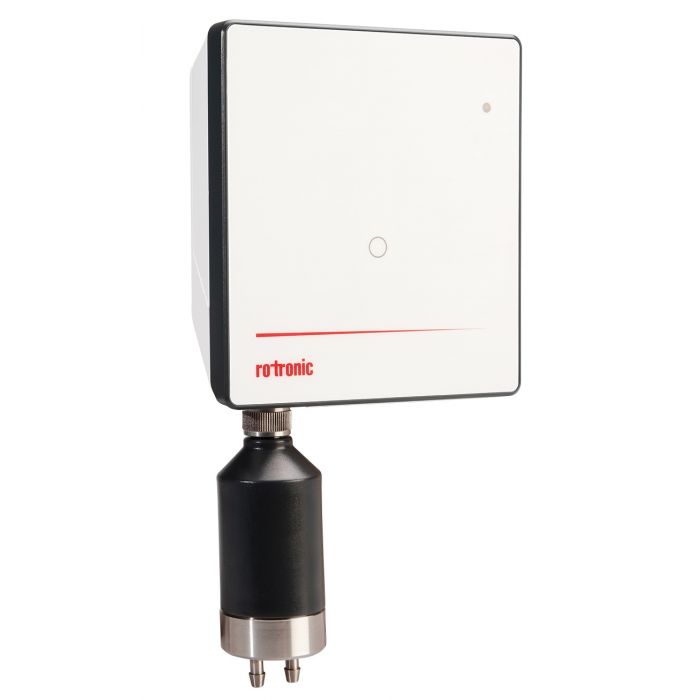

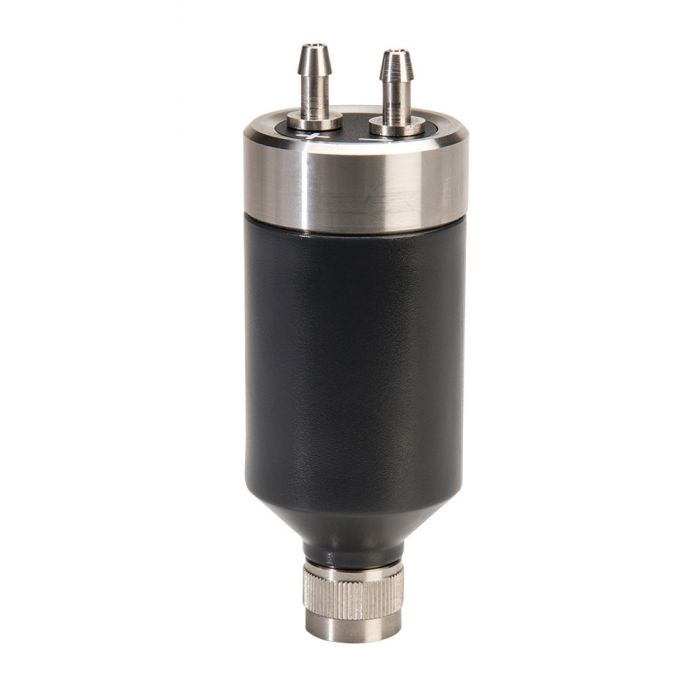

The Rotronic differential pressure probes are ideal for clean rooms, operating theaters and applications where even minor differences in pressure can have a big effect. Thanks to our two different measurement methods (thermal mass flow measurement and diaphragm measurement), we offer the perfect solution for every requirement. Together with other measurement parameters, these probes can be integrated in RMS perfectly or used with our latest HF5A transmitter.
Compatible with
Applications
| Sensor type | Flow | Membrane |
| Parameter | Differential pressure | |
| Accuracy 1 at 23 °C ±3 K | ±1% FS | ±1% FS 2 |
| Long-term stability 3 | ±0.1% FSS/year | ±2% FSS/year for ±25Pa probe
±1% FSS/year for ±50Pa probe ±0.5% FSS/year for ±100Pa probe ±0.25% FSS/year for ±250Pa und ±500Pa probes |
| Zero point compensation 4 | Automatic, 1x per measure- ment interval | Manual, with external tube; via RMS software 5 |
| Medium | Air | Air & non-aggressive gases |
| Ambient pressure compensation | Automatic | Not necessary |
| Adjustment and calibration | Factory adjustment/calibration: 5 points
Customer adjustment: max. 9 points |
|
| Measurement range | -25…+25 Pa / -50…+50 Pa / -100…+100 Pa /
-250…+250 Pa / -500…+500 Pa |
|
| Pressure resistance (burst pressure) | 5 bar | 0.7 bar |
| Leak rate | <180 µl/min. | 0 µl/min. |
| Startup time | <0.5 s | |
| Measurement interval | 1 s probe
³10s RMS / 1s Modbus |
|
| Response time t 63 | <1 s | |
| Range of application | -20…+80°C (0…+70°C temp.-comp.) 0…95% RH non-condensing | |
| Voltage | 3.3–5.5 V | |
| Current consumption | 30 mA (avg.) | 12 mA (avg.) |
| Battery life
RMS wireless logger |
60d @ 10s interval | 130d @ 10s interval |
| 350d @ 60s interval | 650d @ 60s interval | |
| Battery life LAN logger | 70d @ 10s interval | 180d @ 10s interval |
| 395d @ 60s interval | 840d @ 60s interval | |
| Protocols | Modbus RTU | |
Housing / Mechanical parts
| Housing material | Polycarbonate (housing) Stainless steel DIN 1.4305 (nuts, connectors) |
| Fire protection class | Corresponds to UL94-HB |
| Dimensions | Ø 32 mm x 87 mm |
| Pressure connections | Tubing connector internal Ø 4 mm x 10 mm |
| Weight | 60 g |
| IP protection class | IP65 |
You can request the necessary certificates, documentation, instructions and user guide for Rotronic RMS PCD-S using the special form.
You can buy Rotronic RMS PCD-S in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic RMS PCD-S price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Data Loggers, Rotronic Monitoring System RMS
