Very low current consumption, the highest accuracy, and measurement results within 90ms
Made in Swiss. brand Rotronic, model RMS HCD-IC102
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $766
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

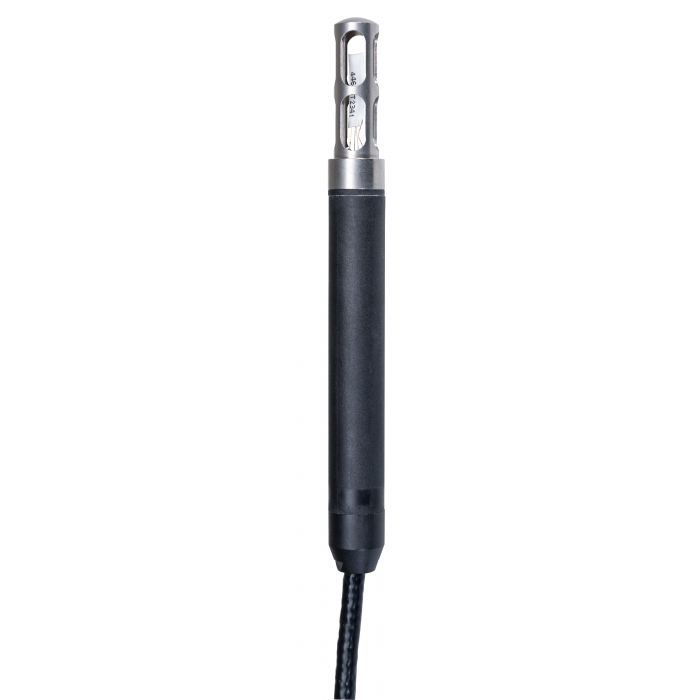

The RMS-HCD-IC digital probe is characterized by its high performance. Very low current consumption, the highest accuracy, and measurement results within 90 ms (electronics) are its outstanding features. This is due to the new AirChip, which together with the new HYGROMER® HT-1 sensor forms a powerful combination.
Applications
| Humidity sensor | HYGROMER HT-1 |
| Temperature sensor | PT 1000, Class 1/3 B (RMS-HCD-S) PT 100, Class 1/3 B (RMS-HCD-IC) |
| Operating humidity | 0…100 %RH |
| Operating temperature | -40…+85 °C RMS-HCD-S
-40…+85 °C RMS-HCD-IC Electronics -100…200 °C 1 RMS-HCD-IC Sensor head |
| Accuracy @ 23 °C | ±0.8 %RH ±0.1 K |
| Long-term stability | 1 %RH / year |
| Startup time | 50 ms (RMS-HCD-S)
90 ms (RMS-HCD-IC) |
| Measurement interval | 500 ms |
| Response time sensor | t63: <15 s without filter, (temperature and humidity) |
| Maximum wind velocity | 3.5 m/s without filter |
| Supply voltage | 2.8.. 5.5 VDC (RMS-HCD-S)
3.3. 5.5 VDC (RMS-HCD-IC) |
| Current consumption | 0.5 mA (RMS-HCD-S)
<3 mA (RMS-HCD-IC) |
| Protection rating | IP65 (except sensor area) |
| Material | PC, PPS, stainless steel 1.4301 (HCD-SX) PC, PPS, stainless steel 1.4301 (HCD-IC) |
| Digital interface | UART |
| Protocol | Modbus RTU |

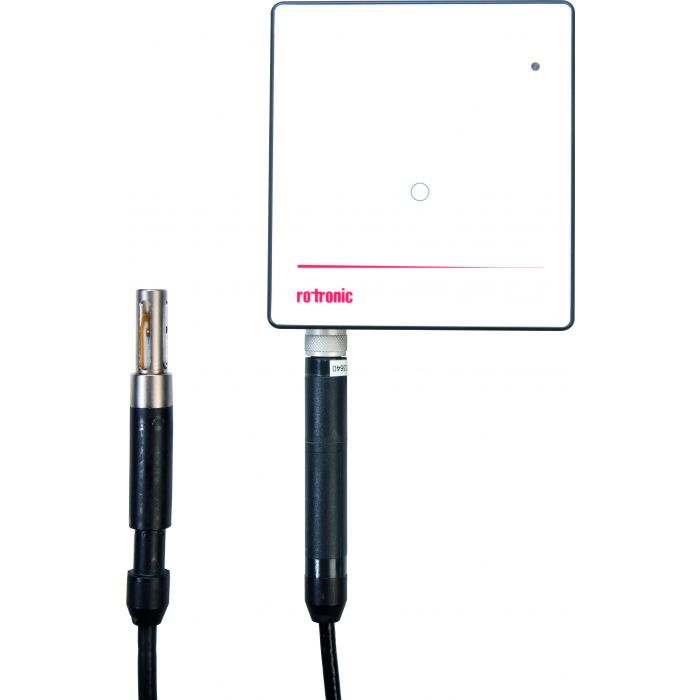

| Compatible devices | RMS-LOG-L RMS-LOG-868 RMS-LOG-915 |
| Compliance | GAMP5
FDA 21 CFR Part 11 |
| Order code | Type |
| RMS-HCD-S | Standard probe, black |
| RMS-HCD-S3 | Standard probe, white |
| RMS-HCD-IC102 | Industrial probe, 2 m cable |
Possible filters
| Order code | Filter carrier | Filter element | Pore size | Application range |
| SPA-PCB-PE |
Polycarbonate, black |
Polyethylene, white | 40-50 μm |
-50…100 °C |
| SPA-PCB-PTFE | PTFE, white | 10 μm | ||
| SPA-PCB-WM | Wire mesh 1.4401 | |||
| SPA-PCW-PE |
Polycarbonate, white |
Polyethylene, white | 40-50 μm | |
| SPA-PCW-PTFE | PTFE, white | 10 μm | ||
| SPA-PCW-WM | Wire mesh 1.4401 | |||
| SPA-PE | No filter carrier, only filter | Polyethylene | 40-50 μm | |
| SPA-PTFE | PTFE, white | 10 μm | -100…200 °C |
Possible extension cables
| Order code | Cable length | Color |
| E2-01A | 1 m | Black |
| E2-02A | 2 m | |
| E3-01A | 1 m | White |
You can request the necessary certificates, documentation, instructions and user guide for Rotronic RMS HCD-IC102 using the special form.
You can buy Rotronic RMS HCD-IC102 in UAE at a price starting from 766 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic RMS HCD-IC102 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Rotronic Monitoring System RMS
