The flexible dataprotection component of the Rotronic Monitoring System RMS
Made in Swiss. brand Rotronic, model RMS-LOG-915
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The data logger is the flexible component between the probe and the database in the Rotronic Monitoring System. It stores 44,000 pairs of measured values from the exchangeable HygroClip probe, and transmits them to the RMS database via LAN or wireless link. It guarantees absolute data protection, even if power supply and communications should temporarily break down.
Compatible with:
Applications
| General specifications | |||
| Measured parameters | Humidity & temperature, CO2, differential pressure, LDP | ||
| Range of application | -40..70 °C / 0..100 %RH | ||
| Storage conditions | -40..30 °C / 0..95 %RH | ||
| Maximum altitude | 2000 m ASL | ||
| Power supply | 24 VDC ±10 % / <100 mA / Battery: RMS-BAT
(2xAA, LiSocl2) / PoE: 802.3af-2003, Class 1 |
||
| AC adapter requirements | 24 VDC ±10 % / 4 W nominal /
<15 W power-limited |
||
| Battery life | 3 years (at 23 °C, measurement interval 1 min., HCD-S probe) | ||
| Device data | |||
| Measurement interval | 10 s to 15 min. | ||
| Startup time | < 10 s | ||
| Order code | RMS-LOG-L | RMS-LOG-868 | RMS-LOG-915 |
| Interfaces | Ethernet | ISM 868 MHz | ISM 915 MHz |
| Indoor wireless range | – | 20..50 meters | 15..25 meters |
| Protocols | HTTP / MODBUS TCP | ||
| Ethernet cable requirement | Min. Cat. 5, SFTP, max. 30 m | ||
| Conformity with standards | |||
| FDA / GAMP directives | FDA CFR21 Part 11 / GAMP 5 | ||
| Housing / Mechanics | |||
| Housing material | ABS | ||
| Fire protection class | UL94 –V2 | ||

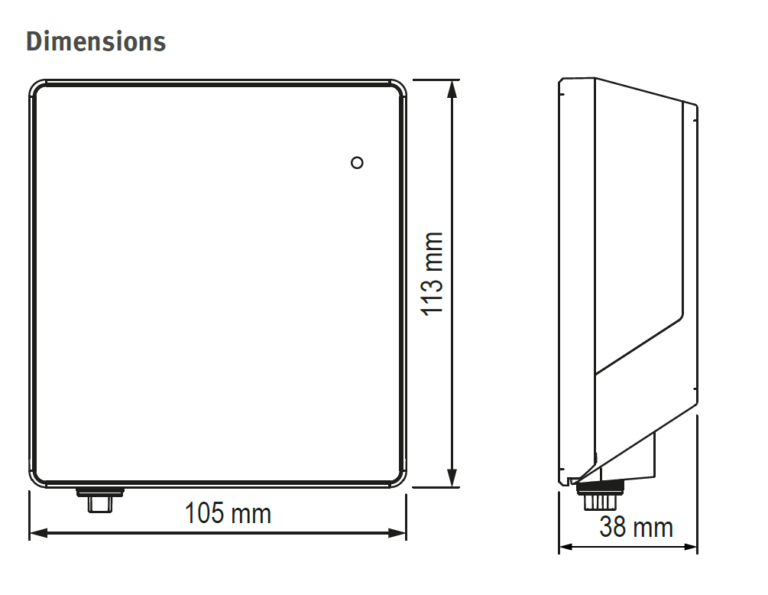

| Dimensions | 105 x 113 x 38 mm | ||
| IP protection class | IP65 | ||
| Weight | 200 g | ||
You can request the necessary certificates, documentation, instructions and user guide for Rotronic RMS-LOG-915 using the special form.
You can buy Rotronic RMS-LOG-915 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic RMS-LOG-915 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
