RMS-LOG-T30
Made in Swiss. brand Rotronic, model RMS-LOG-T30-L
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $592
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

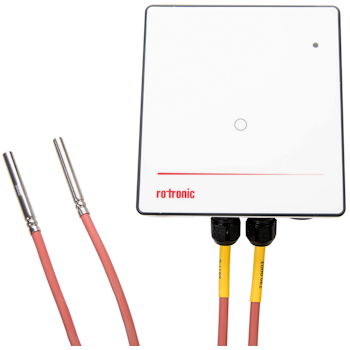

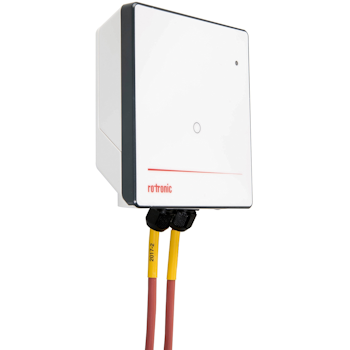

The RMS-LOG-T30 is a data logger with two integrated analog-to-digital converters, to which two PT100 sensors can be connected for high-precision temperature measurement. The measuring accuracy of the data logger with PT100 can be improved by a 1- or 2-point adjustment. The data logger stores 44,000 pairs of measured values and sends them to the RMS database via LAN or wireless interface.
Compatible with:
Applications
| General specifications | |||
| Measured parameter | 2-, 3- and 4-wire RTD measurement | ||
| Number of measuring points | 2 x PT100 probes | ||
| Accuracy1
(@23 °C, without PT100) |
±0.1 °C (-100 °C to 200 °C) | ||
| ±0.2 °C (-200 °C to 850 °C) | |||
| Application range | -40…70 °C / 0…100 %RH,
non-condensing |
||
| Storage conditions | -20…30 °C / 0…95 %RH | ||
| Power supply | 24 VDC ±10 % / <100 mA / PoE: 802.3
af-2003, Class 1 |
||
| AC adapter requirements | 24 VDC ±10 % / >4 W / power-limited | ||
| Device data | |||
| Measurement interval | 10 s to 15 min | ||
| Order code RMS-LOG-T30-xxx | T30-L | T30-868 | T30-915 |
| Battery life (23 °C, 60 s interval) | 3 years | 2.4 years | 2.4 years |
| Interfaces | Ethernet | ISM 868 MHz | ISM 915 MHz |
| Max. indoor wireless range | – | 20…50 m | 15…25 m |
| Compatibility with RMS-GW-xxx firmware | – | V2.1 | V2.1 |
| Software compatibility | ³ V1.3.0 | ||
| Protocols | HTTP / MODBUS TCP (T30-L) | ||
| Ethernet cable requirement | Min. Cat 5, SFTP, max. 30 m | ||
| Conformity with standards | |||
| FDA / GAMP directives | FDA CFR21 Part 11 / GAMP 5 | ||
| Housing / Mechanics | |||
| Enclosure material | PC, ABS | ||
| Fire protection class | UL94-V2 | ||
| Dimensions | 105 x 113 x 38 mm | ||
| IP protection class | IP65 | ||
| Weight | 240 g | ||
You can request the necessary certificates, documentation, instructions and user guide for Rotronic RMS-LOG-T30-L using the special form.
You can buy Rotronic RMS-LOG-T30-L in UAE at a price starting from 592 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic RMS-LOG-T30-L price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Data Loggers, Rotronic Monitoring System RMS
