The RMS-TCD-S-001 is a completely digital designed probe for the Rotronic Monitoring System RMS. It measures temperature.
Made in Swiss. brand Rotronic, model RMS-TCD-S-001
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $279
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

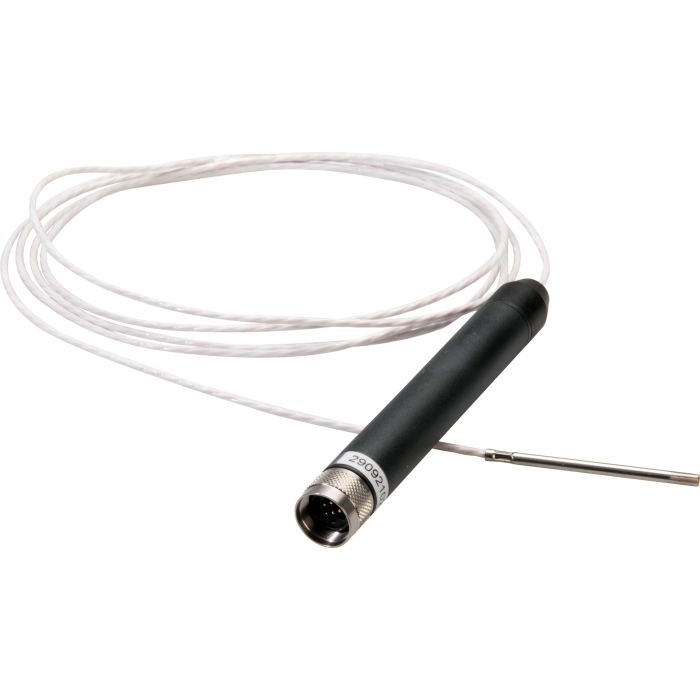

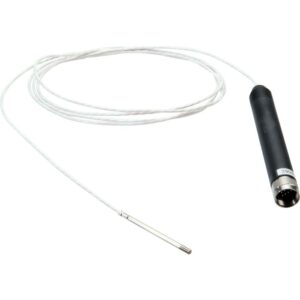

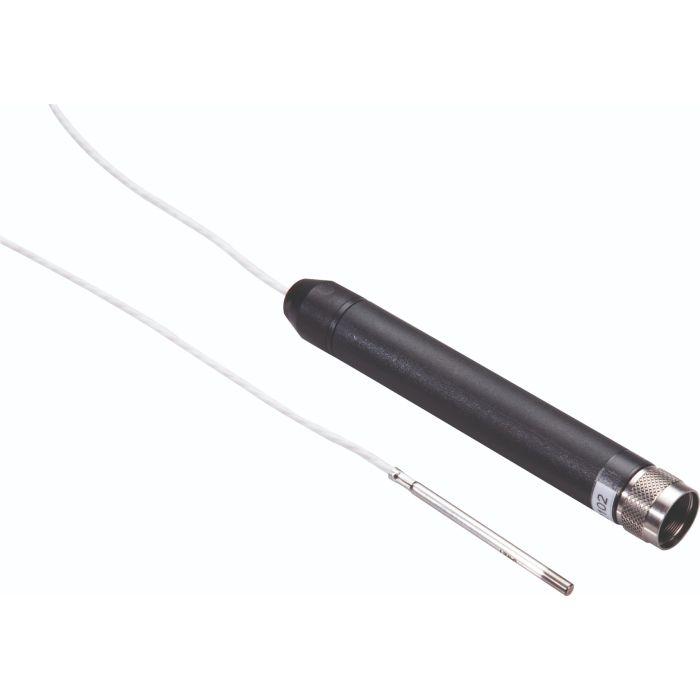

The RMS-TCD-S-001 digital probe was designed for all temperature monitoring and control applications where accuracy and interchangeability are crucial. The temperature probe is attached to a 2m cable to ensure flexibility and ease of use during calibration.
Applications
| Order code | RMS-TCD-S-001 |
| Measurement range | -200…200 °C* |
| Accuracy | ±0.25 °C at -50…85 °C |
| Long term stability | ±0.5 °C/year |
| T63 | 90 s |
| Electronics details | |
| Temperature range | -40…85 °C |
| Relative humidity range | 0…100 %rh |
| Housing details | |
| Material | Polycarbonate |
| Housing potting | Yes |
| Diameter | Ø15 mm |
| Length | 110 mm |
| IP Rating | IP65 |
| Connector | Standard Rotronic 7-pin connector |
| Sensor details | |
| Temperature range | -200…200°C |
| Temperature sensor | 4-wire Pt100, 1/3 DIN Class B, according to EN 60751 |
| Material | Stainless steel – austenitic – 1.4571 (316Ti) bar |
| Sensor potting | Yes |
| Diameter | Ø3 mm |
| Length | 50 mm |
| IP Rating | IP68 |
| Cable details | |
| Temperature range | -190…200°C |
| Material | Perfluoroalkoxy alkanes (PFA) |
| Diameter | Ø 2.2 mm |
| Length | 2 m |
| Technical details | |
| Battery lifetime | RMS-LOG-868/915/L: @60 s 240 d RMS-LOG-L-D: @60s 18 d |
| Communication | MODBUS RTU |
| Output signal | UART |
| Power supply | 3.3…5 V |
| Current consumption | ~3.8 mA |
| Adjustment option 1** | 2 point user adjustment possible |
| Adjustment option 2** | A, B and C coefficients |
| Accessories | |
| Hardware | AC3001, RMS-LOG-L, RMS-LOG-868/915, RMS-LOG-L-D |
| Software | RMS-CONFIG; Rotronic Monitoring System |
Compatible Products
| Order code | Filter carrier |
| RMS-TD-0001 | Temperature buffer |
| AC3001 | USB/E2 cable to connect to a laptop/PC with RMS-CONFIG |
| RMS-LOG-L/868/915/RMS-LOG-L-D | Wall datalogger for digital probes |
Possible Extension Cables
| Order code | Cable length | Color |
| E2-01A | 1 m | Black |
| E2-02A | 2 m | |
| E3-01A | 1 m | White |
| E3-02A | 2 m |
You can request the necessary certificates, documentation, instructions and user guide for Rotronic RMS-TCD-S-001 using the special form.
You can buy Rotronic RMS-TCD-S-001 in UAE at a price starting from 279 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic RMS-TCD-S-001 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Rotronic Monitoring System RMS
