Float Level Transmitters are ideal for continuous Level monitoring in Water, Diesel, Chemical and Oils for accurate level Measurement. The Output is not affected by liquid type, temperature, Pressure and other physical parameters.
Made in India. brand Spink Controls, model SC/L-1001
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
| Overall Length | 300 mm to 5000mm |
| Measuring Error | ±0.25% or Span |
| Output Temperature Co-efficient | ±0.007% / °C |
| Resolution | 5mm / 10mm |
| Ambient Temperature | -40°C to 60°C |
| Liquid Temp. Range | -40°C to 120°C |
| Liquid Min. Density | 0.8 gm/cc |
| Max. Pressure | 10 kg/cm² |
| Protection category | Weather proof IP66 to IS:2147 Flame Proof Gr. IIA & IIB to IS:2148 |
| Terminals | Max. 1.5mm² Flexible |
| Cable Entry | PG11 for Weather Proof ¾” Et for Flame proof (Glands not supplied) |
| Output | 2 wire, 4-20 mA 3 wire, 0-10 V DC RS 485 |
| Process Connection | Threaded Flanged Tri Clamp Others |
| Excitation Voltage | 10-30 V DC |
| Loop Resistance | Max.1200Ω |
Construction :

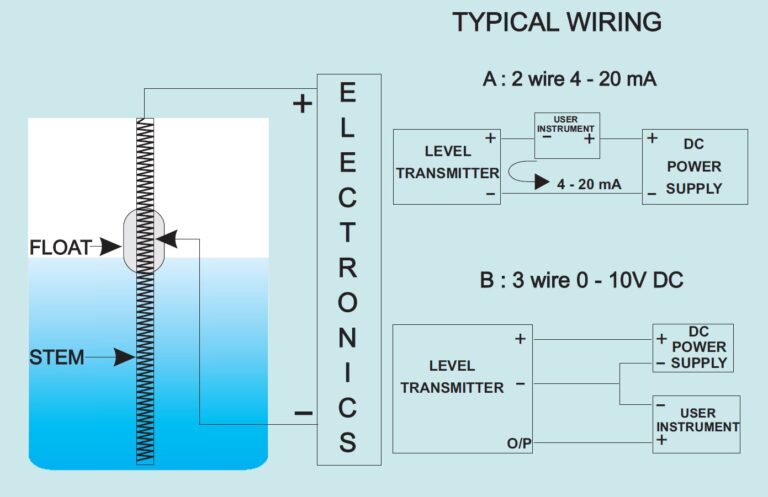

Float Level Transmitter consists of non magnetic sealed stem containing series of reed switches and resistor, Float carrying magnet, Mounting adaptor (or flange) and enclosure containing electronics.
Application:
You can request the necessary certificates, documentation, instructions and user guide for Spink Controls SC/L-1001 using the special form.
