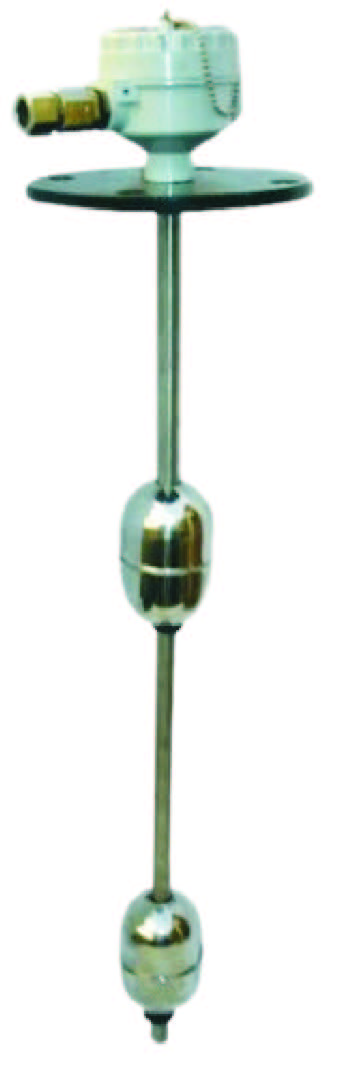

Top Mounted Level Switch is intended for controlling one or multi Levels by using Reed Switch. The Unit Consists of Vertical Guide Pipe (Stem), Reed Switches are located, Magnetic Float Sliding over the Stem according to the level in the tank. Various materials of construction are available depending up on Service Condition. Maximum 4 Set points can be given in a Single Level Switch & Maximum stem length will be 3 Meters.
Made in India. brand Spink Controls, model SC/L-401
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
| Design features | |
| Float | SS 316 / Teflon coated / PP |
| Process connection | Screwed / Flanged |
| Switch rating | Hermetically sealed magnetically operated reed switch with rhodium contact (SPST/SPDT), 0.5A @ 240V AC |
| Switch housing | Weatherproof IP65 / Flameproof Gr. A, II B |
| Operating pressure | 10 kg/cm² |
| Operating temperature | Max. 100°C |
| Cable entry | ½” NPT (f) / ¾” ET (f) |
| No. of switches | As per customer requirement |
| Stem length | Up to 3 meters |
| Materials of construction | |
| Flange | C.S. / SS 304 / SS 316 |
| Guide pipe (stem) | SS 316 / Teflon coated / PP / PVDF |
| Switch housing | Die-cast aluminum |
Salient features
One Moving Component Exists, so that no wear of float. The switch operates on the principle of magnetic flux coupling with no mechanical connection so that fluid contamination of switch components can not occur.
You can request the necessary certificates, documentation, instructions and user guide for Spink Controls SC/L-401 using the special form.
