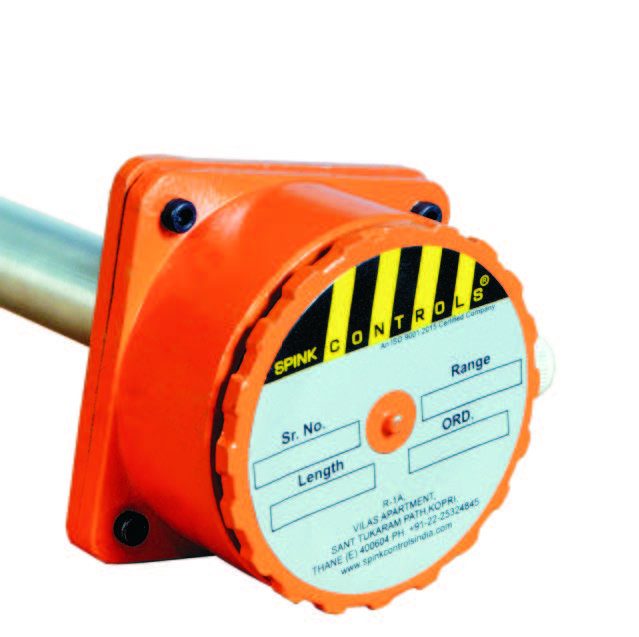

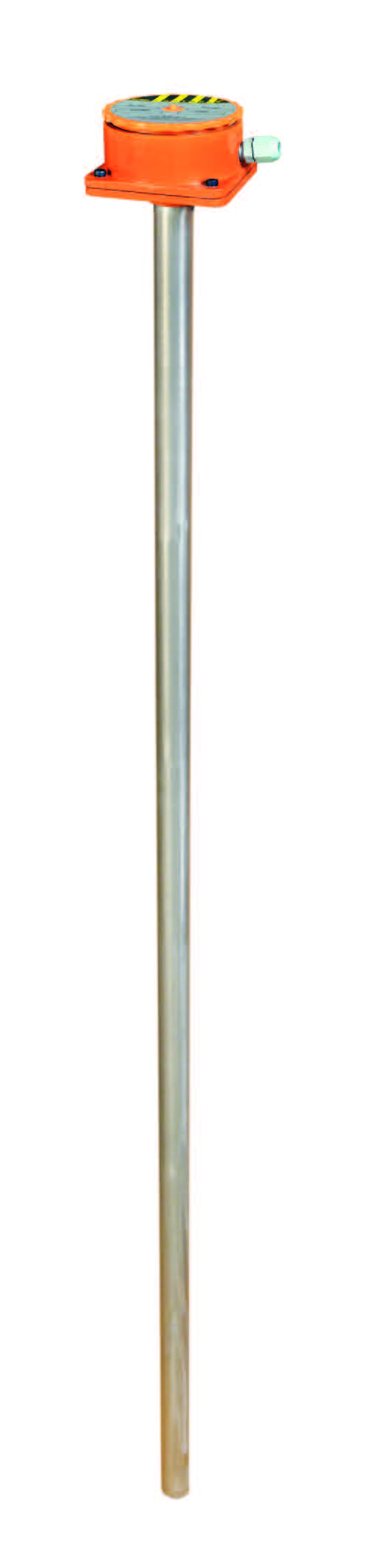

SPINK SC/L-801 Fuel level transmitter

It is specially designed for diesel level measurement. It is the only transmitter in its class which measures minimum height as low as 65 mm with an accuracy of 0.5 mm this is directly mounted on any diesel generator fuel tank. This product is specially designed for mobile tower management system and has got proven track record at many locations.

			int(24352)
NULL


Made in India. brand Spink Controls, model SC/L-801

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.

price По запросу

Available

Available

Download the questionnaire
Advantages

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Advantages

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Advantages

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Advantages

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Technical specifications of SPINK SC/L-801

Measuring Range From 65 mm to 1000 mm
Transmitter Type Loop Powered
Supply Voltage 12 to 24 V DC
Out Put 4-20mA @ Constant Current Load of 500 Ω RS-485 (Optional)
Temperature -20 to 100℃
Enclosure Die-Cast Aluminum, Duly Approved for IP 65 / 67
Resolution 1mm
Electrode Construction Rigid Sensing with Concentric Ground Pipe
Cable Gland Polyamide X PG 9
Expand Table

Construction :

Consists of a sensing & ground concentric electrode with integral electronics enclosed in cast Aluminium enclosure. The probe is top mounted with threaded / flanged process connections. The capacitance formed between sensing & ground electrode is proportional to the change in liquid level, is sensed and converted to 4-20mA analogue output.

User Guide and Instruction manual for Spink Controls SC/L-801

You can request the necessary certificates, documentation, instructions and user guide for Spink Controls SC/L-801 using the special form.

You can buy Spink Controls SC/L-801 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email . Spink Controls SC/L-801 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
