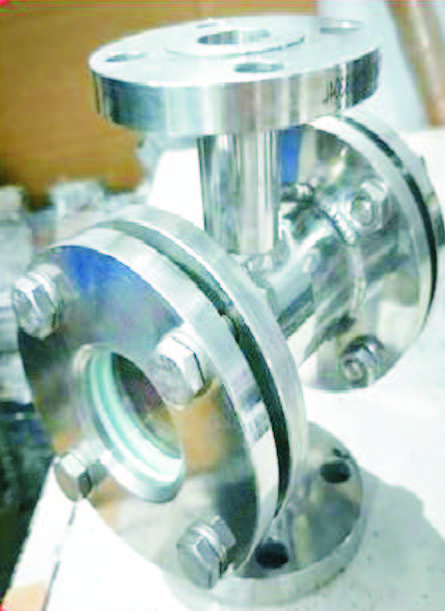

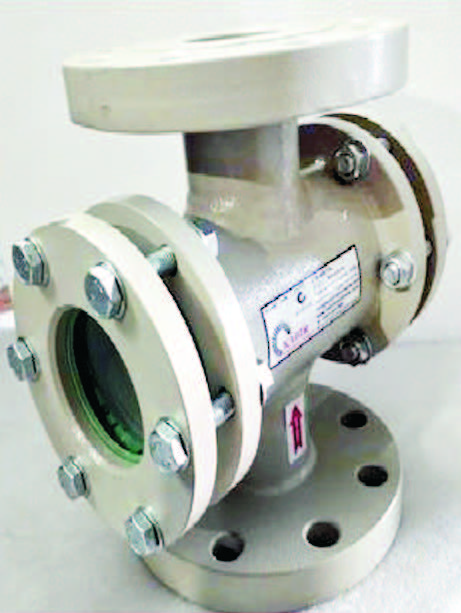

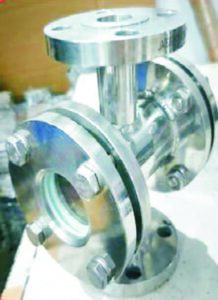

Sight Flow Indicators are most commonly used for monitoring liquid flow in pipelines without compromising the integrity of the piping system. Visual observation and supervision of the process flow stream are two of the main concerns.
Made in India. brand Spink Controls, model SC/R-1500
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Single / double window constructions, Sight Flow Indicators are available in various figures & material. CS / SS made bodies with Toughened borosilicate Glass Windows and standard units in flanged / threaded connections provide immunity at higher temperature & pressures. These offer a quick, reliable and inexpensive way to affirm flow rate and direction, and monitor color and clarity in fluid lines.
The basic applications of Sight Flow Indicators are spread across several industries and include measuring levels of water, condensate, coolant, diesel, solvent, chemicals, alcohol, lube oil, juices etc.
| Service | Compatible gases and liquids. |
| Wetted Materials | Window: tempered glass; Body: carbon steel or 316 SS; Gasket: Buna-N, fluoroelastomer or PTFE; |
| MOC | M.S./ S.S./P.P/PTFE Lined in FABRICATED OR IC |
| Type | Glass Window Liquid Flow Indication |
| Temperature | 350ºC |
| Pressure | up to 70 Kg/cm² other on your request |
| Line Size | Up to 14 Inches (350 mm) other size is Customize |
| Glass | Toughened Glass |
| Version | Double / Single Window Viewing |
| Connection | Flanged / Threaded. |

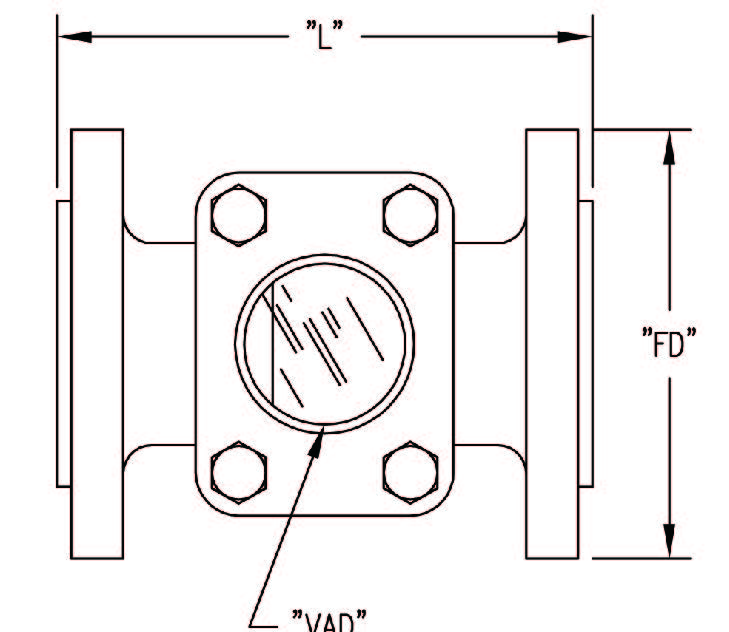

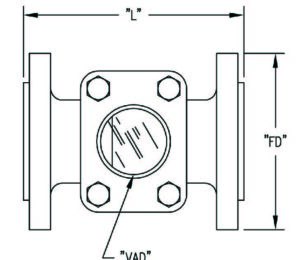

| Size(Inch) | Flange To Flange Distance (L) |
Flange Diameter (FD) |
| 1 ½ | 165 | 127 |
| 2 | 200 | 152 |
| 3 | 250 | 191 |
| 4 | 300 | 229 |
