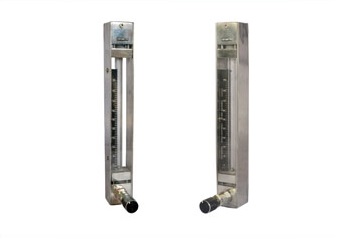

The Purge Rotameter are low capacity variable area flowmeters for both liquid and gas with an excellent selection of material and scale lengths in a single product family design. They provide optimum flexibility with minimum component proliferation. The Rotameter features, a corrosion resistant, high strength stainless steel body and a safety tested operator protection shield.
Made in India. brand Spink Controls, model SC/R-200
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
| Technical specification | |
|---|---|
| Accuracy | +/-3% of FSR |
| Rangeability | 10:1 |
| Repeatability | +/-0.5% of FSR |
| Max temperature | 120°C |
| Max pressure | 10kg/cm² (high pressure on request) |
| Connection | 1/4″ BSP (M/F) others on request |
| Direction of connection | Rear bottom to top |
| Material of construction | SS 316 |
| Packing / gaskets | Neoprene / silicon / Viton / PTFE |
| Cover | Acrylic / poly carbonate |
| Accessories | 1) Differential pressure regulator 2) High & low flow alarms 3) Needle valve |

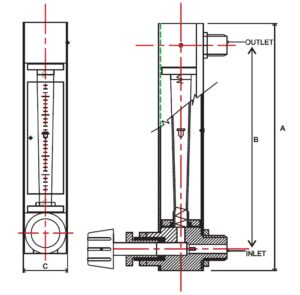

Dimensions
| Model No | a (mm) | b (mm) | c (mm) | Scale length (mm) |
|---|---|---|---|---|
| R-201 | 132 | 105 | 32 | 65 |
| R-202 | 182 | 155 | 32 | 100 |
| R-203 | 232 | 205 | 32 | 170 |
Measuring Range
| Water flow @ 20°C (LPH) | Air @ 20°C & 1 ATM (LPH) | ||||
| R-201 | R-202 | R-203 | R-201 | R-202 | R-203 |
| 0.05 – 0.5 | — | — | 2 – 20 | — | — |
| 0.08 – 0.8 | — | — | 3 – 30 | — | — |
| 0.1 – 1 | — | — | 4 – 40 | — | — |
| — | 0.2 – 2 | — | — | 8 – 80 | — |
| — | 0.3 – 3 | — | — | 12 – 120 | — |
| — | 0.4 – 4 | 0.4 – 4 | — | 16 – 160 | 16 – 160 |
| — | 0.5 – 5 | 0.5 – 5 | — | 20 – 200 | 20 – 200 |
| — | — | 0.8 – 8 | — | — | 32 – 320 |
| — | — | 1 – 10 | — | — | 40 – 400 |
| — | — | 0.16 – 16 | — | — | 64 – 640 |
| — | — | 2 – 20 | — | — | 80 – 800 |
| — | — | 3 – 30 | — | — | 120 – 1200 |
| R-201 | L | A | S | 1 |
| Service | ||||
| Liquid | L | |||
| Gas | G | |||
| Flow Direction | ||||
| Vertical | A | |||
| Rear | B | |||
| End Connection | ||||
| Screwed | S | |||
| Hose | H | |||
| Flanged | F | |||
| C/C Distance | ||||
| 105 mm | 1 | |||
| 155 mm | 2 | |||
| 205 mm | 3 | |||
You can request the necessary certificates, documentation, instructions and user guide for Spink Controls SC/R-200 using the special form.
