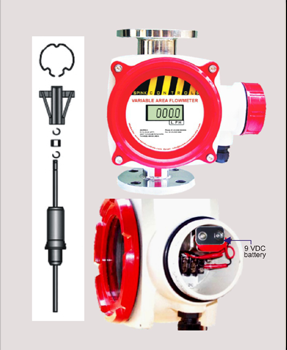

Digital Metal Tube Rotameter does not require any electrical connection, since it operates on battery. It has an inbuilt two wire transmitter provide 24 VDC and take 4-20 mA Signal.
Made in India. brand Spink Controls, model SC/R-300
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
It operates on the principal of variable area; the fluid in the metal tube raised a float in the taper tube increasing the area of passage of fluid. The float moves up in proportion to the rate of flow of fluid and get stabilized, when the weight of the float is balanced by the upward hydraulic force. By a magnetic coupling the inner float moment through a series of linkages and counter weight.The tube and the float combination determine the Flowrate
Digital Meter: The inner float magnetic field is detected by the high sensitive magnetic field detection sensor, enable us to show the digital readout
Benefits
| Technical Specification | |
|---|---|
| Accuracy | +/-1.5% of FSR |
| Rangeability | 10:1 |
| Repeatability | +/-0.5% of FSR |
| Temperature rating | -50 to 120 °C |
| Pressure rating | 80 kg/cm² |
| Flow direction | Bottom to top |
| End connection | As per customer’s requirement |
| Wetted part | To suitable specific liquid or gases |
| Mounting position | Vertical |
| Indication | Digital flow rate |
| Transmission | 2wire loop powered |
| Power supply | 24 VDC |
| Enclosure | Ex d IIB T4 IP67 |
Maximum Flow and Pressure Loss
| Line size NB |
20°C water flow m³/hr |
0°C, 1 atm air flow Nm³/hr |
Approx pressure loss mm WC |
|---|---|---|---|
| 15 | 0.2 – 1.2 | 6 – 35 | 200 – 225 |
| 20 | 0.4 – 2.0 | 8 – 60 | 220 – 230 |
| 25 | 1 – 5 | 30 – 150 | 200 – 270 |
| 40 | 2.5 – 10 | 70 – 300 | 200 – 250 |
| 50 | 3.5 – 17 | 100 – 500 | 225 – 280 |
| 65 | 6 – 30 | 200 – 900 | 225 – 240 |
| 80 | 10 – 45 | 300 – 1200 | 225 – 280 |
| 100 | 20 – 100 | 600 – 3000 | 350 – 850 |
| 125 | 30 – 120 | 900 – 4000 | 300 – 850 |
| 150 | 30 – 150 | 900 – 4500 | 350 – 950 |
| R-300/D Configuration Options | |||||||
| R-300/D | 001 | A | F | 1 | CC1 | AL | N |
| Base model | |||||||
| Battery operated & 24 VDC loop powered 4-20 mA | 001 | ||||||
| Totalizer witd loop powered transmitter | 002 | ||||||
| 230 VAC & 4-20 mA output | 003 | ||||||
| Totaliser & batch controller – 230VAC | 004 | ||||||
| High & low switch | 005 | ||||||
| Totalizer witd density correction facility | 006 | ||||||
| Float material | |||||||
| SS 304 | A | ||||||
| SS 316 | B | ||||||
| SS 316 L | C | ||||||
| SS with PTFE | D | ||||||
| PP / PVC | E | ||||||
| Process connection | |||||||
| Flanged | F | ||||||
| Screwed | S | ||||||
| Tri-clover | T | ||||||
| Any other | A | ||||||
| Material of construction-body & process connection | |||||||
| SS 316 | 1 | ||||||
| SS 316L | 2 | ||||||
| SS 304 | 3 | ||||||
| PTFE lined | 4 | ||||||
| Any other | 5 | ||||||
| Flange to flange distance | |||||||
| 300 mm | CC1 | ||||||
| 350 mm | CC2 | ||||||
| 400 mm | CC3 | ||||||
| 500 mm | CC4 | ||||||
| Enclosure | |||||||
| Di-cast aluminum – Ex d IIB T4 IP 67 | AL | ||||||
| Stainless steel 304 – Ex d IIA & IIB T6 IP 66 | S1 | ||||||
| Stainless steel 316 – Ex d IIA & IIB T6 IP 66 | S2 | ||||||
| Other | O | ||||||
| Accessories | |||||||
| Jecketing | J | ||||||
You can request the necessary certificates, documentation, instructions and user guide for Spink Controls SC/R-300 using the special form.
