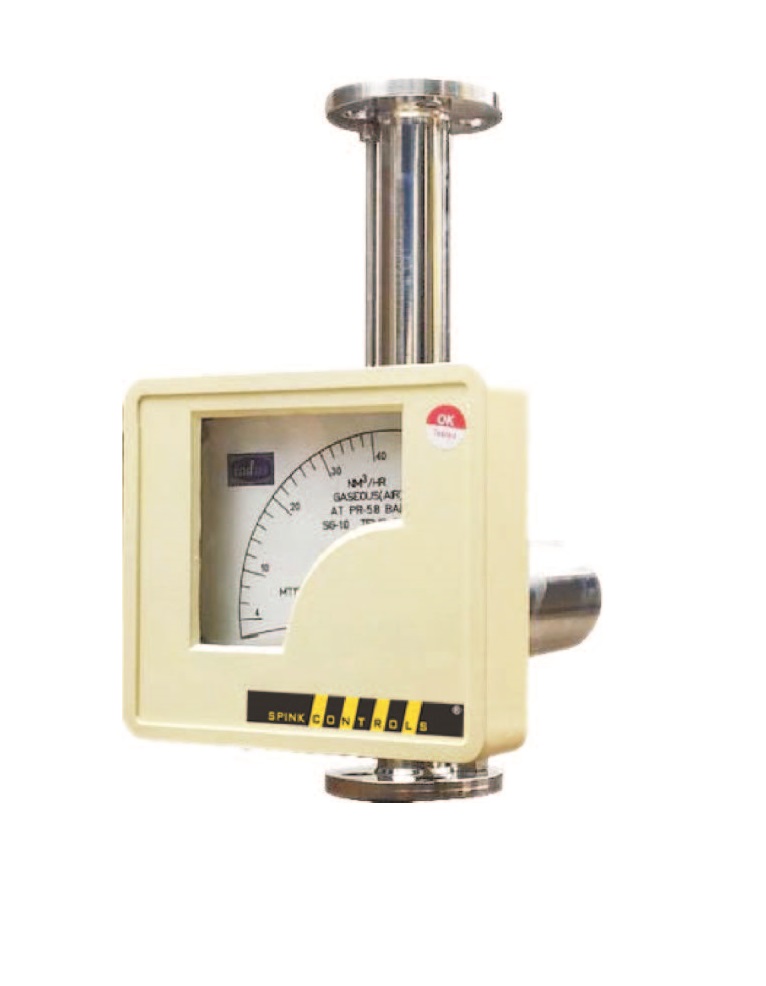

Metal Tube Rotameter is a Variable Area Flow Meter. It consists of a tapered tube, typically made of steel with a float, made of SS or PTFE. The differential pressure across the annulus area is constant. The float moves through the tapered tube up and down with respect to fluid flow. The vertical position of the float as indicated by scale is the measure of the instantaneous flow rate.
Made in India. brand Spink Controls, model SC/R-400
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
| Meter body | Metalic (SS-316L / SS-316 / SS-304) |
| Float | SS-316L / SS-316 / PTFE |
| Scale | Aluminium / SS-304 / White acrylic |
| Connection | Top & Bottom Flanged Or Threaded |
| Indicator housing | Abs Plastic, Cast Aluminium |
| Rated temp | 250°C |
| Rated pressure | 40 bar |
| Accuracy | ±2% on full scale |
| Repeatability | 0.5% |
| Rangeability | 0:1 |
| Accessories | Hi – low flow switch |
| Model No. | Maximum flow m³/hr water | Connection flanged | CC distance |
| SCMT-401 | 5 | 1/2″ to 1″ | 350mm |
| SCMT-402 | 10 | 1½” to 2″ | 350mm |
| SCMT-403 | 20 | 2″ to 2½” | 350mm |
| SCMT-404 | 30 | 2½” to 3″ | 350mm |
| SCMT-405 | 50 | 3″ to 4″ | 350mm |
| SCMT-406 | 60 | 4″ | 350mm |
| 100 | 4″ | 500mm | |
| SCMT-407 | 130 | 5″ | 500mm |
| SCMT-408 | 180 | 6″ | 500mm |
| SCMT-409 | 200 | 8″ | 500mm |
| SCMT-1M | 2 | 1/2″ to 1″ | 250mm |
| SCMT-2M | 5 | 1″ to 1½” | 250mm |
| SCMT-3M | 10 | 1½” to 2″ | 250mm |
| SCMT-4M | 20 | 1½” to 2″ | 250mm |
You can request the necessary certificates, documentation, instructions and user guide for Spink Controls SC/R-400 using the special form.
