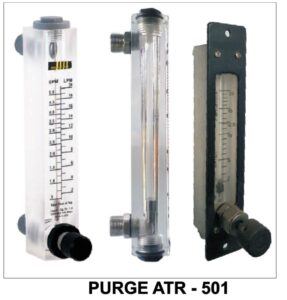

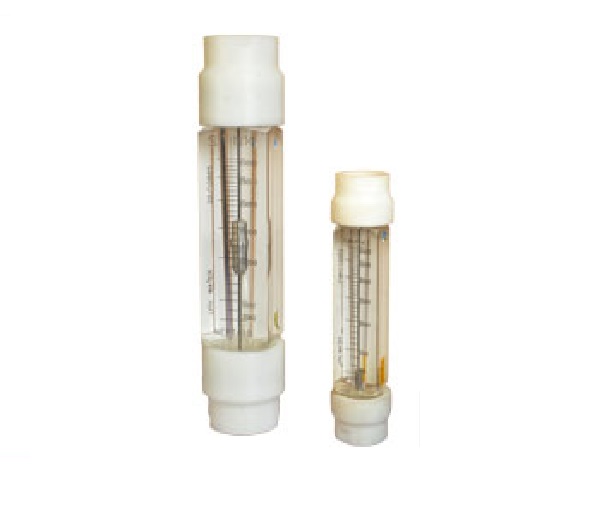

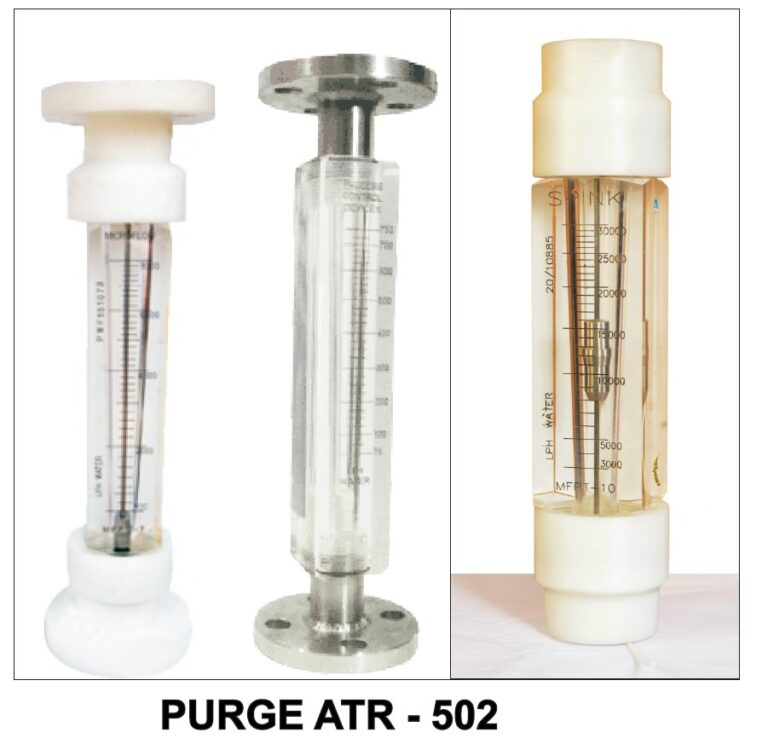

Acrylic Body Rotameter is an instrument used to measure instant flow rate of Liquids and Gases and are commonly used for flow measurement.
Made in India. brand Spink Controls, model SC/R-500
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
| Maximum Range | Water up to 50 m3/hr, Air up to 1500 nm3/hr |
| Line Size | 1/4″ to 4″ |
| Range Ability | 10:1 |
| Repeatability | +/- 0.5 % |
| Accuracy | +/- 2 % of FSR |
| Temperature Rating | 600 C |
| Pressure Rating | 10 kg/cm2 |
| Body / Metering Tube | Acrylic |
| Material of Wetted Part | SS304 / SS316 / PP / MS |
| Float | SS304 / SS316 Or Suitable To Service |
| Scale | Engraved on Meter Body |
| Optional | Needle Valve / Wall Mounting |
| C/C Distance | 190 mm to 450 mm |
| End Connection | FLANGED / TC / SCREWED (NPT / BSP) |
| Mounting Position | Vertical |
Model & Range Specification
| Model & range specification | Dimensional Detail | Maximum pressure rating | ||||
| Model No. | Maximum Flow Rate | Connection | CC distance | |||
| LPM Air | LPH Water | BSP ‘F’ | ||||
| SCPN-1 | SCPN-501 | 50 | 100 | 1/4″ | 114 | 2 kg/cm3 |
| SCPN-2 | SCPN-502 | 150 | 200 | 1/4″ | 110 | |
| SCPN-3 | SCPN-503 | 100 | 500 | 1/4″ | 159 | |
| SCPN-4 | SCPN-504 | 500 | 1000 | 1/2″ | 200 | 3kg/cm² |
| SCPN-5 | SCPN-505 | 1400 | 2500 | 3/4″ | 194 | |
| Model & range specification | Dimensional Detail | Maximum pressure rating | |||
| Model No. | Maximum Flow Rate | Connection | CC distance | ||
| LPM Air | LPH Water | BSP ‘F’/Flanged | Threaded/Flanged | ||
| SCPT-501 | 50 | 100 | 1/4″ | 190 NA | 2 kg/cm² |
| SCPT-502 | 150 | 250 | 1/4″ & 1/2″ | 190 NA | |
| SCPT-503 | 100 | 150 | 1/4″ | 240 NA | 5 kg/cm² |
| SCPT-504 | 600 | 1200 | 1/2″ | 250/275 | |
| SCPT-505 | 1500 | 2500 | 3/4″ | 250/275 | |
| SCPT-506 | 2500 | 6000 | 1″ & 1 1/2″ | 300/325 | |
| SCPT-507 | 3000 | 8000 | 1″ & 1 1/2″ | 400/450 | 15 kg/cm² |
| SCPT-508 | 8000 | 15000 | 1 1/2″ & 2″ | 400/450 | |
| SCPT-509 | NA | 20000 | 1 1/2″ & 2″ | 400/450 | |
| SCPT-510 | NA | 40000 | 2″ & 2 1/2″ | NA 450 | |
| SCPT-511 | NA | 50000 | 2 1/2″ & 3″ | NA 450 | |
| SCPT-511 | NA | 80000 | 4″ | NA 450 | |
You can request the necessary certificates, documentation, instructions and user guide for Spink Controls SC/R-500 using the special form.
You can buy Spink Controls SC/R-500 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Spink Controls SC/R-500 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
