The inductive flowmeter SC/R-600 is a highly accurate and stable device. The construction of the flowmeter uses components with a long-term time and temperature stability
Made in India. brand Spink Controls, model SC/R-600
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

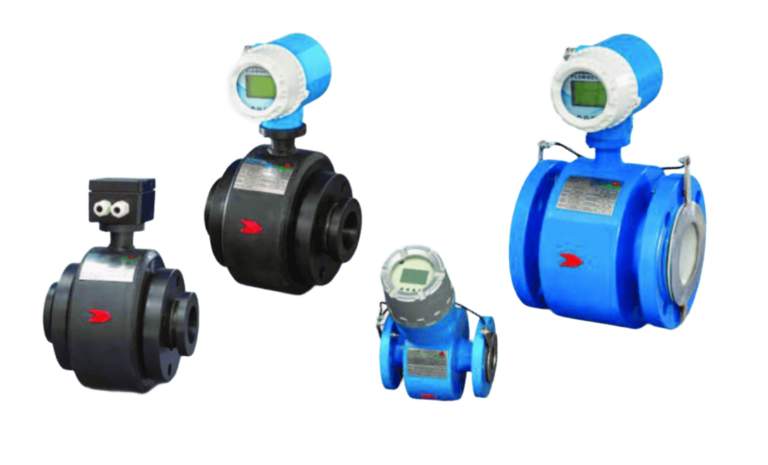

Spink Electromagnetic Flowmeter-Instrument designed for measuring and indicating flow and total volume of conductive liquids. As there are no moving parts in the flow profile the device can be used to measure extremely dirty liquids containing solids.
The flowmeter is for use with conductive liquids only. Range of applications. The flowmete has been designed for use in all process industries including chemical, water and wastewater.
| Parameter | MagFlow6410 | EcoMag6420 | MagBP6440 | MagProb6450 |
| Nominal dia(mm) | 10 to 300 | 10 to150 | 10 to 1000 | >100 |
| Working pressure (kg/cm²) | 10,16,25,40 | 5 | 16,16,25,40 | >20 |
| Working temperature | Integral PTFE -120°C Remote PTFE -180°C Otders -70°C |
Up to 55°C | Up to 55°C | Up to 120°C |
| Electrode material | SS316 Std.* | SS316 Std.* | SS316 Std.* | SS316 Std.* |
| Sensor lining | Std. Rubber* | NA | Std. Rubber* | NA |
| Display version | integral/Remote | integral/Remote | integral/Remote | integral/Remote |
| Measuring tube material | SS301Std.* | HDPE | SS301 Std.* | SS316 Std.* |
| Sensor housing material | Std.CS* | HDPE | Std.CS* | NA |
| End Connection | Flange/Water/Tri-clamp/SMS | Flange | Flange/Water/Tri-clamp/SMS | NA |
| Flange – Standard | ANSI 150* | ANSI 150* | ANSI 150* | NA |
| Measuring range | 0.2 to 12 m/sec. Bidirectional | |||
| Accuracy % of measured value | +0.5% (+0.2 consult factory) | +1% | +0.5% | +2% |
| Repeatability | +0.2% of scan | +0.2% of scan | +0.2% of scan | +0.2% of scan |
| Display | 2 line LCD | 2 line LCD | LCD | 2 line LCD |
| Display units | All standard engineering units in m³, liter, gallon, ft³, imperial gallon | |||
| Output | Std. 4 – 20 mA+ | Std. 4 – 20 mA+ | Pulse+ | Std. 4 – 20 mA+ |
| Power Supply | 18 – 60 V DC or 80 – 300 VAC/DC |
18 – 60 V DC or 80 – 300 VAC/DC |
Battery powered 6 years battery life |
18 – 60 V DC or 80 – 300 VAC/DC |
| Protection class or sensor | Std. IP 65 Option IP 68 or flow tube in remote type |
Std. IP 65 Option IP 68 or flow tube in remote type |
Std. IP 65 Option IP 68 or flow tube in remote type |
Std. IP 68 |
| Protection class or transmitter | IP 67 | IP 67 | IP 67 | IP 67 |
| Cable lengtd for remote | Std. 10 m | Std. 10 m | Std. 10 m | Std. 10 m |
| Installation | Inline flanged type | Inline flanged type | Inline flanged type | Insertion type witd use of isolating ball valve assembly on pipeline. |
You can request the necessary certificates, documentation, instructions and user guide for Spink Controls SC/R-600 using the special form.
You can buy Spink Controls SC/R-600 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Spink Controls SC/R-600 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Electromagnetic flow meters, Flow meters
