The S330 / S331 Data Logger and Display provides a universal solution for displaying and recording all relevant parameter of a compressed air system. This includes flow, dew point, pressure, temperature, power consumption, compressor status, and so on. The device offers a powerful yet cost-efficient data logger and display solution for optimal and reliable management and monitoring of your compressed air system.
Made in Germany. brand SUTO, model S330/S331
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $1 720
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The universal S330 / S331 display and data logger is a powerful yet cost‑efficient solution for displaying and recording all relevant parameters of a compressed air system: flow rate, dew point, pressure, temperature, power consumption, compressor status, and other values. The device ensures reliable monitoring and optimal management of the pneumatic system.
The device is equipped with digital inputs for SUTO SDI sensors and Modbus/RTU sensors. For proper connection via an RS‑485 bus system, daisy‑chaining of the sensors is recommended – SUTO offers an RS‑485 splitter to simplify the wiring. In this way, up to 16 sensors can be connected to a single master input, allowing entire plants to be monitored with one data logger (additional power supplies for field devices might be necessary).
The analog input option allows connection of 0/4…20 mA, 0…10 V, and pulse signals. When more analog sensors need to be connected, an Analog‑Modbus/RTU converter module can be easily added, allowing another 8 analog sensors to be connected. This makes the S330 / S331 a highly versatile solution for integrating existing field hardware.
Due to the industry‑standard Modbus/RTU protocol, third‑party sensors can be easily integrated into the monitoring system. Field devices can be set up within seconds using the configuration software. All data is logged to the internal memory, can be used for virtual channel calculations, and real‑time values are forwarded to connected systems.
By connecting a 4G/LTE modem to the designated M12 port, remote monitoring is possible via the free SUTO S4A software. Recordings are downloaded to a PC via USB, LAN, or wirelessly using the modem. Basic analysis can be performed with S4A. For more sophisticated compressor diagnostics, the CAA software (included with S551) offers many advanced features such as:
The 5″ color touch screen allows up to 4 sensors to be viewed on one page with page scrolling. The built‑in graphic analyzer helps identify abnormalities and problems instantly. For detailed analysis, the use of SUTO S4A software is recommended.

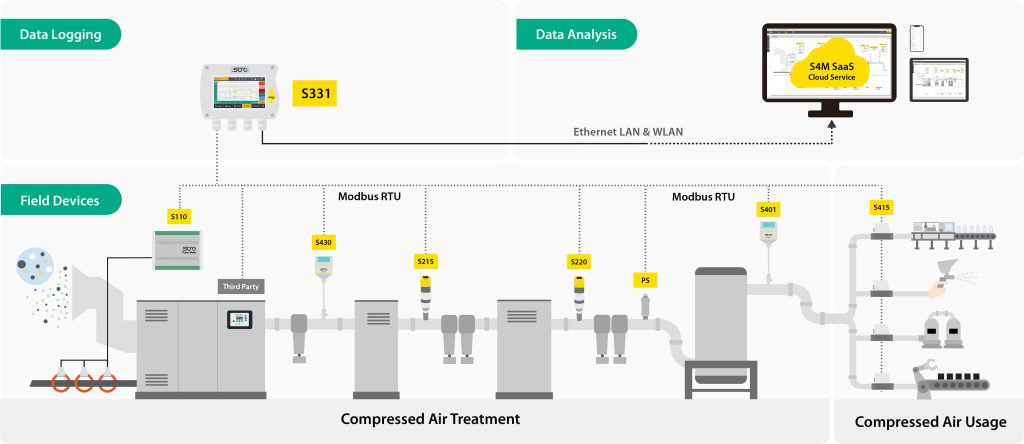

The S330 / S331 is not only a display and data logger but also a central unit for collecting, visualizing, and forwarding measurement data. The device can be easily scaled to meet growing plant requirements and ensures full transparency of all processes within the compressed air system.
Modifications
Compact Version

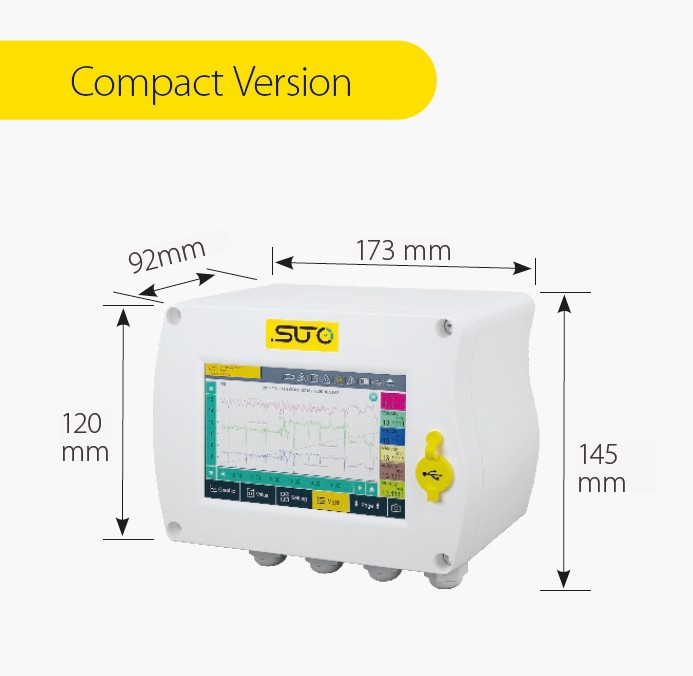

Compact Version: Central Unit for Your System
The Compact Version of the S331 Data Logger is used to gather and collect measurement data of various field devices. It acts as the central unit where all measurement data is safely stored and visualized. The digital communication outputs expand the S331 to not only be a display and data logger, but also a gateway to connect to IIoT services and to modern software solutions.
Supply and Glands
Installation Options

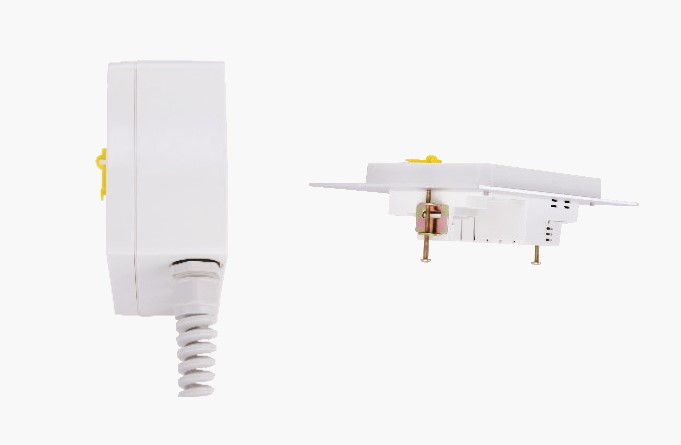

The S330 / S331 Compact Version comes in a compact design which can be panel mounted or ordered with a wall casing.
Flex Version

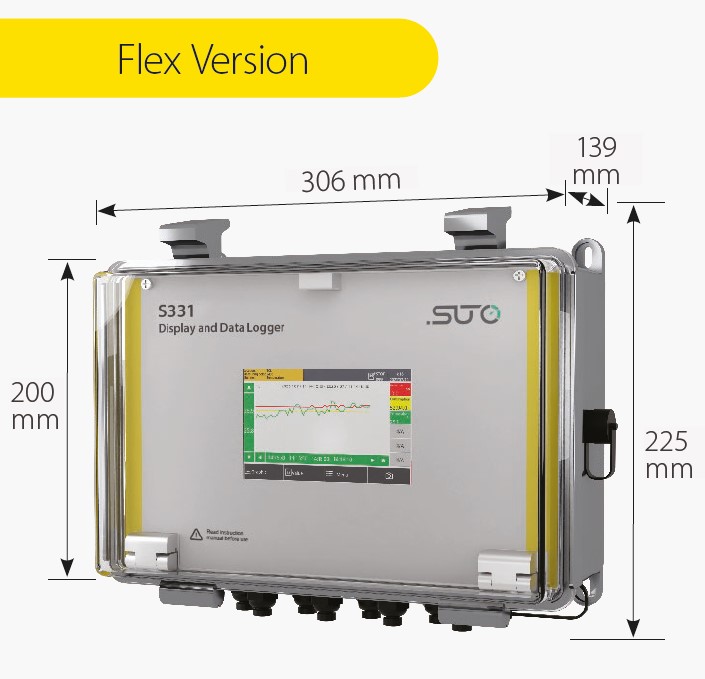

Flex Version: More Power and Larger Internal Wiring Space
The S331 Flex Version, a size upgrade from the S331 Compact Version, features an improved hardware design for greater stability and reliability. In addition, the larger housing offers more space for internal wiring and more power for connected sensors. It retains all the technical specifications of the S331 Compact Version and acts as a central data hub, efficiently collecting and organizing measurement data from multiple field devices.
Supply and Glands
Installation Options

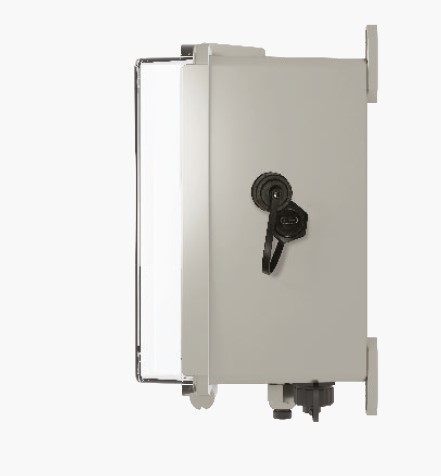

The S330 / S331 Flex Version comes in a rugged wall casing and offers a bigger power supply to the sensors.
Applications

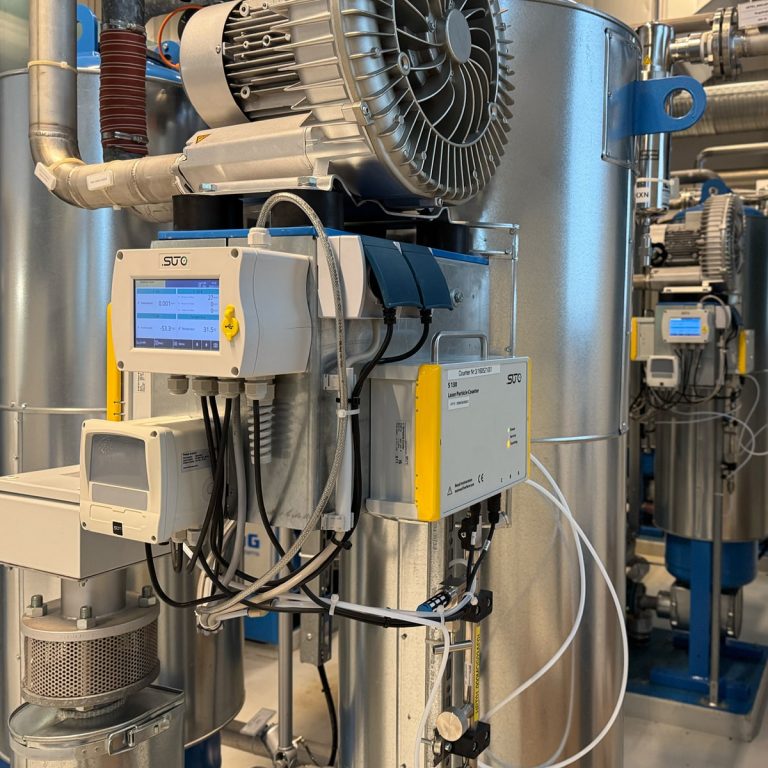

The S331 Display and Data Logger is used to gather and collect measurement data of various field devices. It acts as the central unit where all measurement data is safely stored and visualized. The digital communication outputs are not making it a display and data logger, but also a gateway to connect to IIoT services, as well as to connect it to modern software solutions
Benefits
Features
| SIGNAL INTERFACE & SUPPLY | |
| Data logger | |
| Storage | Internal, up to 100 million values |
| Sampling rate | Optional >=1s, Max 59 mm:59 ss |
| Input signals | |
| Digital input | 2 x SDI sensors 16 x RS-485 Modbus RTU Sensors 2 x 0 … 20 mA / 4 … 20 mA / 0 … 10 V |
| Analog input | 2 x 0/4 … 20 mA; 2 x 0 … 10 V; 2 x pulse |
| Pulse input | 100 Hz maximum; 28 V, 10 Ma |
| Output signals | |
| Analog / Pulse output | 4 … 20 mA signal and pulse signal of sensors can be looped through the display by using the connection board |
| Alarm output | 2 Relais, 230 VAC, 3 A, NC |
| Field bus Interface | |
| Protocol | Modbus/TCP (Ethernet), Modbus/RTU ( RS 485) |
| Electrical data | |
| Power supply | 100 … 240 VAC, 20 VA (option, A1663) 18 … 30 VDC, 20 W (option, A1664) |
| Sensor supply | 24 V, 10 W |
| Data interface | |
| Connection | Modbus/TCP (Ethernet), Modbus/RTU ( RS 485), USB |
| GENERAL DATA | |
| Configuration | |
| PC Software | S4C-Display software |
| Display | |
| Integrated | Size: 5” high-resolution graphic display Resolution: 800 x 480 pixels touch screen |
| Material | |
| Housing | PC + ABS |
| Miscellaneous | |
| Electrical connection | Screw-Terminal connectors |
| Protection class | IP65 |
| Approvals | CE |
| Housing | Panel, wall mountable |
| Dimensions | See dimensional drawing |
| Cable entry diameter | 4.5 … 8 mm |
| Cable | Supply: AWG 12 … AWG 24, 0.2 … 2.5 mm²; Signals: AWG 16 … AWG 28, 0.14 … 1.5 mm² |
| Weight | 0.52 kg |
| Operating conditions | |
| Ambient temperature | 0 … +50 °C |
| Ambient humidity | < 90 % |
| Storage temperature | -20 … +70 °C |
| Transport temperature | -20 … +60 °C |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| D500 0333 | S330 Display, Compact Panel Version, 2 x SDI & 16 x Modbus/RTU input, Ethernet, RS-485, USB-C, 2 Alarm relays, 10 Watt sensor supply, S4A software | Delivery time from 12 weeks | On request |
-
+
|
|
| D500 0331 | S331 Display and Data Logger, Compact Panel Version, 2 x SDI & 16 x Modbus/RTU input, Ethernet, RS-485, USB-C, 2 Alarm relays, 10 Watt sensor supply, S4A Software | Delivery time from 12 weeks | On request |
-
+
|
|
| D500 0335 | S331 Display and Data Logger, Flex Version with Wall Casing, 2 x SDI & 16 x Modbus/RTU input, M12-4G modem connection, Ethernet, RS-485, USB-C, 2 Alarm relays, 50 Watt sensor supply, S4A Software | Delivery time from 12 weeks | On request |
-
+
|
|
| A1510 | 8-ch relay module with Modbus | Delivery time from 12 weeks | On request |
-
+
|
|
| A1662 | S330/S331: 2 analog inputs 0/4 ... 20 mA, 0 ... 10 V & 2 pulse inputs | Delivery time from 12 weeks | On request |
-
+
|
|
| A1663 | S330/S331 Compact Version: Power Supply AC, Input: 100 ... 240 VAC / 50/60 Hz / 20 VA, 10 Watt sensor supply | Delivery time from 12 weeks | On request |
-
+
|
|
| A1664 | S330/S331 Compact Version: Power Supply DC, Input: 18 ... 30 VDC / 20 W, 10 Watt sensor supply | Delivery time from 12 weeks | On request |
-
+
|
|
| A1665 | S330/S331 Compact Version: Wall casing with 4 cable glands | Delivery time from 12 weeks | On request |
-
+
|
|
| A1667 | S330/S331 Compact Version: Wall casing with 3 cable glands + Ethernet | Delivery time from 12 weeks | On request |
-
+
|
|
| A1670 | USB 4G dongle, including S4A software | Delivery time from 12 weeks | On request |
-
+
|
|
| A1672 | S330/S331: No analog input | Delivery time from 12 weeks | On request |
-
+
|
|
| A1673 | S330/S331: No Wall casing, Panel mounting | Delivery time from 12 weeks | On request |
-
+
|
|
| A1675 | S330/S331 Compact Version: Wall casing with 3 cable glands + M12 connector for 4G modem (A554 0131 + A1670) | Delivery time from 12 weeks | On request |
-
+
|
|
| A1676 | S330/S331 Flex Version: Power supply AC, Input: 85 … 305 VAC / 50/60 Hz / 60 W, 50 Watt sensor supply | Delivery time from 12 weeks | On request |
-
+
|
|
| A1677 | S330/S331 Flex Version: Power supply DC, Input: 18 … 30 VDC / 60 W, 50 Watt sensor supply | Delivery time from 12 weeks | On request |
-
+
|
|
| C219 0055 | M12 connector with RS-485 termination resistor, 120 Ω, for Modbus daisy chain termination | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 3310 | RS-485 splitter T, with 3 x M12 connectors to connect RS-485 devices to a bus | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0104 | Sensor cable 5m with M12 connector, open wires, AWG24 (0.2 mm2) | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0105 | Sensor cable 10m with M12 connector, open wires, AWG24 (0.2 mm2) | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0106 | Power cable with mains plug, 1.8 m | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0161 | M8 female to M12 male converter cable for T-Splitter | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0165 | Sensor cable, 5 pole, AWG24 (0.2 mm2), 50 m | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0166 | Sensor cable, 5 pole, AWG24 (0.2 mm2), 100 m | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0167 | RS-485 cable, 4 pole twisted pairs, AWG24 (0.2 mm2), 50 m | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0168 | RS-485 cable, 4 pole twisted pairs, AWG24 (0.2 mm2), 100 m | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0120 | Ethernet cable 5m, RJ 45 plug at both ends | Delivery time from 12 weeks | On request |
-
+
|
|
| A553 0143 | USB-C Cable, USB-A to USB-C, 1.5 m (one included in S330/S331) | Delivery time from 12 weeks | On request |
-
+
|
|
| D554 0130 | S110 Power and Energy Meter, DIN rail, Modbus/RTU output | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0011 | RS-485 Repeater | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0131 | USB 4G Dongle protection case, with extension cable 2m And M12 Connector | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0331 | RS-485/USB converter | Delivery time from 12 weeks | On request |
-
+
|
|
| M599 2031 | S4M Smart Compressed Air System Monitoring Software, local installation, data acquisition and analysis software, including Energy Manager, 50 measuring channels | Delivery time from 12 weeks | On request |
-
+
|
|
| D554 0031 | Current meter, 0 … 20 mA output, 8 channels, Modbus/RTU output | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0007 | Power supply, wall mountable, input: 85 … 264 VAC, output: 24 VDC, 15 W | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0009 | Power supply for DIN rail, input: 85 … 264 VAC, output: 24 VDC, 60 W | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 3311 | S330/S331: Line filter for EMC protection | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 3313 | S330/S331: Connection board for looping 4 … 20 mA and pulse signals to PLC, mountable in wall casing A1666 + A1668 | Delivery time from 12 weeks | On request |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for SUTO S330/S331 using the special form.
