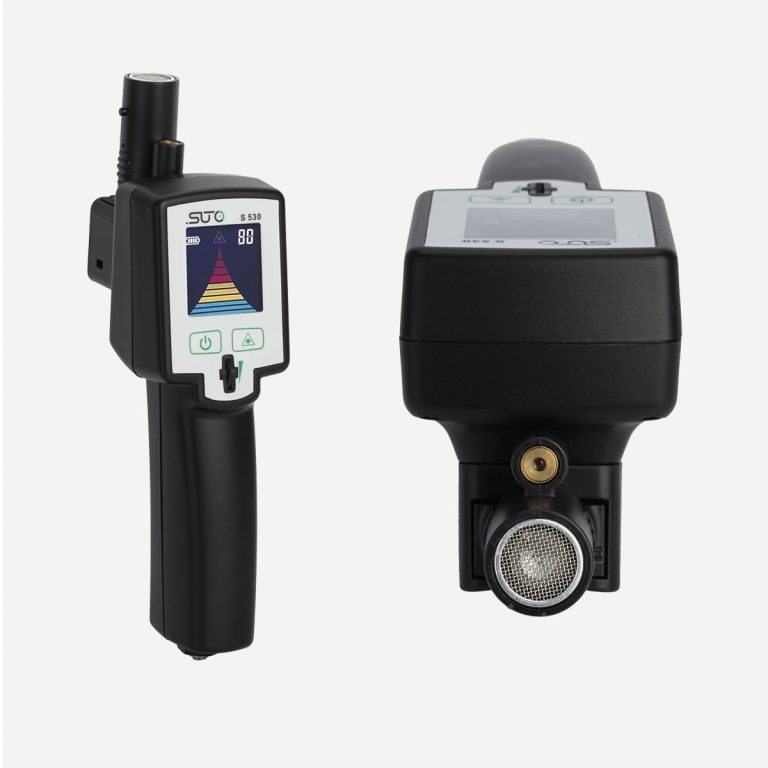

The S530 Ultrasonic Compressed Air Leak Detector offers an affordable and easy-to-use leak detection solution for compressed air and gas systems. The detection of leaks in compressed air systems by the S530 can help to avoid up to 30% of Energy costs per year.
Made in Germany. brand SUTO, model S530
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $1 144
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The S530 Ultrasonic Compressed Air Leak Detector offers an affordable and easy-to-use leak detection solution for compressed air and gas systems. The detection of leaks in compressed air systems by the S530 can help to avoid up to 30% of Energy costs per year.

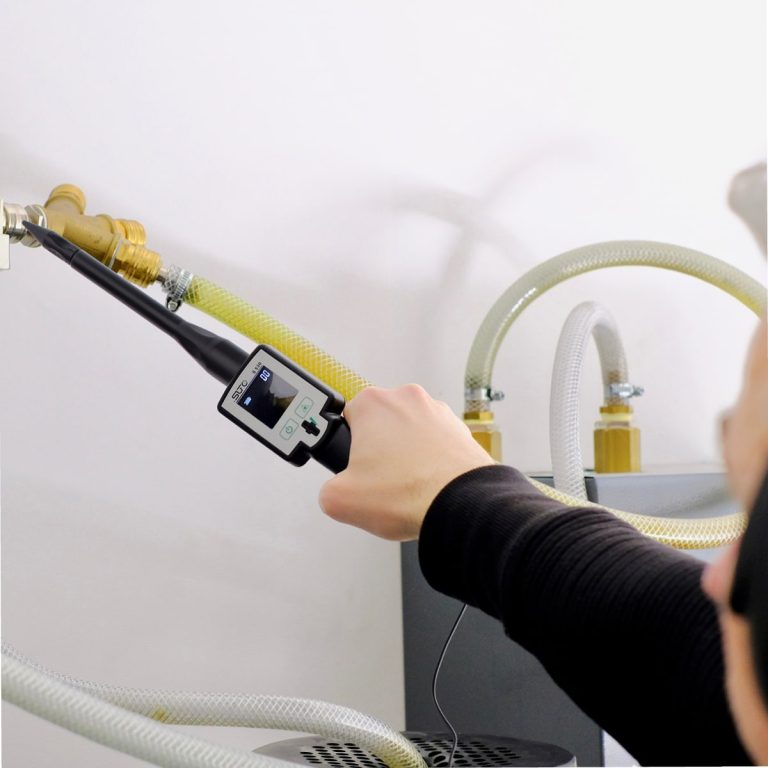

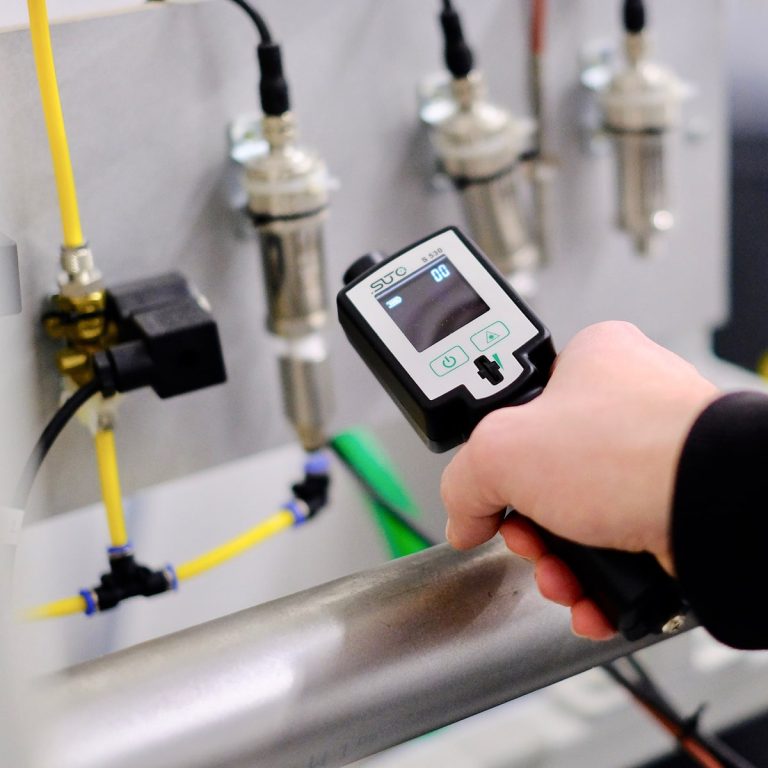

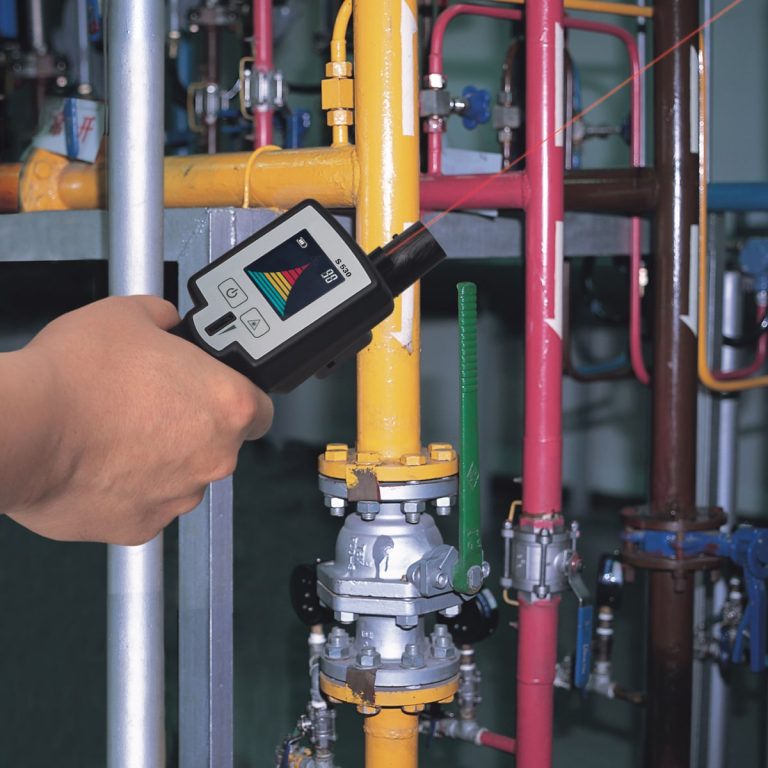

When gases are leaking through tubes and tanks, an ultrasonic sound is produced which can be detected by the S530 from even several meters away. The S530 transforms these inaudible signals into a frequency which can be easily heard by using the supplied noise cancelling headset. The integrated laser pointer helps to spot the leak from a distance. In unpressurized systems, an ultrasonic tone generator can be used whose sound will leak through small openings.
Features
Applications

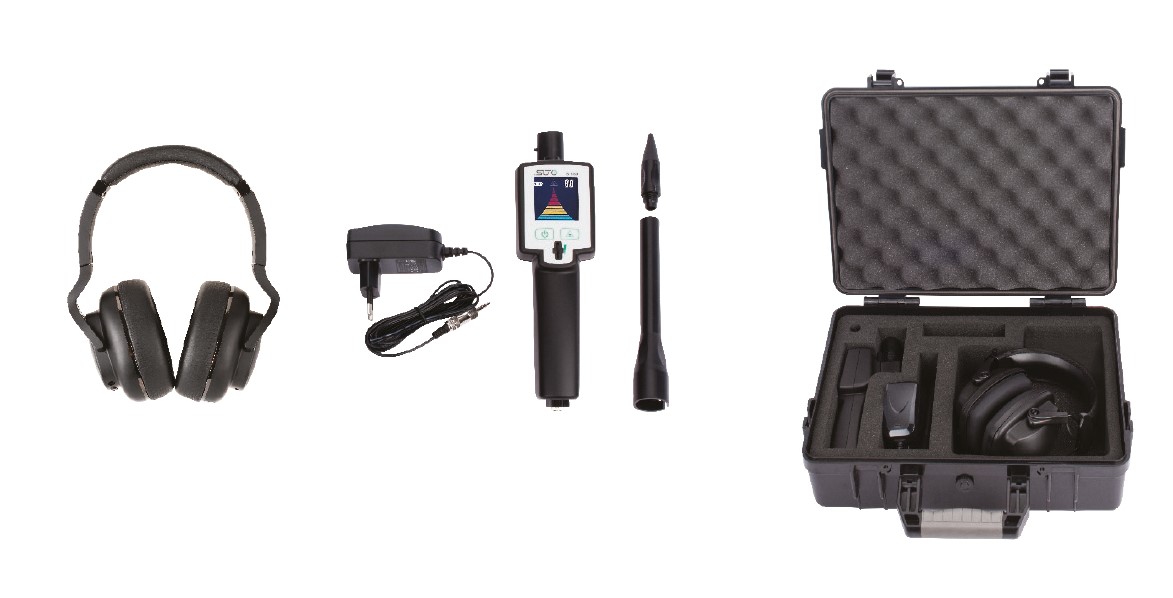

Contents of Set
| MEASUREMENT | |
| Flow | |
| Sensor | Ultrasonic leak detection sensor |
| Laser | 640 … 660 nm wavelength 0.4 … 0.5 mW output power |
| Supply | 5.0 Megapixel |
| Power supply | Internal NiMH rechargeable battery |
| Operating time | 6h |
| Headset | |
| Headset | Noise isolated head set |
| Headset connection | 3.5 mm stereo phone jack |
| GENERAL DATA | |
| Display | |
| Integrated | 3 colour black-mask LCD, 10 level |
| Material | |
| Housing | PC + ABS |
| Miscellaneous | |
| Protection class | IP30 |
| Approvals | CE |
| Weight | 2.5 kg for the full set |
| Operating conditions | |
| Medium | Compressed Air, refrigerants and any compressed gases |
| Ambient temperature | 0 … +40 °C |
| Ambient humidity | < 90 % rH |
| Storage temperature | -10 … +50 °C |
| Transport temperature | -20 … +50 °C |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| P601 0103 | S530 Ultrasonic Leak Detector (Eco Version) Set | Delivery time from 12 weeks | On request |
-
+
|
|
| P560 0102 | S530 Ultrasonic Leak Detector (Eco Version) | Delivery time from 12 weeks | On request |
-
+
|
|
| S605 0001 | S530 sensor unit | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0119 | Noise-isolated/canceling headset | Delivery time from 12 weeks | On request |
-
+
|
|
| A530 0101 | Focus tube and focus tip | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0133 | Ultrasonic Transmitter | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0101 | S530: Transport case, L400*W300*H130 mm | Delivery time from 12 weeks | On request |
-
+
|
|
| A554 0113 | S530: Battery charger | Delivery time from 12 weeks | On request |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for SUTO S530 using the special form.
You can buy SUTO S530 in UAE at a price starting from 1144 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. SUTO S530 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
