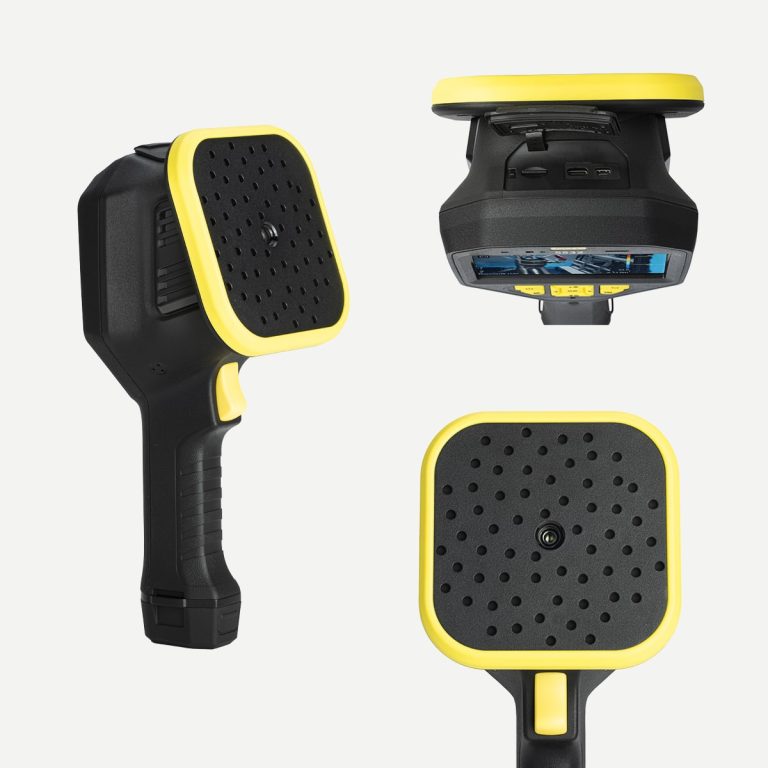

The S532 Acoustic Imaging Leak Detector is an advanced, professional tool designed specifically for industrial environments. It offers unparalleled sensitivity and accuracy in the detection and management of compressed air leaks and partial discharges.
Made in Germany. brand SUTO, model S532
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $15000
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The S532 Leak Detector uses advanced acoustic imaging technology to visualize and record compressed air leaks and partial discharges, even at distances of up to 100 meters. This ensures that no leak goes undetected, regardless of its location.
Precision and User-Friendly Design

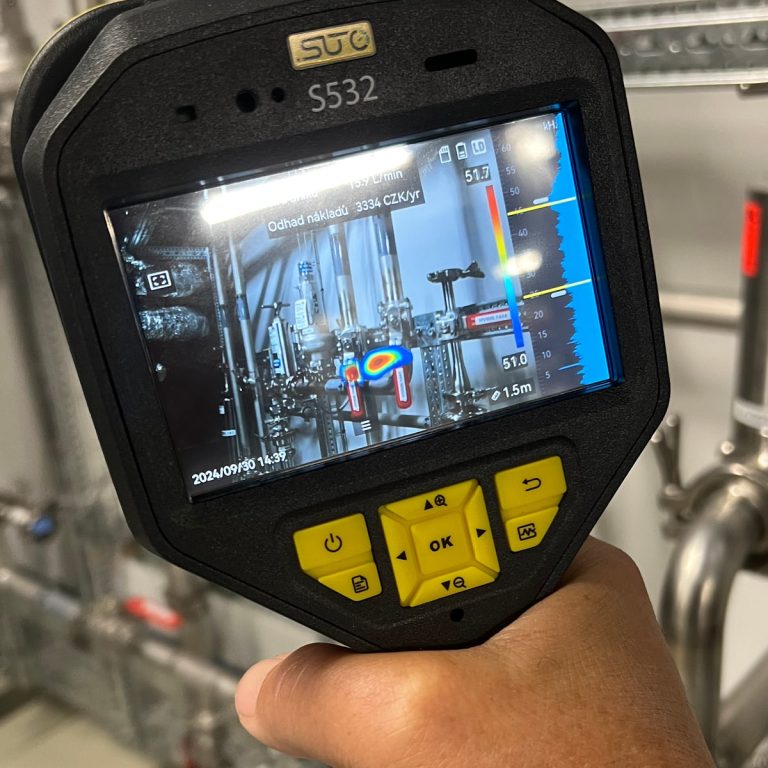

Equipped with 64 low-noise MEMS microphones, the S532 provides accurate detection over a wide frequency range from 0kHz to 96kHz. Its user-friendly design includes a 4.3″ LCD touch screen for easy operation and data visualization. Visual images overlaid with detection data facilitate fast and accurate problem identification.
Seamless integration with LMS
The S532 integrates seamlessly with the SUTO Leak Management System (LMS) for comprehensive data analysis and reporting. This integration increases operational efficiency and reduces maintenance costs, making the S532 an indispensable tool in industrial environments.
| ACOUSTIC | |
| Microphones | 64 low-noise MEMS microphones |
| Bandwidth | 0 kHz to 96 kHz |
| Distance | 0.3m~100m |
| Acoustic Image Palette | White Black, Black White, Rainbow, Fusion, Ironbow, Red Black, Rain, Blue Red |
| Dynamic Range | Low Limit: <-15dB High Limit: >120dB |
| Leak Rate | >0.008 l/min @ 6 bar from 0.5 m >0.013 l/min @ 5 bar from 1 m |
| Discharge Detection | Automatic detection 50 / 60 Hz |
| Discharge Type | Corona Discharge, Particle Discharge, Floating Discharge, Surface Discharge |
| DATA STORAGE AND COMMUNICATION | |
| Storage Media | Removable 64 GB SD Card |
| Image Storage Capacity | 20,000 images |
| Annotations | Voice note: max. 60 seconds; Text note: max. 255characters |
| Video Storage Capacity | 60 hours |
| Video File Format | MP4 |
| GENERAL DATA | |
| Display | 800 × 480 Resolution, 4.3’LCD Touch Screen |
| Digital Zoom | 1.0x to 16.0x continuous |
| USB Interface | USB Type-C |
| HDMI Interface | HDMI-D |
| Battery Operating Time | Approx. 3.5 hours |
| Battery Type | Dis-mountable and Rechargeable Li-ion Battery |
| Battery Charging Time | 5 hours to full charge |
| Protection level | IP54 |
| Power Supply | 5V DC/2A (Charging via USB) |
| Working Temperature Range | -20 °C to 50 °C |
| Storage Temperature Range | -20 °C to 60 °C |
| Approvals | CE, UKCA, RCM, ICES, KC |
| Relative Humidity | <90 % non-condensing |
| Weight | Approx. 940 g |

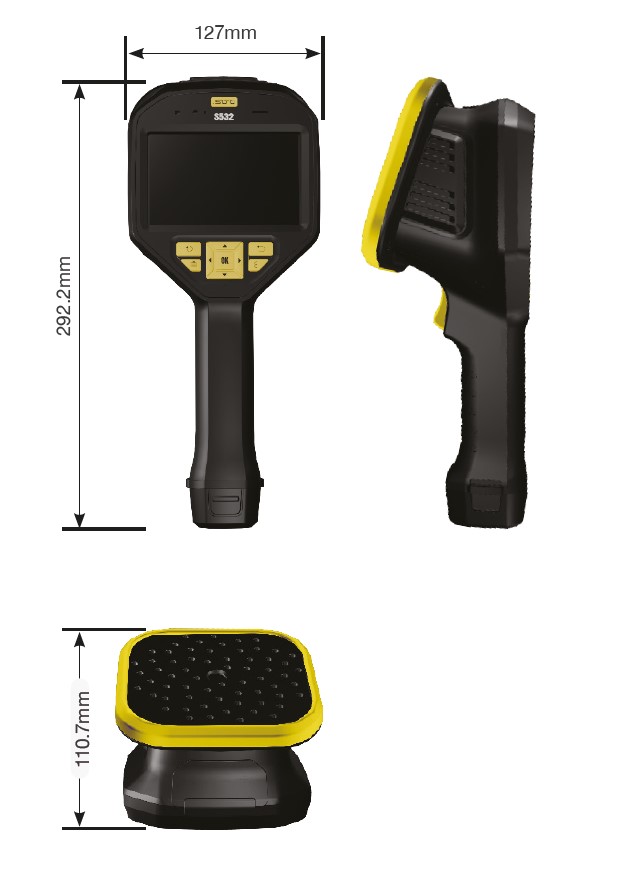

| Dimension | 292.2 × 127 × 110.7 mm (11.50 × 5.00 × 4.36 in) |
You can request the necessary certificates, documentation, instructions and user guide for SUTO S532 using the special form.
You can buy SUTO S532 in UAE at a price starting from 15000 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. SUTO S532 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
