TSI AeroTrak-Plus A100
Photo TSI AeroTrak-Plus A100 Description TSI AeroTrak-Plus A100 Specifications TSI AeroTrak-Plus A100 Video TSI AeroTrak-Plus A100 Model Chart TSI AeroTrak-Plus A100 Accessories for TSI AeroTrak-Plus A100 User Manual for TSI AeroTrak-Plus A100 Related instruments to TSI AeroTrak-Plus A100
The TSI AeroTrak™+ A100 Series portable airborne particle counters are designed for cleanroom certification and monitoring, as well as specialized applications including gas testing and filter scanning.
Features include an intuitive graphical user interface, an LED status light bar, Wi-Fi connectivity and a filter test and investigate mode.
Depending on the model, particle size ranges are 0.3–10 µm or 0.5–10 µm, with flow rates of 28.3, 50 or 100 L/min and six user-selectable particle size channels.
Made in USA. brand TSI, model AeroTrak-Plus A100
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price by request
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
AeroTrak®+ portable airborne particle counters (APCs) offer advanced features:
These features lead to a better user experience and easy compliance. Built in standards for configuration and reports to meet the standards driving the market include:
Standalone or as part of an easy to use complete monitoring system, AeroTrak™+ Portable Particle Counter A100 Series meets your needs.

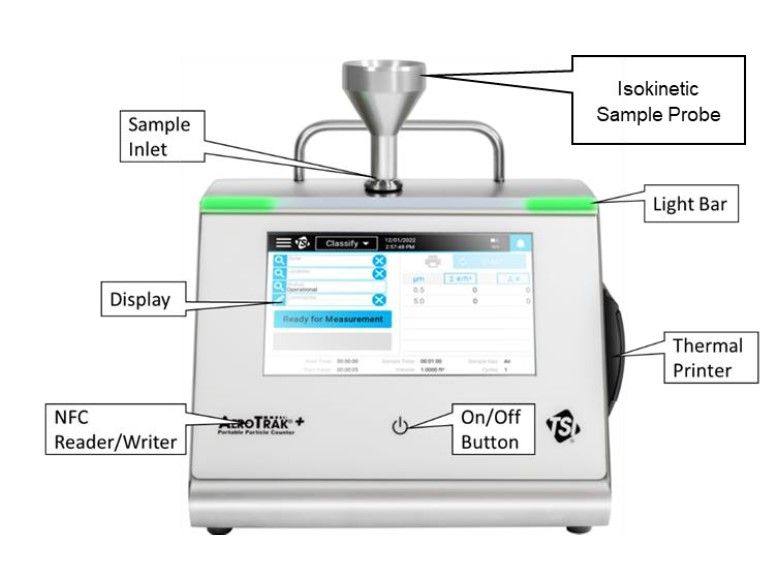

The image below shows the front panel of the portable particle counter.

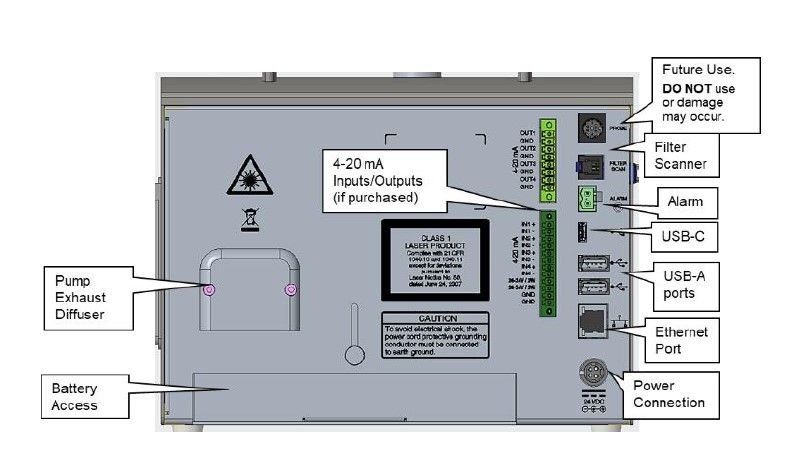

The image below shows the rear panel of the portable airborne particle counter.
Features and Benefits
Applications
Manually counting particles with the TSI AeroTrak™+ A100 portable particle counter
An overview of the intuitive interface: particle counting can begin with a simple start command, without complex preliminary setup.
Cleanroom classification in accordance with ISO 14644 using the TSI AeroTrak™+ A100
A step-by-step demonstration of cleanroom classification testing to support assessment against applicable ISO and GMP Annex 1 requirements.
Monitoring sampling progress during cleanroom certification or monitoring with the TSI AeroTrak™+ A100 portable airborne particle counter
The colour-coded sample tracking feature helps users monitor sampling progress during cleanroom certification or routine monitoring:
Generating PDF reports with the TSI AeroTrak™+ A100
An overview of the reporting functionality, including report generation in PDF and secure XML formats.
Creating zone templates for routine cleanroom monitoring with the TSI AeroTrak™+ A100 portable particle counter
A demonstration of how to configure and save zone sampling parameters and alarm limits for routine monitoring in accordance with standard operating procedures (SOPs).
| Light Source | Laser Diode |
| Vacuum Source | Internal pump with patented flow control technology and automatic manifold detection (patent pending) |
| Laser Warranty | Five Years |
| Instrument Warranty | Two Years |
| Calibration Frequency | One Year |
| Communication | Modbus TCP, Ethernet, USB, Wireless |
| Near Field Communication | Operator and location |
| Wireless Option | RTU Wireless Option Available |
| External Surface | Stainless steel |
| Analog Output Options | 4 Channels 4-20 mA output: 3 User selectable particle sizes-linear or log-scale 1 Status channel |
| Standards | CE, JIS B9921, ISO 21501-4 |
| Operating Range | 34° to 95°F (1° to 35°C), 5% to 95% non-condensing |
| Zero Count | <1 count / 5 minutes at the 95% UCL (per ISO 21501-4 and JIS) |
| Sampling Duration | 1 second to 24 hours, continuous |
| Languages | English, French, German, Italian, Polish, Portuguese, Spanish, Chinese (Simplified), Japanese, Korean |
| Status Indicator (LED Lightbar) | Sampling, Alert, Sampling Complete |
| Alarm Output | Normal open dry contact rated 0 to 60 V AC/DC, 1.5 A peak, 0.5 A continuous |
| Data Storage | 250,000 sample records, 15 minutes of 1 second data with FMS |
| Access Control | Multilevel user access with audit trail |
| Reports | ISO 14644-1, EU-GMP, China GMP. Reports can be printed or exported to secure XML or PDF |
| Dimensions (H × W × D) | 8.9 in × 9.8 in × 8.7 in (22.6 cm × 25 cm × 22.2 cm) |
| Weight | 4.8 kg (10.5 lbs) with battery 4.3 kg (9.5 lbs) without battery 5.2 kg (11.5 lbs) with two batteries |
| Power (AC Adapter) | 100–240 VAC, 50–60 Hz, 1.5 A. Max mains supply voltage fluctuations not exceeding ±10% of rated voltage. DC power requirement to instrument: 24 VDC @ 5.0 Amps |
| Storage Range | -40° to 158°F (-40° to 70°C) / Up to 98% non-condensing relative humidity |
| Printer | Built-in thermal printer (foreign languages supported) |
| Included Accessories | Power cord, battery, isokinetic probe, 3 m (10 ft) tubing, purge filter, printer paper, USB cable, alarm connector, Quick Start Guide, Operation Manual and TrakPro™ Lite Secure Software |
| Optional Accessories | Electronic filter scanning probe, basic filter scanning probe, additional battery, dual-port external battery charger, printer paper, isokinetic probes, sample tubing, shipping case |
| A100-31 | A100-35 | A100-51 | A100-55 | A100-50 | |
|---|---|---|---|---|---|
| Size Range | 0.3 µm to 10 µm | 0.5 µm to 10 µm | |||
| Flow Rate | 1 CFM (28.3 LPM) with ± 5% accuracy |
1.77 CFM (50 LPM) with ± 5% accuracy |
1 CFM (28.3 LPM) with ± 5% accuracy |
1.77 CFM (50 LPM) with ± 5% accuracy |
3.53 CFM (100 LPM) with ± 5% accuracy |
| Particle Channel Sizes |
0.3 µm to 10.0 µm, (6) user selectable channels |
0.3 µm to 10.0 µm, (6) user selectable channels |
0.5 µm to 10.0 µm, (6) user selectable channels |
0.5 µm to 10.0 µm, (6) user selectable channels |
0.5 µm to 10.0 µm, (6) user selectable channels |
| Size Resolution | <15% @ 0.5 µm (per ISO 21501-4) |
||||
| Counting Efficiency |
50% at 0.3 µm; 100% for particles >0.45 µm | 50% at 0.5 µm, 100% for particles >0.75 µm | |||
| Concentration Limit |
8,110,000/ft³ (286,383,300/m³) @ 10% coincidence loss all models |
||||
TSI AeroTrak A100-31A, A100-35A, A100-50A, A100-51A and A100-55A particle counters have a 4–20 mA analog output signal (indicated by the letter A added to the model number).
| Photo | Model | Description |
|---|---|---|
|
SPSS1-A100 | Sample Probe, Stainless Steel, Isokinetic (connects to instrument) — 28.3 L/min |
|
|
SPSS5-A100 | Sample Probe, Stainless Steel, Isokinetic (connects to instrument) — 50 L/min |
|
|
SPSS0-A100 | Sample Probe, Stainless Steel, Isokinetic (connects to instrument) — 100 L/min |
|
700070 | Filter Scanning Probe (basic) — 28.3 L/min |
|
|
700071 | Filter Scanning Probe (basic) — 50 L/min |
|
|
700088 | Filter Scanning Probe (basic) — 100 L/min |
|
700094 | Filter Scanning Probe (electronic with start/stop, LED, sound) — 28.3 L/min |
|
|
700095 | Filter Scanning Probe (electronic with start/stop, LED, sound) — 50 L/min |
|
|
700096 | Filter Scanning Probe (electronic with start/stop, LED, sound) — 100 L/min |
|
700062 | Tubing, Superthane, Clear 3/8-inch ID x 1/2-inch OD (100 feet) Tubing, Superthane, Clear 1/2-inch ID x 5/8-inch OD (100 feet) |
|
700027 | Printer Paper (10 rolls) |
|
DBC-A100 | Dual Battery Charger Supplied w/ US Power Cord (obtain plug adaptor locally if needed) |
|
WIFI-B-A100 | Wireless (Wi-Fi®) / Bluetooth® 4.0 Dongle USB-A, 802.11b/g/n |
|
CCS-A100 | Heavy Duty Carry Case with Foam Inserts (can be used for shipping) |
|
7960 | High Pressure Diffuser for compressed gas testing |
|
PSU-A100 | Power Supply: 24 VDC, 5.0 A; 100–240 VAC input; KPPX-4 plug. Power cord included is country dependent. |
|
700057 | Power Cord, US |
|
|
700058 | Power Cord, UK |
|
|
700059 | Power Cord, Euro |
|
BAT-A100 | Battery Pack (can install up to 2 ea.) |
|
|
TUBE150-A100 | Sample Tubing, Clear, 3/8-inch ID x 1/2-inch OD (28.3 or 50 L/min models) |
|
|
TUBE100-A100 | Sample Tubing, Clear, 1/2-inch ID x 5/8-inch OD (100 L/min model) |
|
|
SPAL1-A100 | Sample Probe, Aluminum, Isokinetic (connects to instrument) — 28.3 L/min model |
|
|
SPAL5-A100 | Sample Probe, Aluminum, Isokinetic (connects to instrument) — 50 L/min model |
|
|
SPAL0-A100 | Sample Probe, Aluminum, Isokinetic (connects to instrument) — 100 L/min model |
|
SPMT150-A100 | Probe Mount (for use with sample tubing) — 28.3 and 50 L/min models |
|
|
SPMT100-A100 | Probe Mount (for use with sample tubing) — 100 L/min model |
|
700360 | Computer Cable, USB-A to USB-C (2 meters) |
|
FIL150-A100 | Filter, HEPA Purge/Zero Filter Assembly (28.3 and 50 L/min models) |
|
|
FIL100-A100 | Filter, HEPA Purge/Zero Filter Assembly (100 L/min model) |
|
ALMOUT-A100 | Alarm Accessories, 2-pin Alarm Connector (not wired) |
