Handheld particle counter TRIO.BAS CONT.AIR designed for cleanroom monitoring, air quality control and industrial applications.
Airflow rate: 2.83 l/min; 6 size channels; Particle size range: from 0.3 µm to 25 µm; 4.3’’ WQVGA color touchscreen; Up to 45,000 records stored.
Made in Italy. brand TRIO.BAS, model CONT.AIR
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price by request
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The new CONT.AIR is a handheld particle counter designed for cleanroom monitoring, air quality control, industrial applications, occupational health and safety, and scientific research.
This instrument is used to detect, count and size the aerosol particles present in the air. Unlike a microbial air sampler, which gives the number and the type of micro-organism captured on the agar plate, the particle counter gives the number and the size of the non-viable particles present in the air. These particles can be the transport agents for viable ones (micro-organisms).
The instrument detects particles in a range from 0.3 to 25 µm across 6 pre-set channels (generally 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 µm). It operates at a flow rate of 0.1 CFM (2.83 l/min). It provides data output both in standard cleanroom formats and in mass concentration (µg/m³).

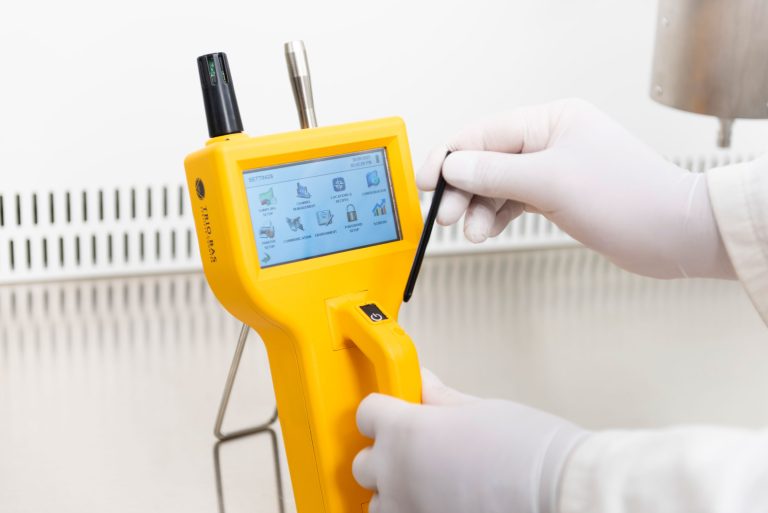

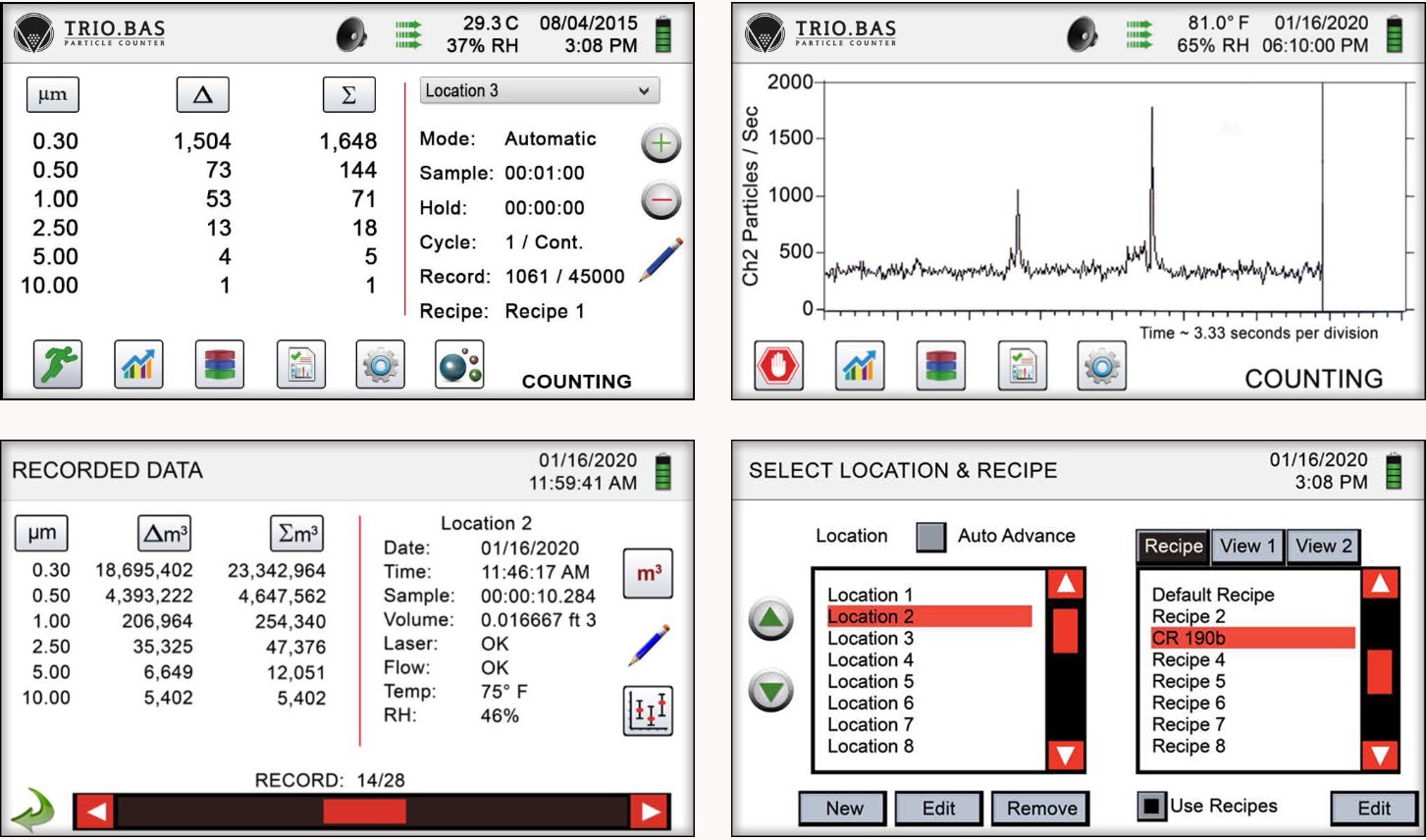

The firmware is user friendly, and the presence of a pen facilitates the use of the touchscreen keyboard. The possibility to integrate the instrument with temperature and relative humidity probes generates more detailed environmental assessments. Light, ergonomic and easy to use as a portable device. The instrument is patented.
Applications
The most common applications for the handheld particle counter are:
Performances
| Flow rate: | 0.1 CFM (2.83 l/min) |
| Particle size range: | From 0.3 µm to 25 µm (diameter) |
| Size channels: | Factory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 µm |
| Concentration limits: | 15,000,000 particles/ft³ @ 10% coincidence (ISO 21501-4) 30,000,000 particles/ft³ @ 10% coincidence (tested and validated) |
| Battery: | 10 hours in continuous operation with a full charge |
| Light source: | Long-life laser diode |
| Count alarms: | 1 to 9,999,999 counts |
| Zero count: | < 1 count/60 minutes |
| Counting efficiency: | 50% at 0.3 µm – 100% at 0.5 µm |
| Counting modes: | Particles/second, real time meter, cumulative/differential (count/m³ and count/ft³) and mass concentration |
| Display: | 4.3’’ WQVGA color touchscreen |
| Vacuum source: | Internal pump with automatic flow control |
| Filtered exhaust: | Internal HEPA filter |
| Audible alarms: | Customizable |
| Certification: | CE mark |
| Battery: | Removable Li-ion – recharge time 4 hours or less than 2 hours with external battery charger |
| Exportable data reports: | ISO 14644-1, EU GMP Annex 1, FS 209E |
| Communication: | Ethernet, USB, Modbus RS485 – RS232 |
| Environmental sensors: | Temperature and relative humidity probes |
| Standards: | ISO 21501-4 and JIS B9921 |
| Calibration: | Suggested minimum 1 per year |
| External body: | ABS in technopolymer |
| Dimensions: | 130x110x310H mm including handle |
| Weight: | 1 kg |

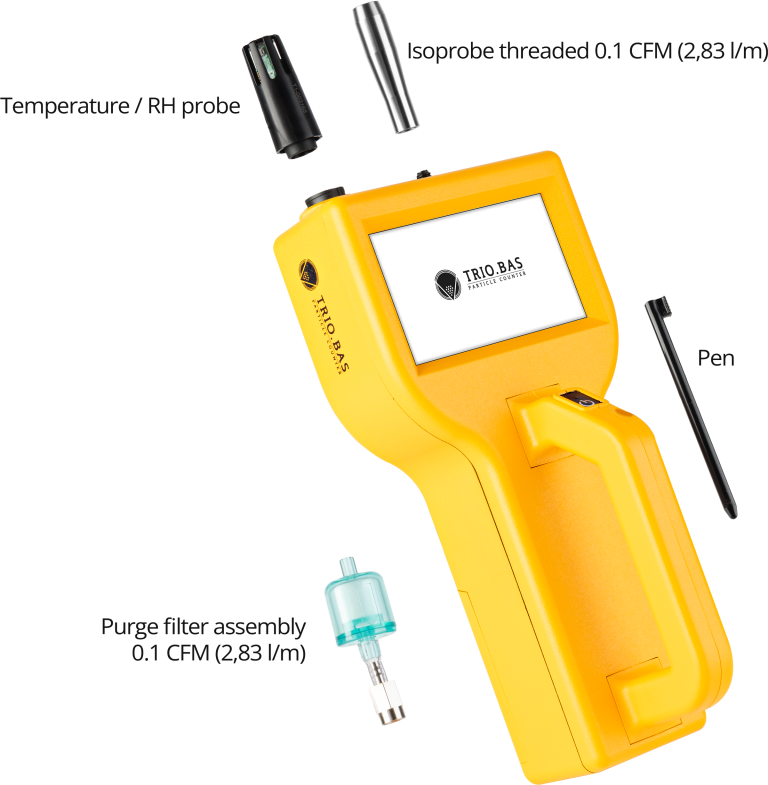

| Accessories: | User manual, Management Software on USB key, isokinetic probe, temperature and relative humidity sensor, zero-count filter, battery, USB cable and power supply |
| Optional accessories: | Printed user manual, carrying case, spare, external battery charger, thermal printer |
| Language: | English |
| Sample time: | From 1 second to 99 hours |
| Power supply: | 110 to 240 VAC 50/60 Hz |
| Operating conditions: | 5-40 °C / humidity 20%-90% |
| Model | Description | Availability | Price | Qty | Buy |
|---|---|---|---|---|---|
| 917 | Handheld Particle Counter with isoprobe 0.1 CFM (2.83 l/min), power supply, temperature and humidity probe, calibration certificate and light carrying case | Delivery time from 12 weeks | On request |
-
+
|
You can request the necessary certificates, documentation, instructions and user guide for TRIO.BAS CONT.AIR using the special form.
You can buy TRIO.BAS CONT.AIR in UAE at a price starting from by request $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. TRIO.BAS CONT.AIR price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
