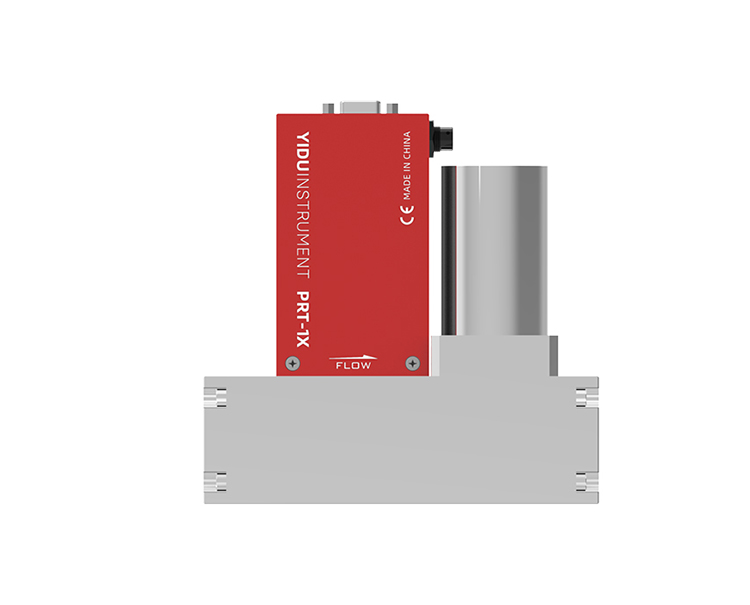

Stable Gas Mass Flow Controller for Integration into Industrial Equipment
Made in China. brand YIDU, model EC
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The EC series laminar gas mass flow controller differs from the SC series controller in that it does not have a touchscreen display. The technology is based on the laminar differential principle and is independent of the inlet flow conditions. Combined with high-precision pressure and temperature sensors that provide accurate pressure and temperature compensation, the product quickly reaches the set flow rate over a wide range of temperatures and pressures, ensuring measurement accuracy and control stability. Analog and digital communication methods are suitable for customers who perform related process control.
Features
Principle Introduction
Laminar mass flow controllers leverage patented internally-compensated laminar differential pressure technology [Patent No.: ZL20151 0610447.5]. Equipped with integrated pressure and temperature sensors, they comprehensively compensate for discrepancies between volumetric and mass flow rates induced by thermal/pressure variations. Precision solenoid proportional valves automatically modulate gas flow according to setpoints, delivering exceptionally accurate and stable flow measurement and control.
Application
When precise gas flow control or automated production line integration is required, laminar mass flow controllers serve as essential instruments deployed across research laboratories and diverse industrial process automation systems, delivering superior stability and accuracy.
| Model | EC100 | EC200 | EC300 | EC400 | EC450 |
| Flow range | 20 SCCM ~ 500 SLPM | 5 SCCM ~ 500 SLPM | 0.5 SCCM ~ 5000 SLPM | 2 SCCM ~ 2000 SLPM | 2 SCCM ~ 2000 SLPM |
| Valve type | N/C Normally Closed | ||||
| Accuracy | ±1.0% S.P. (2%～100% F.S.) | ±1.0% S.P. (30%～100% F.S.) ±1.0% F.S. (1%～30% F.S.) |
±1.0% S.P. (20%～100% F.S.) ±0.2% F.S. (0.5%～20% F.S.) |
±1.0% S.P. (10%～100% F.S.) ±0.1% F.S. (0.5%～10% F.S.) |
±0.5% S.P. (20%～100% F.S.) ±0.1% F.S. (0.5%～20% F.S.) |
| Repeatability | ±0.2% F.S. | ±0.2% Rd (20%～100% F.S.) ±0.04% F.S. (0.5%～20% F.S.) |
±0.1% Rd (20%～100% F.S.) ±0.02% F.S. (0.5%～20% F.S.) |
||
| Pressure shift | ≤±0.1% F.S./100 kPa (Benchmark 100 kPaA) | ≤±0.1% Rd/100 kPa (Benchmark 100 kPaA) | |||
| Temperature shift | ≤±0.05% F.S./°C (Benchmark 25°C) | ≤±0.02% F.S./°C (Benchmark 25°C) | |||
| Operating range | 2%～100% F.S. | 1%～100% F.S. | 0.5%～100% F.S. | ||
| Response time | ≤700 ms | ≤600 ms | |||
| Warm-up time | ≤1 s | ||||
| Fluid temperature range | 0℃～50℃ | -20℃～60℃ | |||
| Ambient temperature range | 0℃～50℃ | -20℃～50℃ | |||
| Operating humidity range | 0%–98% (non-condensing) | ||||
| Operating differential pressure range | 50 kPa–700 kPa (≤5 SLPM); 100 kPa–700 kPa (10 SLPM); 50 kPa–700 kPa (20 SLPM); 200 kPa–700 kPa (30–1000 SLPM); 400 kPa–700 kPa (1500–2000 SLPM); 450 kPa–700 kPa (3000–5000 SLPM) |
||||
| Maximum operating pressure | 1.5 MPa | ||||
| Maximum operating pressure | 650 kPaA | 900 kPaA | |||
| Power supply voltage | 24 V ±20% | ||||
| Power consumption current | < 300 mA (< 7.2 W) | ||||
| Installation orientation | Unrestricted (any orientation) | ||||
| Wetted materials | Stainless steel SUS316L, FKM (fluororubber), FFKM (perfluoroelastomer), EPDM (ethylene propylene diene monomer rubber), Neoprene | ||||
| Seal material | O-rings: FKM (fluororubber), FFKM (perfluoroelastomer), EPDM (ethylene propylene diene monomer rubber), Neoprene | ||||
| Communication interface | RS485, PROFIBUS, EtherCAT, PROFINET, DeviceNet, 4–20 mA / 0–5 V | ||||
