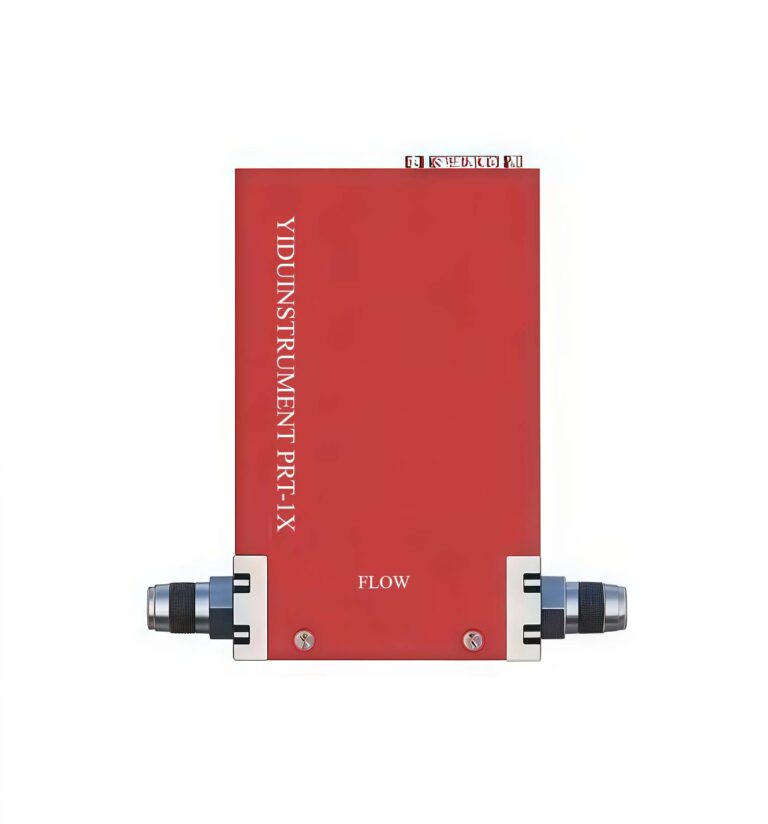

Pressure regulation and flow measurement — combined in a single solution. The device supports standard communication protocols and various types of gas connections. Pressure range: 2 kPa abs.~2 MPa abs.
Made in China. brand YIDU, model EPC
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Features
Principle Introduction
The pressure controller achieves precise pressure regulation by employing a built-in high-accuracy absolute pressure sensor for real-time measurement and implementing closed-loop negative feedback control via a solenoid proportional valve. An integrated flow conditioning module stabilizes gas flow regimes to minimize measurement fluctuations, while optionally outputting parameters like temperature and flow rate upon request. By adjusting the spatial configuration between the absolute pressure sensor and proportional valve, the system seamlessly switches between upstream or downstream pressure control modes. Our proprietary absolute pressure sensor delivers exceptional performance with <10 Pa resolution and sub-millisecond response time, ensuring rapid and accurate pressure measurements. Application
Precision pressure control for diffusion sources in semiconductor fabrication; backside cooling gas pressure management for silicon wafers; intake pressure regulation in small fuel cell stack testing; and analytical chamber pressure control in instrumentation systems.
| Model | EPC100 | EPC200 |
| Pressure range | 2 kPaA ~ 2 MPaA | 2 kPaA ~ 2 MPaA |
| Accuracy | ±0.3%F.S. | ±0.15%F.S. |
| Repeatability | ±0.2%F.S. | |
| Pressure shift | Zero：≤±0.2%F.S./100 KPa； Span：≤±0.2%F.S./100 Kpa (Benchmark 100 KPaA) |
Zero：≤±0.05%F.S./100 KPa； Span：≤±0.05%F.S./100 Kpa (Benchmark 100 KPaA) |
| Temperature shift | Zero：≤±0.05% F.S./℃； Span：≤±0.05% F.S./℃（Benchmark 25℃） |
Zero：≤±0.02% F.S./℃； Span：≤±0.02% F.S./℃（Benchmark 25℃） |
| Operating range | 1% ~ 100%F.S. | |
| Valve type | N/C (Normally closed) | |
| Control type | Control upstream or downstream pressure | |
| Full scale flow | 0.5 SCCM ~ 5000 SLPM | |
| Warm-up time | ≤1 s | |
| Operating temperature | -20°C ~ 60°C | |
| Proof pressure | 2.5 MPaA | |
| Supply voltage | 24 VDC (±20%) | |
| Installation | None | |
| Process connectors | G-Thread, VCR, Swagelok, IGS | |
| Wetted materials | SUS316L, FKM, FFKM, EPDM, Neoprene | |
| Sealing material | O-Ring Seal: Fluoroelastomer | |
| Commumication mode | S485, PROFIBUS, EtherCAT，PROFINET，DeviceNet, 4～20mA / 0～5V | |
You can request the necessary certificates, documentation, instructions and user guide for YIDU EPC using the special form.
You can buy YIDU EPC in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. YIDU EPC price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
