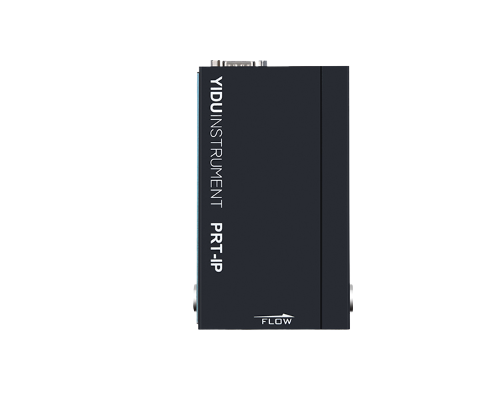

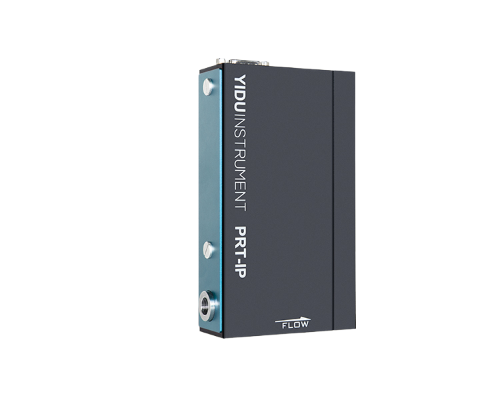

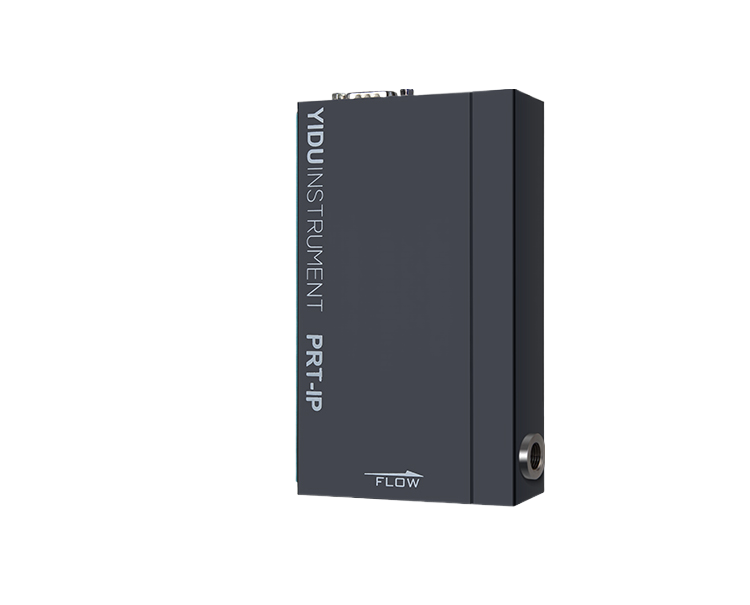

The MC series laminar gas mass flow controller differs from the SC series controller in that it does not have a touchscreen display. The technology is based on the laminar differential principle and is independent of the inlet flow conditions. Combined with high-precision pressure and temperature sensors that provide accurate pressure and temperature compensation, the product quickly reaches the set flow rate over a wide range of temperatures and pressures, ensuring measurement accuracy and control stability. Analog and digital communication methods are suitable for customers who perform related process control.
Principle Introduction
Laminar mass flow controllers leverage patented internally-compensated laminar differential pressure technology. Equipped with integrated pressure and temperature sensors, they comprehensively compensate for discrepancies between volumetric and mass flow rates induced by thermal/pressure variations. Precision solenoid proportional valves automatically modulate gas flow according to setpoints, delivering exceptionally accurate and stable flow measurement and control.
Application
When precise gas flow control or automated production line integration is required, laminar mass flow controllers serve as essential instruments deployed across research laboratories and diverse industrial process automation systems, delivering superior stability and accuracy.
| Model | PIPG-MC101 PIPG-MC201 |
PIPG-MC102 PIPG-MC202 |
PIPG-MC120 PIPG-MC220 |
PIPG-MC150 PIPG-MC250 |
| Flow range | 0.5, 1, 2, 5, 10, 20 SCCM | 50, 100, 200, 500, 1000, 2000 SCCM | 5, 10, 20, 50, 100, 200 SLPM | 500, 1000, 1500, 2000, 3000, 4000, 5000 SLPM |
| Valve type | N/C Normally Closed | |||
| Accuracy | MC100: ±1.0% S.P. (set point) (within 20%–100%), ±0.2% F.S. (full scale) (within 1%–20%), accuracy range (-20℃ to 60℃) MC200: ±0.5% S.P. (set point) (within 20%–100%), ±0.1% F.S. (full scale) (within 1%–20%), accuracy range (-20℃ to 60℃) MC100-WR: ±1.0% S.P. (set point) (within 10%–100%), ±0.1% F.S. (full scale) (within 1%–10%), accuracy range (-20℃ to 60℃) |
|||
| Repeatability | MC100: ±0.2% F.S. MC200: ±0.1% F.S. MC100-WR: ±0.2% F.S. |
|||
| Pressure shift | Zero: ≤±0.2% F.S./100 kPa; Span：≤±0.2% F.S./100 kPa (Benchmark 100 KPaA) |
|||
| Temperature shift | Zero: ≤±0.02% F.S./℃; Span：≤±0.02% F.S./℃ (Benchmark 25℃) |
|||
| Operating range | 1%～100% F.S. | |||
| Response time | ≤700 ms | |||
| Warm-up time | ≤1 s | |||
| Fluid temperature range | -20℃～60℃ | |||
| Ambient temperature range | -20℃～50℃ | |||
| Operating humidity range | 0%–98% (non-condensing) | |||
| Operating differential pressure range | 100 kPa ~ 700 kPa | |||
| Maximum operating pressure | 1.5 MPaA | |||
| Maximum operating pressure | 1 MPa | |||
| Power supply voltage | 24 V ±20% | |||
| Power consumption current | < 500 mA (< 12 W) | |||
| Installation | None (any orientation) | |||
| Wetted materials | Stainless steel SUS316L | |||
| Seal material | O-rings: Fluororubber (FKM) | |||
| Communication interface | Standard: Digital: RS485 Optional: PROFIBUS, Analog: 0–5 V / 4–20 mA |
|||
