A portable solution for measurements anywhere. The device supports: direct touch switching, free change of gas environment; touch control. The flow meter is highly reliable and resistant to overloads and electromagnetic interference.
Flow measurement range: 0.5 cm³/min ~ 5000 l/min; Fast response: 100 ms
Made in China. brand YIDU, model P
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

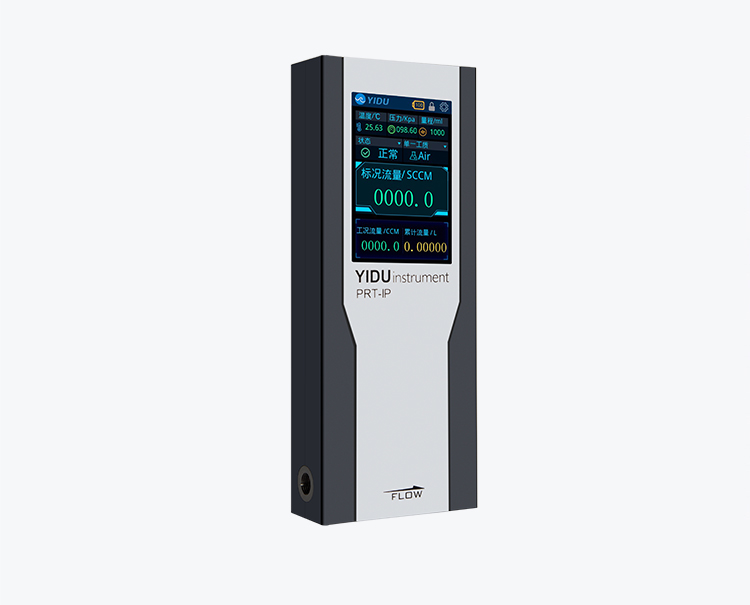

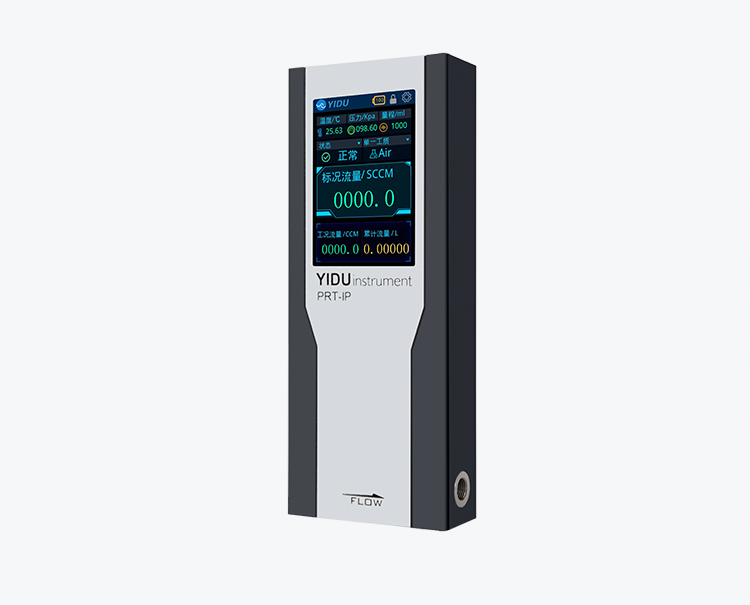

The P-series portable laminar mass gas flow meters, developed on the basis of the S-series laminar mass gas flow meters, are equipped with a rechargeable battery and can be used in conditions where there is no power source, with an autonomous operation time of up to 6-8 hours. P-series portable flow meters provide laboratory-grade accuracy, reducing downtime and potential impact on the process. Instant start-up and real-time readings for various gases in a temperature range from -20°C to 60°C and humidity from 0% to 98%.
Features
Principle Introduction
Laminar Mass Flow Meter Utilizing patented internally-compensated laminar differential pressure technology, this instrument integrates pressure and temperature sensors to fully compensate for discrepancies between volumetric and mass flow rates induced by thermal/pressure variations. It delivers rapid, precise real-time measurements of five critical parame- ters: : real-time temperature, pressure, volumetric flow, mass flow, and totalized flow， Should you require accurate and rapid gas flow measurement, leak rate detection, or a reference meter for measurement transfer and calibration applications, YIDU flow meters provide an optimal solution.
Application
| Model | PIPG-P101 PIPG-P201 |
PIPG-P102 PIPG-P202 |
PIPG-P120 PIPG-P220 |
PIPG-P150 PIPG-P250 |
| Flow range | 0.5, 1, 2, 5, 10 SCCM | 50, 100, 200, 500, 1000, 2000 SCCM | 5, 10, 20, 50, 100, 200 SLPM | 500, 1000, 1500, 2000, 3000, 4000, 5000 SLPM |
| Accuracy | P100: ±1.0% Rd (20%～100% F.S.) или ±0.2% F.S. (≤20% of range) P100-WR: ±1.0% Rd (10%～100% F.S.) или ±0.1% F.S. (≤10% of range) |
|||
| Repeatability | P100: ±0.2% F.S. P100-WR: ±0.2% F.S. |
|||
| Pressure shift | Zero: ≤±0.2% F.S./100 kPa; Span: ≤±0.2% F.S./100 kPa (Benchmark 100 kPaA) |
|||
| Temperature shift | Zero: ≤±0.02% F.S./°C; Span: ≤±0.02% F.S./°C (Benchmark 25°C) |
|||
| Operating range | 1%～100% F.S. (up to 120% F.S.) | |||
| Response time | ≤100 ms | |||
| Warm-up time | ≤1 s | |||
| Fluid temperature range | -20℃～60℃ | |||
| Ambient temperature range | -20℃～50℃ | |||
| Operating humidity range | 0%–98% (non-condensing) | |||
| Full-scale pressure drop | 4 kPa | |||
| Maximum operating pressure | 1.5 MPa | |||
| Operating pressure range | 60 kPa ~ 1 MPa | |||
| Installation | None (any orientation) | |||
| Wetted materials | SUS316L, Aerospace-grade aluminum | |||
| Battery life | 6 h | |||
| Display type | LCD touch screen | |||
| Commumication mode | Standard: Digital: RS485 Optional: Analog: 0–5 V / 4–20 mA |
|||
| Power supply | (100–240) VAC | |||
You can request the necessary certificates, documentation, instructions and user guide for YIDU P using the special form.
You can buy YIDU P in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. YIDU P price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
