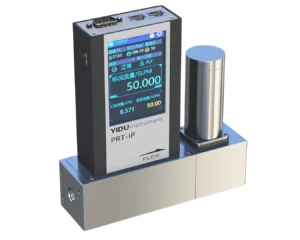

Mass flow meter that meets the requirements of scientific research. It is possible to switch between different gases using a sensor without having to enter conversion factors.
Flow measurement range: 0.5 ~ 2000 cm³/min (SCCM); 5 ~ 5000 l/min (standard); digital interface available: RS485 and analog: 0~5 V / 4～20 mA.
Made in China. brand YIDU, model S
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

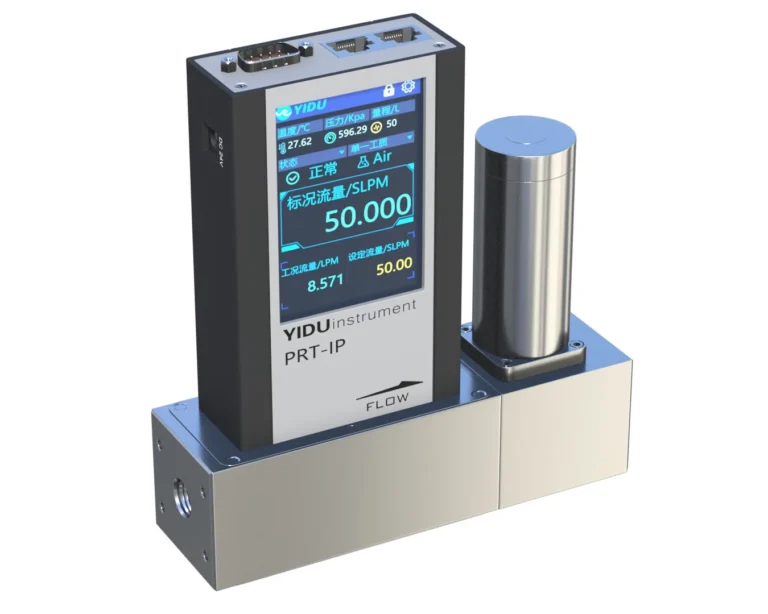

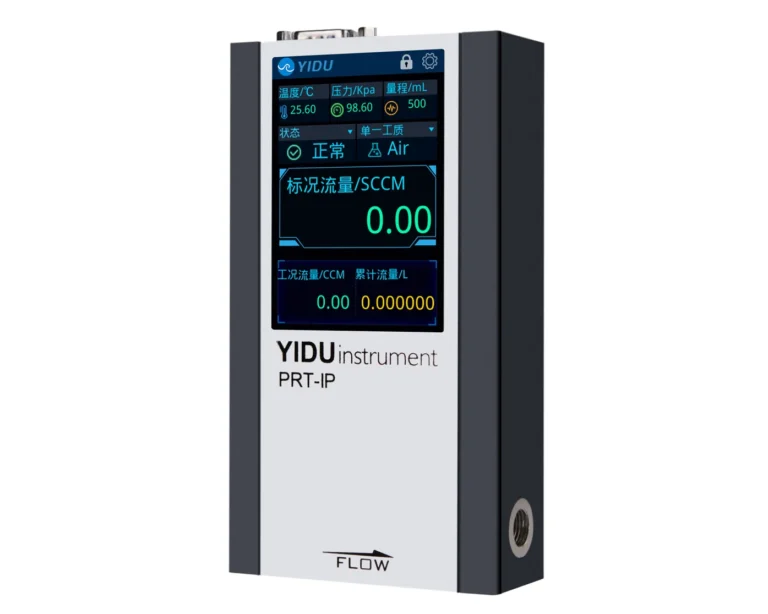

The S series laminar mass gas flow meter is designed to measure the flow rate of process gases in real time. Thanks to its unique laminar differential technology and original key algorithms, as well as built-in high-precision real-time pressure and temperature sensor compensation, the product features high accuracy, high repeatability, low zero drift, and low temperature and pressure drifts. The powerful touchscreen display shows the current pressure, temperature, working flow rate, standard flow rate, and integral flow rate. It is possible to switch between different gases using the touchscreen without having to enter conversion factors.
Features
Principle Introduction
Laminar Mass Flow Meter Utilizing patented internally-compensated laminar differential pressure technology, this instrument integrates pressure and temperature sensors to fully compensate for discrepancies between volumetric and mass flow rates induced by thermal/pressure variations. It delivers rapid, precise real-time measurements of five critical parame- ters: : real-time temperature, pressure, volumetric flow, mass flow, and totalized flow， Should you require accurate and rapid gas flow measurement, leak rate detection, or a reference meter for measurement transfer and calibration applications, YIDU flow meters provide an optimal solution.
Application
| Model | PIPG-S101 PIPG-S201 |
PIPG-S102 PIPG-S202 |
PIPG-S120 PIPG-S220 |
PIPG-S150 PIPG-S250 |
| Flow range | 0.5, 1, 2, 5, 10, 20 SCCM | 50, 100, 200, 500, 1000, 2000 SCCM | 5, 10, 20, 50, 100, 200 SLPM | 500, 1000, 1500, 2000, 3000, 4000, 5000 SLPM |
| Accuracy | S100: ±1.0% Rd (20%–100% F.S.) or ±0.2% F.S. (≤20% range) S200: ±0.5% Rd (20%–100% F.S.) or ±0.1% F.S. (≤20% range) S100-WR: ±1.0% Rd (10%–100% F.S.) or ±0.1% F.S. (≤10% range) |
|||
| Repeatability | S100: ±0.2% F.S. S200: ±0.1% F.S. S100-WR: ±0.2% F.S. |
|||
| Pressure drift | Zero: ≤±0.2% F.S./100 kPa; Span: ≤±0.2% F.S./100 kPa (Benchmark 100 kPaA) |
|||
| Temperature drift | Zero: ≤±0.02% F.S./°C; Span: ≤±0.02% F.S./°C (Benchmark 25°C) |
|||
| Operating range | 1%–100% F.S. (up to 120% F.S. maximum) | |||
| Fluid temperature range | -20℃–60℃ | |||
| Ambient temperature range | -20℃–50℃ | |||
| Operating humidity range | 0%–98% (non-condensing) | |||
| Full-scale pressure drop | 4 kPa | |||
| Maximum operating pressure | 1.5 MPa | |||
| Operating pressure range | 60 kPa ~ 1 MPa | |||
| Power supply voltage | 24 V ±20% | |||
| Power consumption current | < 150 mA (< 3 W) | |||
| Installation | None (any orientation) | |||
| Wetted materials | Stainless steel SUS316L | |||
| Display type | LCD touch screen | |||
| Commumication mode | Standard: Digital: RS485 Optional: PROFIBUS, Analog: 0–5 V / 4–20 mA |
|||
You can request the necessary certificates, documentation, instructions and user guide for YIDU S using the special form.
